• Model NO.：LSJ120,35
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Layer：Single Layer+UV Coating
• Extruder Model：Sj-120,35
• Product Width：2100mm
• Product Thickness：4-6-8-10mm
• Driving Motor：185kw
• Capacity：200-350kg,H
• Transport Package：Wooden Case or Wood Pallets
• Specification：europe standard
• Trademark：leader machinery
• Origin：China, Mainland
• HS Code：8477209000
• Production Capacity：50 Sets, Year

Basic Info.

Model NO. LSJ120/35 Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Layer Single Layer+UV Coating Extruder Model Sj-120/35 Product Width 2100mm Product Thickness 4-6-8-10mm Driving Motor 185kw Capacity 200-350kg/H Transport Package Wooden Case or Wood Pallets Specification europe standard Trademark leader machinery Origin China, Mainland HS Code 8477209000 Production Capacity 50 Sets/ Year

Product Description

UV Coating Protected Plastic PC Hollow Grid Sheet Extrusion Equipment
This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow
sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.Characteristics of vacuum calibrator:

1. High quality mould steel or high strength Al-Mg Alloy
2. Special harden treatment and non-sticky coating on the surface.
3. Independently controlled vacuumize device and temperature controlling system.
4. Consist of vacuum sealing edge device.T
The technology of hollow sheet die with co-extrusion feed block to get UV+PC+UV, UV+PC hollow sheet can save 30% UV on the surface.

Application:
1) Sunshades for stadium and bus shelters
2) Lighting for corridors, passages and subway entries
3) Bank ATMs
4) Sound and heat insulation for construction such as: houses
5) Canopies for agriculture greenhouse, zoos
6) PC sheets mainly used for building and decorating materials, greenhouse material, telephone booth, insulation shield express ways & highways
7) Office building, hotels, villas, stadium, schools, bus stop, terminals, hospitals, subway entry and exit doors, etc.

Hollow Sheets Specifications:
Sheet width: 600mm-700mm-1050mm- 1220mm-2100mm-2300mm,
Sheet thickness is 4mm-6mm-8mm-10mm-12mm.
Sheet walls: double walls , three walls, 4 walls and more etc.

Main technical data :

Main extruder screw diameter	120mm
L/D	35:1
Main motor power	185kw
Co-extruder screw diameter	45mm
L/D	30:1
Motor power	15kw
Sheet thickness range	4-30mm
Sheet width	2100mm
Capacity	400kg/h
Actual running power consumption	200kw

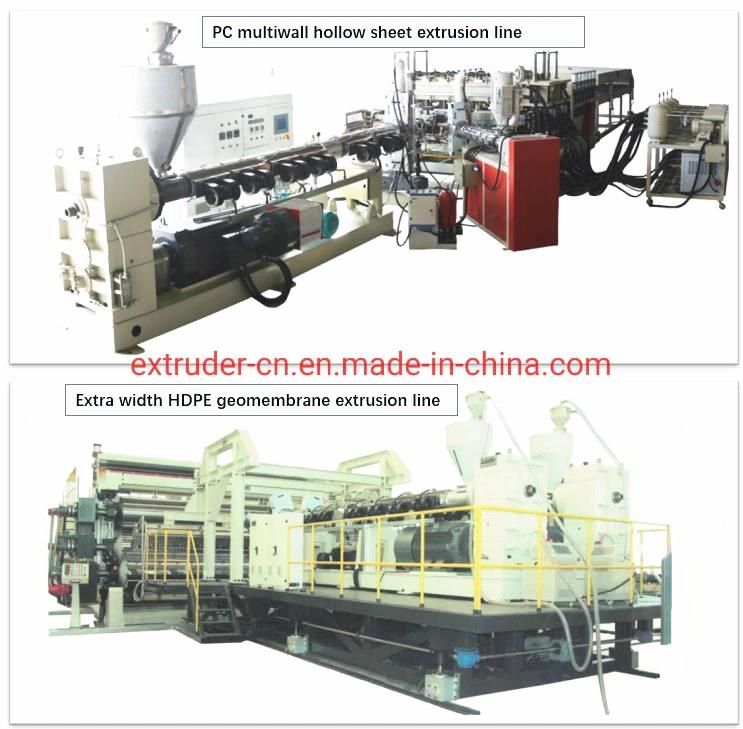

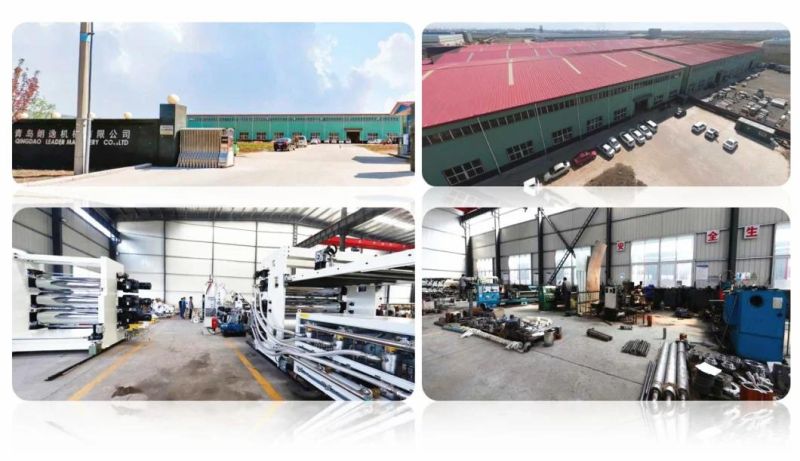

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:

PART 6 COMPANY CERTIFICATIONS:



PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
