• Model NO.：LSJ-120,35+45,30
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Sheet Size：2100mm Width*8-10mm Thickness
• Application：Sunshine Panel Roofing or Construction etc
• Extruder Model：Sj120,35+45,30
• T-Die Head：Jc-Times Brand
• Max Capacity：350kg,H
• Total Installed Power：510kw
• Guaranteed Time：12 Months
• Transportation：2 Sets of 40gp Containers
• Transport Package：Wooden Pallet,Cases with Streching Films
• Specification：LMSB-120,35
• Trademark：leader machinery
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：25 Sets,Per Year

Item
Description
Data
1
SJ120/35 Single screw extruder with stainless steel hopper
1 set
2
Screen exchanging unit for PC
1 set
3
Melting gear pump for PC
1 set
4
SJ45/30 Single screw extruder for UV layer
1 set
5
Melting gear pump for uv
1 set
6
T-type Die head (2100mm*4-6mm)
1 set
7
Vacuum calibrating board
1 set
8
cooling table
1 set
9
The first haul off machine with 12 rollers
1 set
10
edge cutting device
1 set
11
5000mm oven
1 set
12
Corona treating unit
1 set
13
up and down sides, double position film laminating device
1 set
14
The second haul off machine
1 set
15
Tranverse cutting machine (length-settled)
1 set
16
material conveyor+6000mm discharge table
1 set
17
eletrical cabinet
1 set

other accessory machine parts

18500kg mixing and drying machine 1 set 19AC-25 water chiller 1 set 2015kw air compressor 1 set 21sheet crusher  1 set

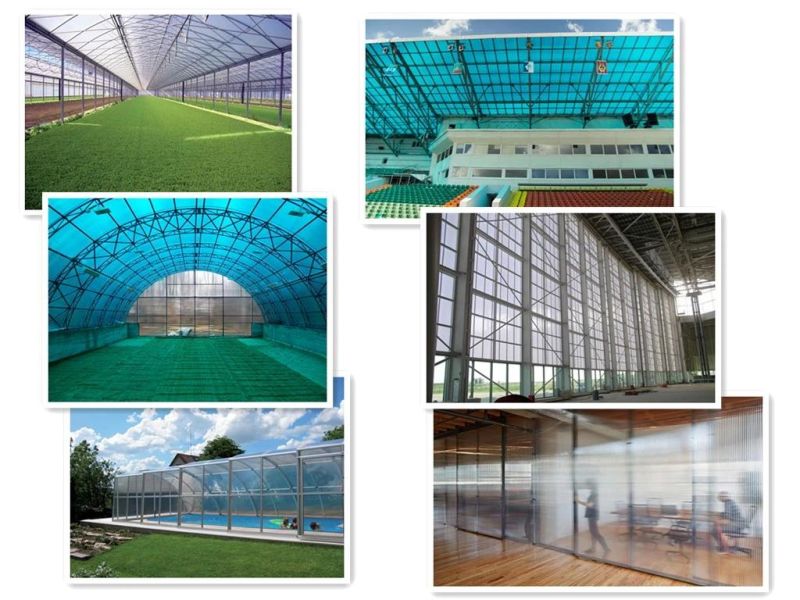

PART 3 SHEET APPLICATIONS:
PC hollow sheet is widely used in construction sunroof in buildings/halls/shopping center/stadium/public places of entertainment and public facility; Ring shield of bus station/garages/pergolas/corridors; noise barriers for highways and urban elevated road


 PART 4 PAYMENT, DELIVERY AND AFTER SALE SERVICES1Payment terms40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable2Delivery time100 days after receipt of prepayment3Packing methodWooden cases/pallets with stretching films4Guaranteed time18 months for mechanical parts, 12 months for electrical parts5After sale serviceSend 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable6ContactMs Lilly Zhou


PART 5 MORE MACHINE PICTURES:

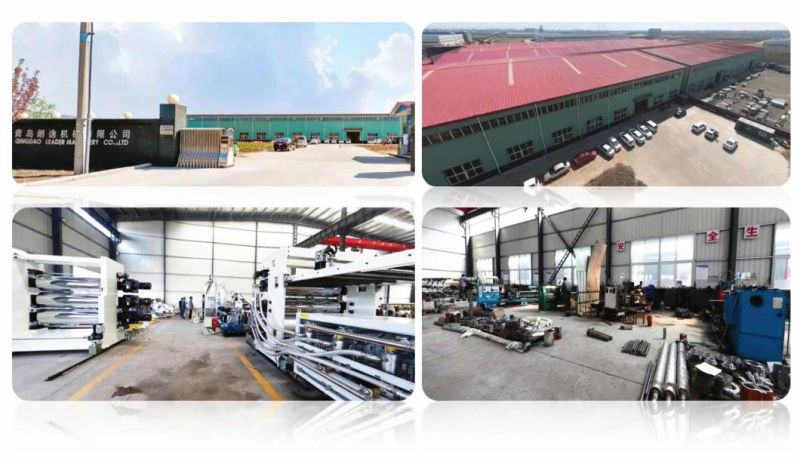

 PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:

PART 6 COMPANY CERTIFICATIONS:

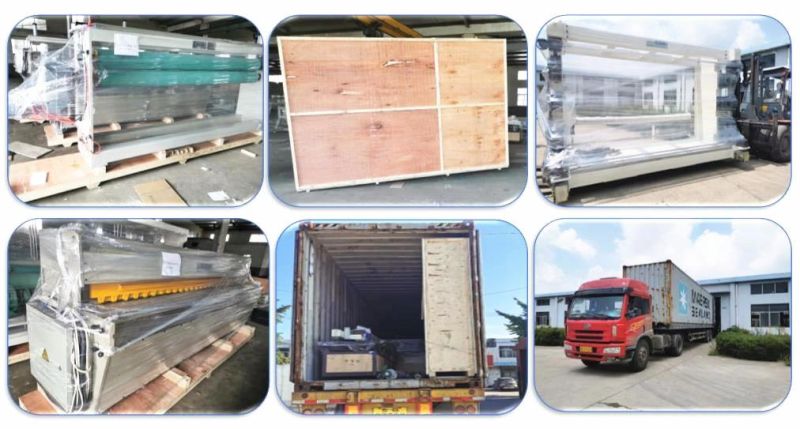

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.

PART 8 COMPANY OVERSEA SHOWS

OUR COOPERATED SUPPLIER LIST

OTHER RELATED MACHINES

1. PET sheet extrusion machine:
2. PP/PS sheet extrusion machine:
3. ABS/HIPS sheet extrusion machine:
4. ABS/PMMA sheet extrusion machine:
5. PE sheet geomembrane/geocell sheet extrusion machine:
6. PC/GPPS/PMMA sheet extrusion machine:
7. PC hollow grid sheet/sunshine roofing panel extrusion line
8. PP hollow profile sheet extrusion line
9. PVC sheet/edge banding sheet/marble sheet machine:
10. PVC free foam/celuka foam board extrusion line
11. EVA car interior decoration sheet extrusion line
12. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
