3 Layers Cast Film Machine for Laboratory

Dongguan Xihua Machinery Technology Co., Ltd.
  • After-sales Service：a Lifetime of Service
  • Warranty：3 Years
  • Material Processed：PE
  • Roller：Three
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：XH-432
  • Certification：CE, ISO9001:2008
  • Customized：Customized
  • Condition：New
  • Applicable Materials：PP, PE, PVC, PS, Pet, etc.
  • Screw Diameters：ABA 25, 20, 25mm
  • Screw Rotating Speed：0-95 Rpm (Adjustable)
  • Screw L/D Ratio：33:1
  • Temperature Range：Room Temperature - 300ºC
  • Film Thickness：0.02-1mm
  • Film Width：50--250mm (Customized)
  • Die Width：400mm
  • Working Voltage：380V,50Hz,3 Phases or Customerized
  • Transport Package：Wooden Case
  • Trademark：Xihua
  • Origin：China

Description

Specifictions of Lab Three-layers cast film machineApplicable materialsPP, PE, PVC, PS, PET, etc.Screw diametersABA 25,20,25mmScrew rotating speed0-95 rpm (adjustable)Screw L/D ratio33:1Temperature rangeRoom temperature - 300ºC Film thickness0.02-1mmFilm width50--250mm (customized)Die width400mmWorking voltage380V/50Hz/3 phases or CustomerizedMotor power2.2 KWTotal Power7 KWControl modeSIEMENS PLC Control

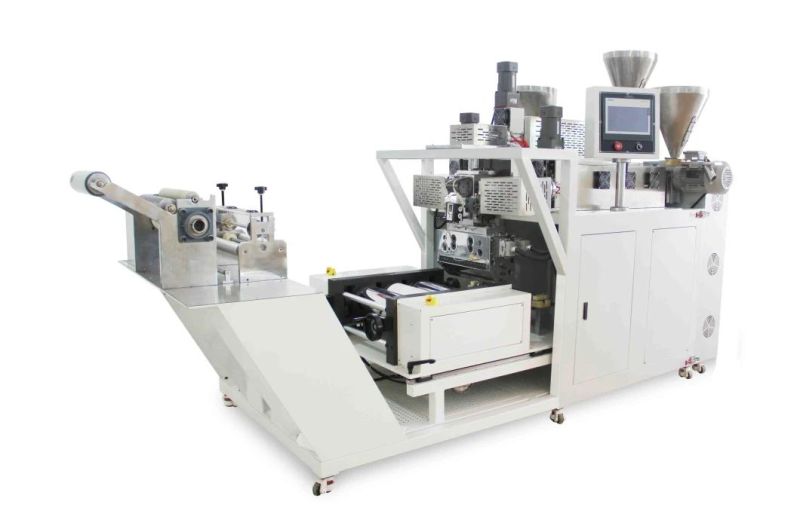

3 Layers Cast Film Machine for Laboratory




Main features

1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant;
2) Using brand melt pressure and temperature sensor to ensure high accurage data
3) Cantilever roll structure making it easy to lead the film and be operated;

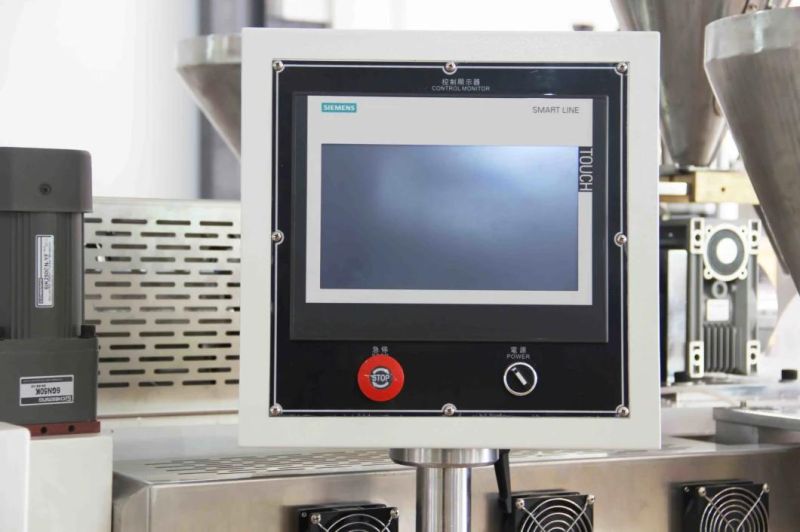

4) dopting PLC control system and friendly operation interface to easily operate;
5) On-line testing and displaying melt pressure, temperature and other key data;
6) Emergency stops and devices to protect safety of the operator;


Details images

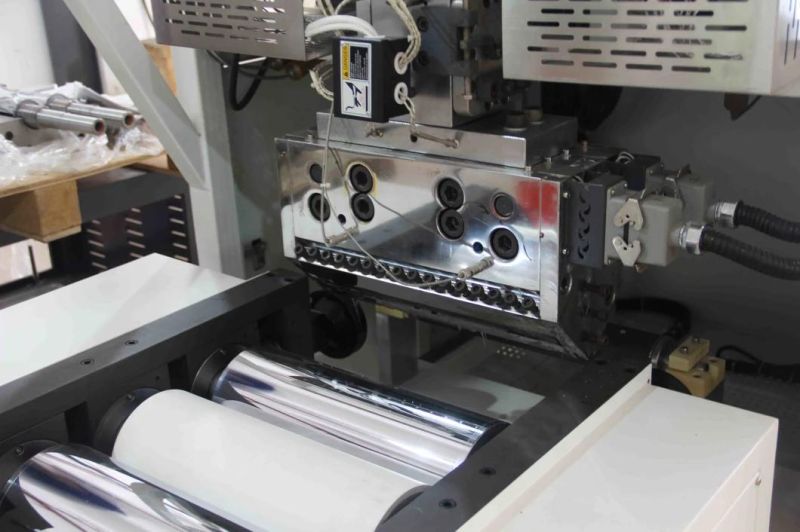

 3 Layers Cast Film Machine for Laboratory3 Layers Cast Film Machine for Laboratory

 3 Layers Cast Film Machine for Laboratory3 Layers Cast Film Machine for Laboratory
