• Model NO.：Heavy Shredder
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Wood Pallet
• Trademark：JWELL
• Origin：China
• HS Code：8474209000
• Production Capacity：100pieces

Basic Info.

Model NO. Heavy Shredder Computerized Non-Computerized Certification CE, ISO9001:2008 Transport Package Wood Pallet Trademark JWELL Origin China HS Code 8474209000 Production Capacity 100pieces

Product Description

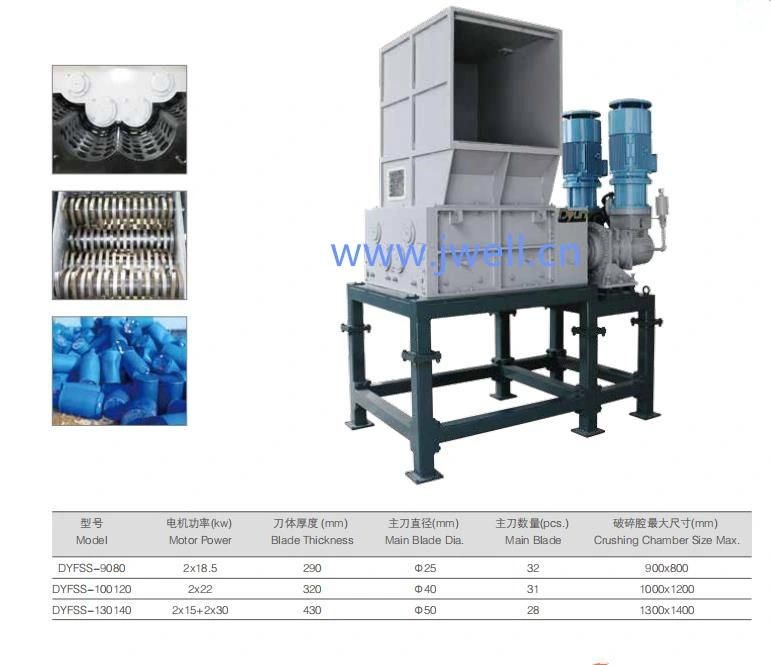

DYFSS Series Four-shaft Shredder

Four-shaft series shredders are of multifunction and versatility. With standardized and modular design, shredder of this series has an advantage of good interchangeability between spare parts. The auxiliary knife is refined by die forging, while the main knife, made of special alloy steel by a special process, is of good wearability and high intensity. The shredder is driven by intermediate gear transmission, forming differential relation- ship. Shredders of this series are applicable to shred plastic barrels, plastic frames, woven bags, circuit board and paper box etc., and have advantages of controllable discharging size, high-efficiency, low rotate speed and low noise.

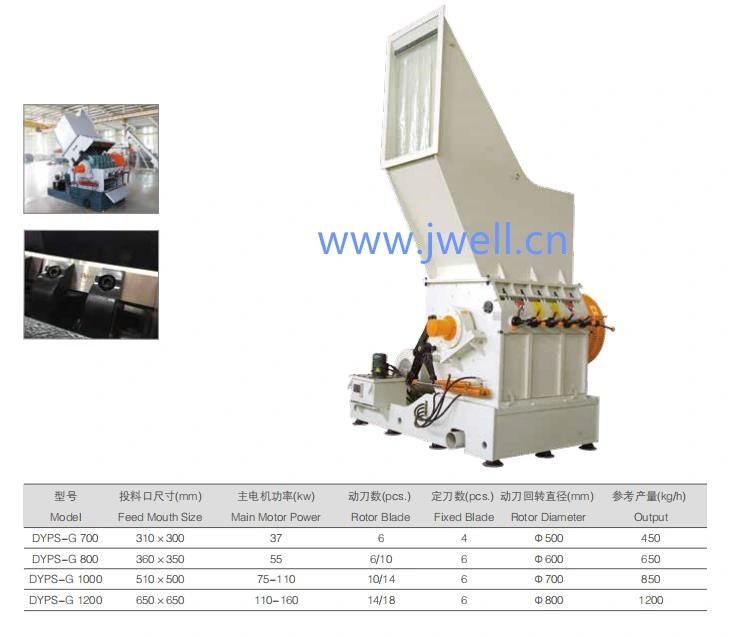

DYPS-G Series Heavy Pipe Crusher
DYPS-G series heavy pipe crusher can crush middle diameter pipe directly without shredding in advance.
This series crusher inlet is specially designed for plastic pipe, the pipe and the crusher rotor form a certain angle to reach the best crushing effect, crushed pipes and profiles up to 6 meters in length.
The crusher chamber has thee fixed knives for changing the first cutting point of the to-be-crushed material. This kind construction can reduce   the impact force for high strength and large volume of material and avoid the possibility of material blockage. Special steel and a strong      welding process make the high product quality. The special design of the tool holder and the main shaft can meet the requirements of     shredding various types of plastic pipes, profiles, films, sheets and large solid materials. It is economical equipment wide versatility, practicality, easy operation and durability.

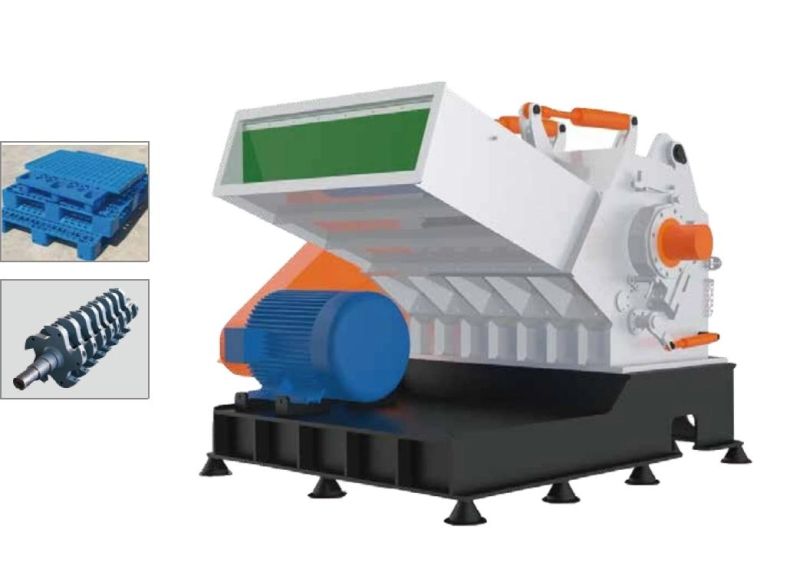

DYPS-T Series Tray/Plate Special Crusher

Tray and plate special crusher, is mainly for crushing wide but thin plastic products. It has a dedicated main shaft and unique feeding hopper, which is easy to feed trays and wide plate products in. Wide products do not need to be cut, which spares the recycling process, saves energy, reduces labor intensity and costs and m improve the efficiency of pulverization and recycling.

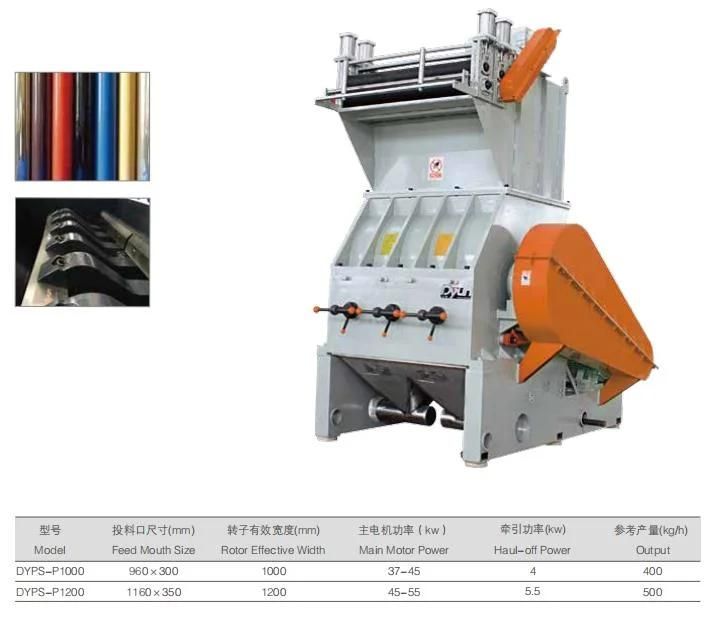

DYPS-P Series Sheet Special Crusher

DYPS-P series crusher solves the problem of recycling and pulverizing sheet, sheet and foamed coil with a wide PP/ABS/PMMA thickness between 0.2 and 3mm. This crusher, different from other crusher, has one a set of traction devices, two sets of pressure rollers, air pressure for opening and closing, and its linear velocity can reach 30m/min, which improves the production efficiency. The main shaft is made of high-quality steel and checked by dynamic and static balance. "V" shape cutting technology and water cooling system in the box avoids overheating and sticking of the material in the crusher chamber. According to the customer's requirements, we provides a matching aggregate suction unit and dust separation device, which is more convenient to use.

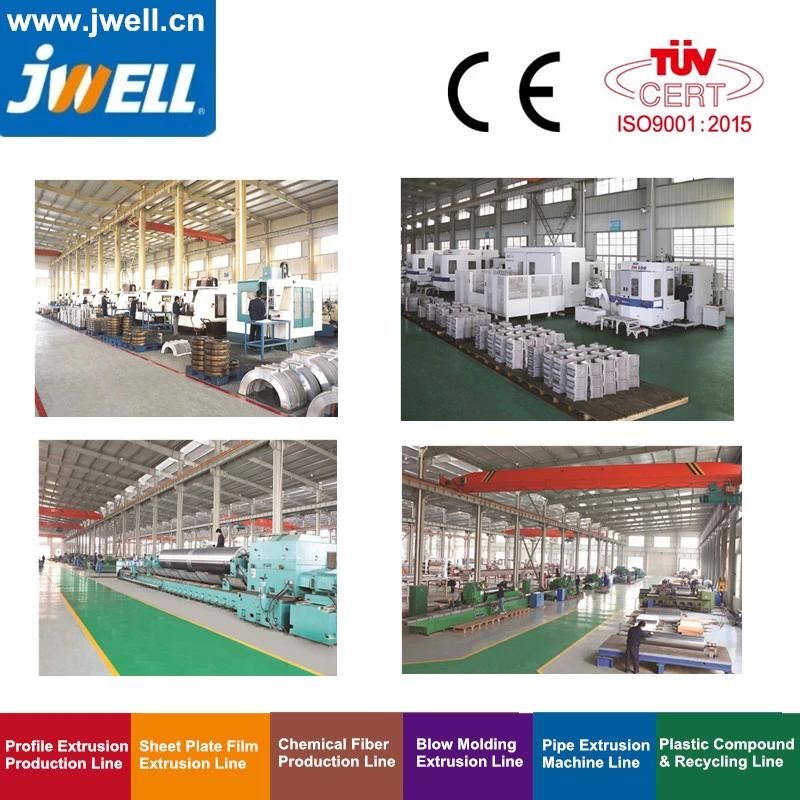

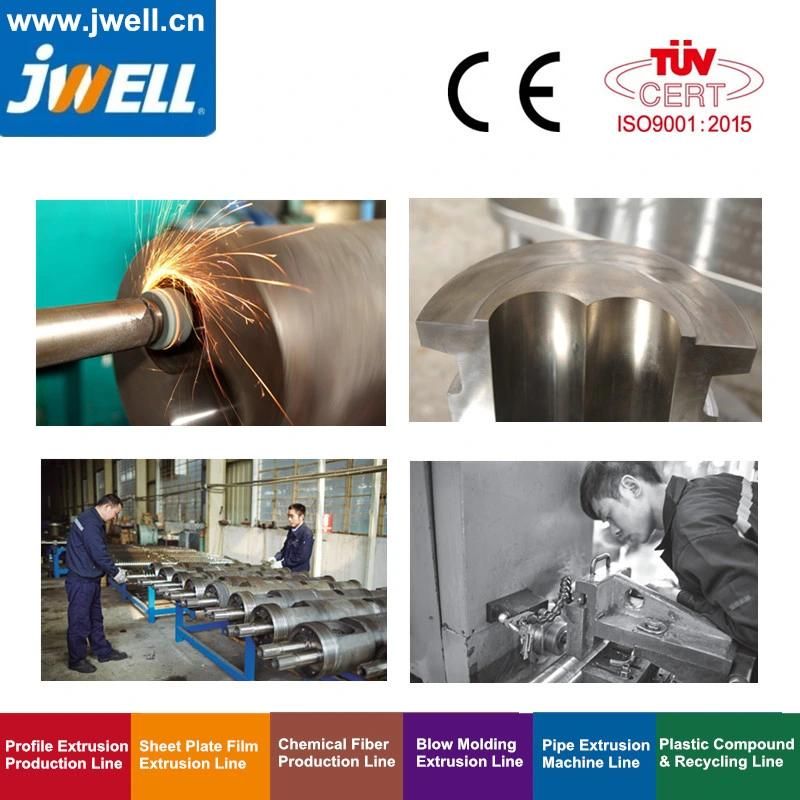

CNC Workshop
