Plastic Extruder High Speed Pipe Extruder
GPM Machinery (Shanghai) Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PE
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Multi-Screw
Base Info
- Model NO.：SJ
- Engagement System：Full Intermeshing
- Screw Channel Structure：Non Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Application：Extrusion
- Raw Material：HDPE,LDPE,PP,PP-R,PE-Rt,Po
- Function：Highly Automation,Steady Product
- Voltage：380V 50Hz 3phase (Customized
- Transport Package：PE Film Packaging
- Specification：according to customer requirements
- Trademark：GPM
- Origin：Shanghai
- HS Code：8477209000
- Production Capacity：500set,Year
Description
Technical specification of Plastic Extruder High Speed Pipe ExtruderModel The specification of pipe(mm) Auxiliary extruder Max.output(kg/h) Power of main motor(kw) GWG63-PE Φ20~Φ63 GW65/38 250-300 75/90 GWG110-PE Φ63~Φ110 GW65/38 250-300 90 GWG250-PE Φ75~Φ250 GW75/38 500-550 185 GWG450-PE Φ160~Φ450 GW90/38 700-750 250 GWG630-PE Φ315~Φ630 GW120/33 900-1100 280 GWG800-PE Φ400~Φ800 GW150/33 1000-1200 315 GWG1000-PE Φ630~Φ1000 GW150/33 1000-1200 315 GWG1200-PE Φ800~Φ1200 GW120/33,GW90/38 1500-1700 280/220

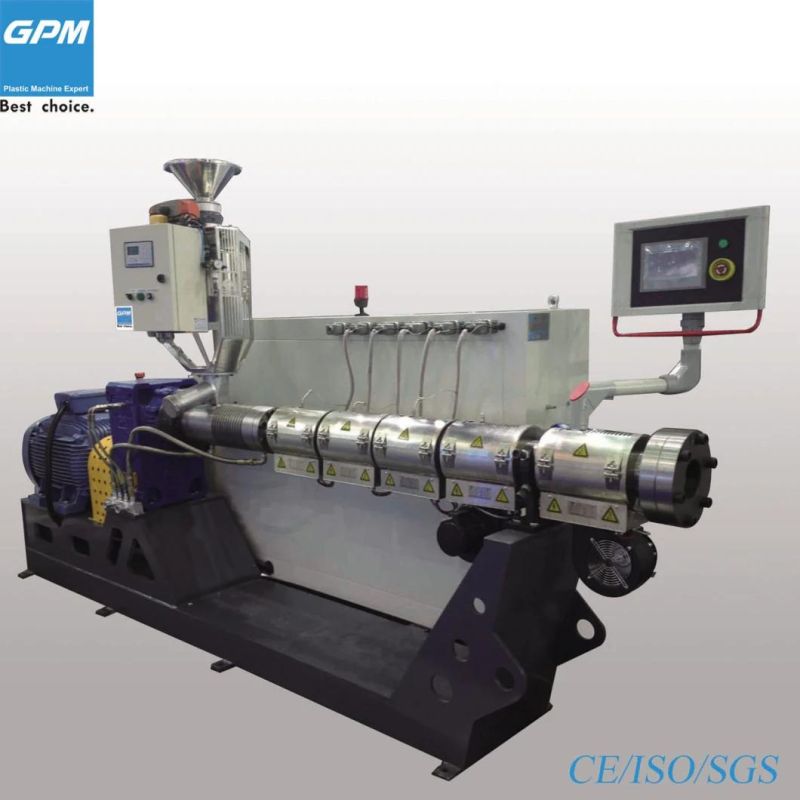

Picture Display of Plastic Extruder High Speed Pipe Extruder

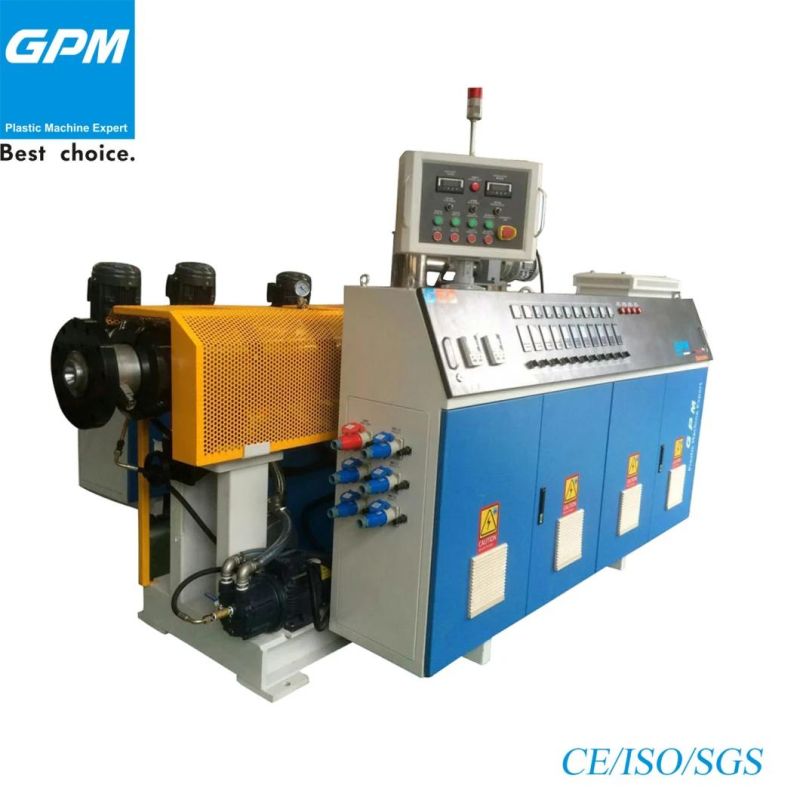

Picture Display of Plastic Extruder High Speed Pipe Extruder
