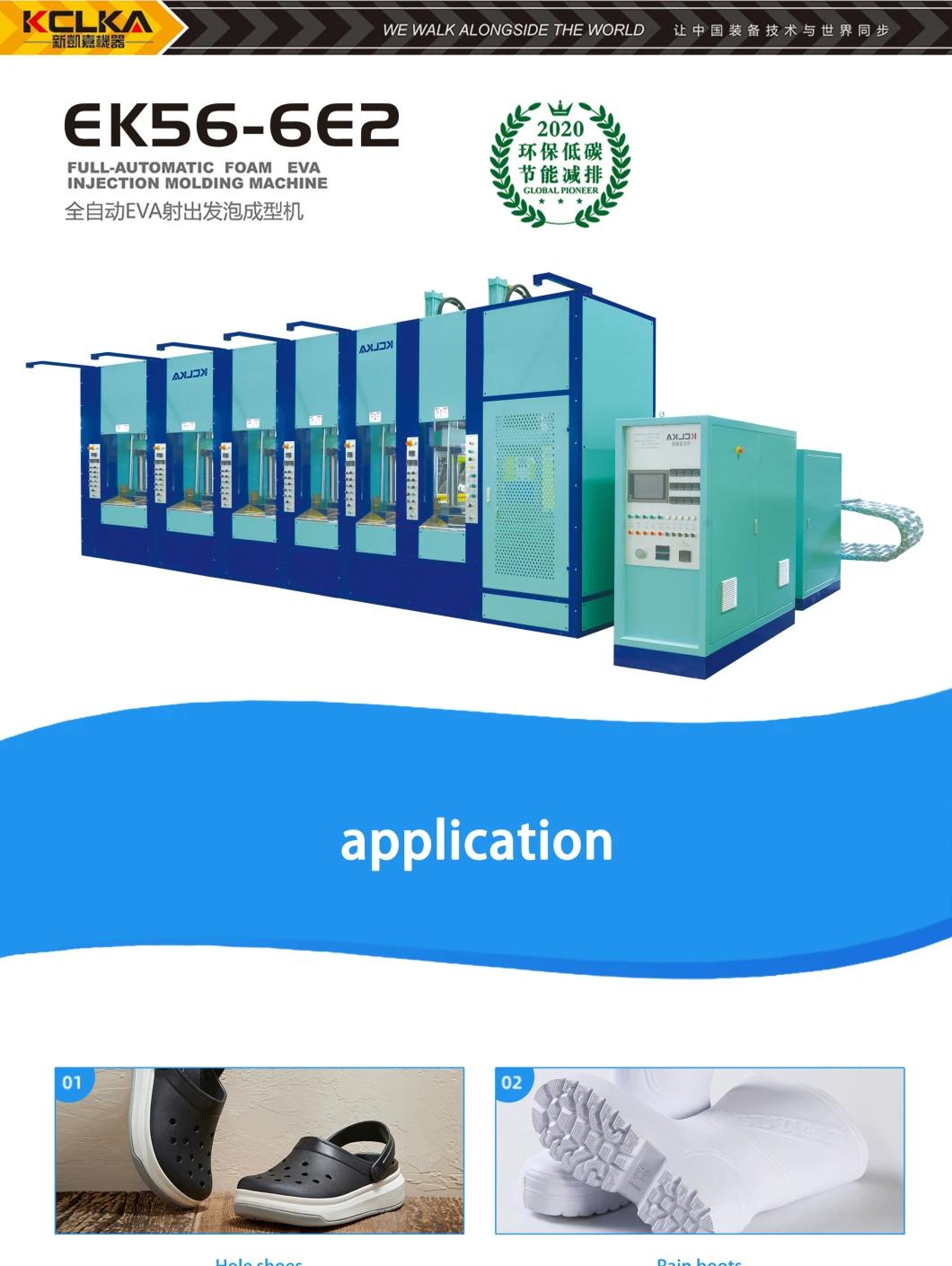

• Model NO.：EK56-6E2
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Productivity：13824 Pairs Per 24hours
• Transport Package：Container
• Specification：ISO, CE
• Trademark：KCLKA
• Origin：Fujian, Jinjiang
• HS Code：84771090
• Production Capacity：20 Sets, Month

Basic Info.

Model NO. EK56-6E2 Computerized Computerized Certification CE, ISO9001:2008 Productivity 13824 Pairs Per 24hours Transport Package Container Specification ISO, CE Trademark KCLKA Origin Fujian, Jinjiang HS Code 84771090 Production Capacity 20 Sets/ Month

Product Description

Item	Unit	EK56-6E2
Work Station	station	6
Clamping Force	ton	100
Mold Plate Size	mm	300*500
Mold Height	mm	100-350
Mold-opening Stroke	mm	350
Injection System
Injector		3
Diameter of Screw	mm	60
Injection Cap(Max)	cm³	920
Injection Pressure	kg/cm²	0-130
Injection  Speed	cm/sec	0-10
Rotating Speed of Screw	r.p.m	0-190
Temperature Control	section	4
Electricity Consumption
Heater Barrel	kw	9.8*3
Heating Plate	kw	48
Hydraulic System	kw	76.7
Vacuum Pump	hp	1.5
Cooling Fan of Barrel	hp	1
Total Electricity	kw	156.5
Oil Tank Size	L	800
Machine Weight	kg	21000


Note:
1.Its product range includes EVA mid-soles,rainboots,slippers,sandals, clogs,sport protectors and various kinds of shoes and shoe accessories and depends on the EVA shoe mould.

2.The clamping force can be increased from 150 to 210 tons, according to your requirement.

3.The foam EVA injection molding machine is fully hydraulic and automatic operation except taking out product.

4.It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production.

Character:
1.Low operation height,Operation height in accord with human engineering

2.Extra height opening stroke
Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and

3.available for 2plates mould,Mould thickness adjusting mechanism
Mould adjusting scope: 100-200MM

4.Rapid mould opening ,Act by toggle mechanism which opens the mould rapidly

5.Speedy injector movement
Driven by linear-track, allowing speedy moving and precise positioning,Energy saving design

6.No need water circulation for mould station

7.Space saving design,Put oil tank together with injection base, which makes the structure compact and saves more space.




Term:

All quotations are without value-added tax.
Delivery date:Within 60 days After receiving the 30% earnest money
Payment term: Advance payment at order 30%, 70% before shipment
Delivery State: Machines were taken apart and packed in suitable package that fits container shipping

For the machine experiment and installation, our technician will be sent to your
factory. And you are requested to afford the cost of their trip and payment .
Also  Our technician will manage all the machine things for you and at the same time   train  your  workers on  how  to use  and maintain the machine.
Guarantee Time: One-year warranty and lifelong service.  During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.
