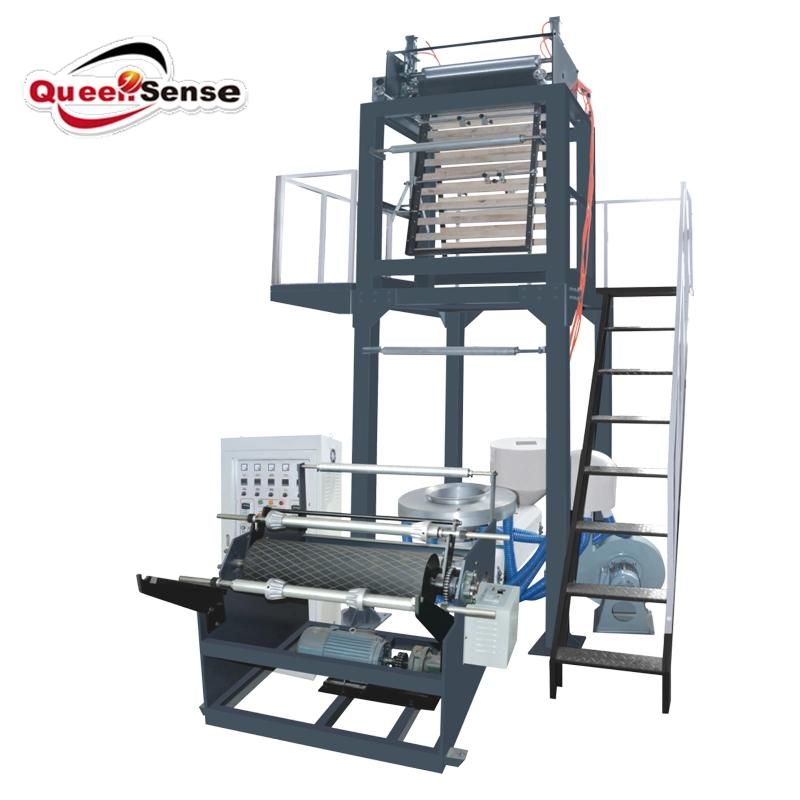

QS-A50 600mm LDPE Blown Film Extrusion LDPE HDPE Film Blowing Machine Mono Layer Film ...
Ruian Queensense Machine Co., Ltd.- After-sales Service：Provide
- Warranty：1 Year
- Type：PE Film Blowing Machine
- Raw Material：HDPE
- Maximum Folding Width of Film：600mm
- Screw Diameter：50mm
Base Info
- Model NO.：QS-A50
- Automation：Non-Automatic
- Computerized：Computerized
- Machine Weight：2t
- Certification：CE
- Output：50kg,H
- Film Width：100-600mm
- Film Thickness：0.008-0.1mm
- Main Motor：Made in China, Siemens
- Inverter：Pioneer ,Delta,ABB
- Die Head：60mm,120mm
- Roller Size：700mm
- Transport Package：Wooden Box
- Specification：CE
- Trademark：QUEENSENSE
- Origin：China
- HS Code：8477309000
- Production Capacity：50-60kg,H
Description
Basic Info.
Model NO. QS-A50 Automation Non-Automatic Computerized Computerized Machine Weight 2t Certification CE Output 50kg/H Film Width 100-600mm Film Thickness 0.008-0.1mm Main Motor Made in China/ Siemens Inverter Pioneer /Delta/ABB Die Head 60mm/120mm Roller Size 700mm Transport Package Wooden Box Specification CE Trademark QUEENSENSE Origin China HS Code 8477309000 Production Capacity 50-60kg/HProduct Description
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Optional equipment:
1). Auto loader
2). Air compressor
3). Special die
4). Die rotary device
5). Double sides rewinder
6). Up and down
| Model | A50 | A55 | A65 | A65-1 |
| Diameter of screw | φ50 | φ55 | φ65 | φ65 |
| Rcduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Single-face Thickness of film(mm) | 0.008-0.10 | 0.008-0.10 | 0.008-0.10 | 0.008-0.10 |
Max.Extrusion(Kg/h) | 50 | 60 | 70 | 80 |
| L/D | 30:1 | 30:1 | 30:1 | 30:1 |
| Power of main moto(kw) | 15 | 18.5 | 22 | 30 |
| Power of Tracion main moto(kw) | 1.5 | 1.5 | 1.5 | 2.2 |
| Heating Power(kw) | 15 | 18 | 23 | 27 |
Outline diameter(L x W x H) (mm) | 4800 x 1900 x 4800 | 5500 x 2100 x 5000 | 6500 x 2300 x 5200 | 6500 x 2500 x 5500 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
