PVC/WPC Wall Panel Profile Extrusion Machine

Qingdao Tongsan Plastic Machinery Co., Ltd.
  • Type:Profile Extruder
  • Plastic Processed:PVC
  • Product Type:Profile Extrusion Molding Machine
  • Feeding Mode:One Feed
  • Assembly Structure:Integral Type Extruder
  • Screw:Twin-Screw

Base Info

  • Model NO.:SJSZ 65,132
  • Engagement System:Full Intermeshing
  • Screw Channel Structure:Deep Screw
  • Exhaust:Don′t Exhaust
  • Automation:Automatic
  • Computerized:Computerized
  • Output (Kg/H):250-300
  • Screw Diameter (mm):80
  • Twin Screw Type:Co-Rotating Conical Twin-Screw
  • Screw Speed (Rpm):1400 Rpm
  • Voltage:3p,30V,50Hz or as Local
  • Power (Kw):55
  • Motor Brand:Siemens
  • Main Electrical Component:ABB, Rkc, Omron, Shneider etc
  • Door Board Width:800-1200mm
  • Door Board Thickness:18-40mm
  • Transport Package:Wooden Packing
  • Specification:30m*2*2.5m
  • Trademark:Tongsan
  • Origin:Qingdao
  • HS Code:84772090
  • Production Capacity:300 Kg,H

Description

ItemMachine nameQuantity1Auto feeder1 set2Conical double screw extruder SJMS51/1051 set3die head and mold(Max.width=200mm)1 set4calibrating machine1 set5hual off machine1 set6cutting machine1 set7product stacker1 set8electric control cabinet1 set  PVC/WPC Wall Panel Profile Extrusion Machine

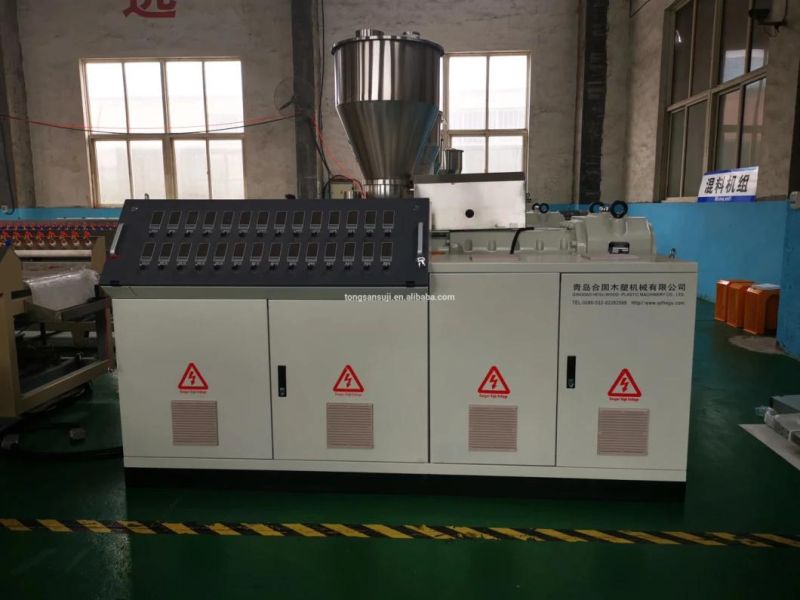

Extruder for PVC ceiling and wpc wall panel making machine

Conical double screw extruder specially designed for making PVC ceiling and wpc wall panel making machine

Model: SJMS51/105 model
Main power: 22KW
Capacity: 120-160 kg/h
Max. product width: 200mm
PVC/WPC Wall Panel Profile Extrusion Machine

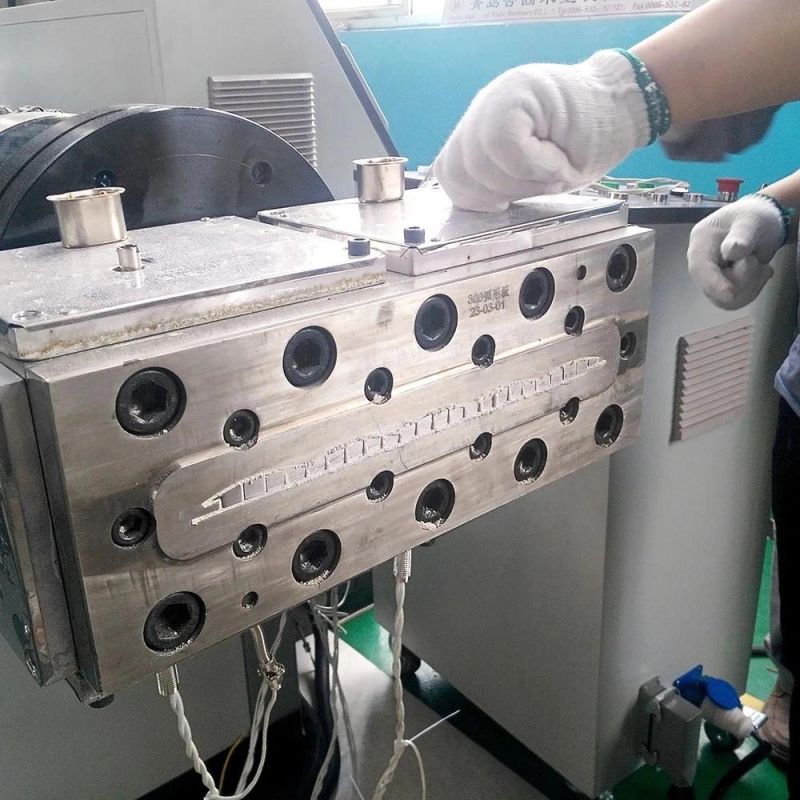

Die head and mold for PVC ceiling and wpc wall panel making machine


For making PVC ceiling and wpc wall panel making machine, it is necessary to increase the calibrator length to be 300mm*3 piece or 300*4 piece.

and the water cooling tank should be 2000mm*2 pcs or 3000mm*2 pcs
PVC/WPC Wall Panel Profile Extrusion Machine

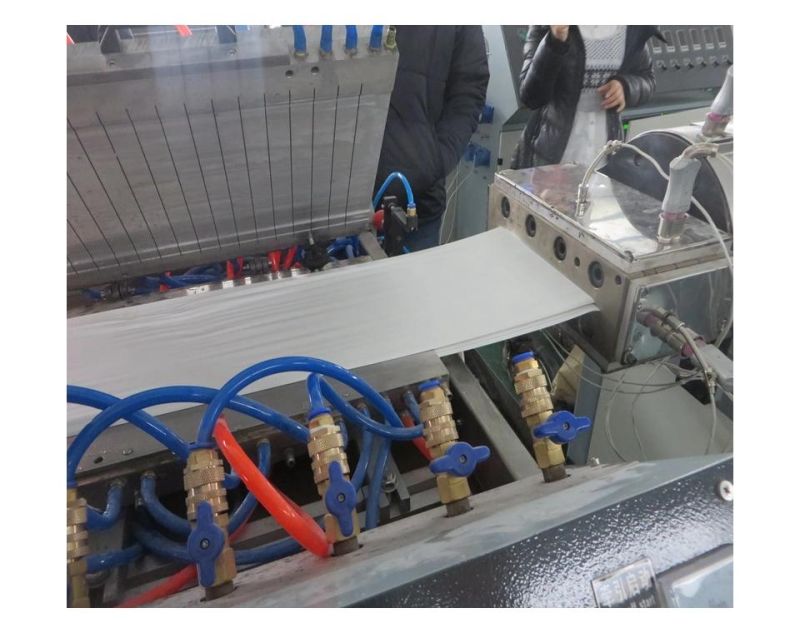

calibrating machine for PVC ceiling and wpc wall panel making machine

Length of table: 6meter customized

width of table: 1100mm, valiable inner width is 600mm

material of table: stainless steel

cooling method: water cooling and vacuum cooling.

vacuum pump: 7.5kw*1 sets,+5.5kw*2 sets

water pump: 2.2kw*1 set
PVC/WPC Wall Panel Profile Extrusion Machine

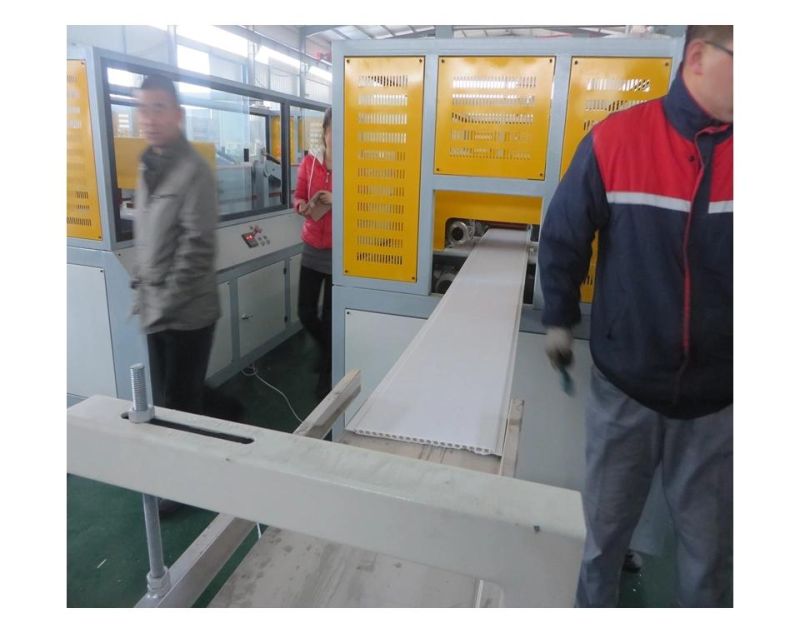

haul off machine for PVC ceiling and wpc wall panel making machine

Haul off type: double caterpillar

length of haul off: 2.4 meter

control of haul off: frequency control

motor : 1.5 kw

gearbox: double gearbox
PVC/WPC Wall Panel Profile Extrusion Machine

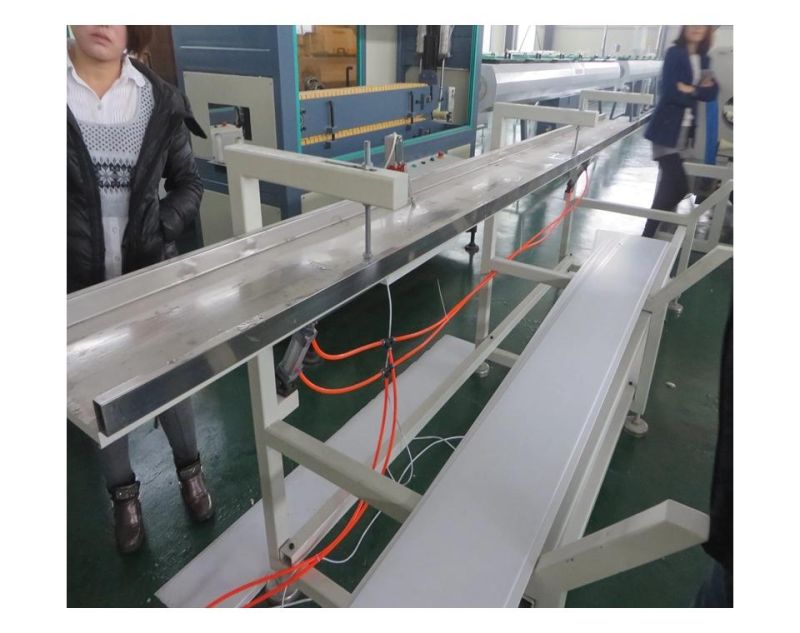

Cutting machine forPVC ceiling and wpc wall panel making machine

cutting method: automatic cutting

cutting control: PIC control

Length: fix length cutting

Electric control cabinet
ABB inverter
Siemens contractor
Omron temperature
Siemens PLC is optional

OUR SERVIES


Pre-sale services

1.Provide the free consultation of the machine

2.Provide the standard device and the flow chart

3.According to the clients' special requirement, offering the reasonable plan and free design helping  to select the machine

4.Welcome to visit our factory or the domestic clients' factory.

Services during the sales


1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.

2.Inspect the machine before leaving the factory.

3.Send our experienced workers and engineer to your factory for installing and adjusting all the machine

4.Train the first-line operator.

5.Provide the basic formula


After sale services

1.One year warranty

2.24 hours online service

3.Engineers available to service machinery overseas

4.Provide technical exchanging
