Automatic Plastic Butt Fusion Welding Machine
QINGDAO SUDA PLASTIC PIPE MACHINERY CO., LTD.- Product Type：PP Board
- Board Layers：PP Sheet Welding
- Screw No.：Multi-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：DZA4000
- Customized：Customized
- Condition：New
- Supply：Automatic Plastic Butt Fusion Welding Machine
- Dimension：5600X2450X1100mm
- Butt-Welding Processing Thickness：2-50mm
- Bending Processing Thickness：3-30mm
- Coiling Smallest Diameter：250mm or 350mm
- Range of Bending Angle：0-145°
- Applicable Material：PVC,PP,Pph,PVDF,PE
- Processing Length of Plastic Plate：4000mm
- Transport Package：Wooden Box or Strich Film
- Specification：ISO, CE, SGS
- Trademark：SUDA
- Origin：Qingdao
- HS Code：8515290000
- Production Capacity：500 Sets,Year
Description
Model
DZA3000
DZA4000
DZA5000
Machine Length(mm)
4800
5750
6750
Machine Width(mm)
2450
2450
2450
Machine Height(mm)
1800
1800
1800
Length of processing material(mm)
3000
4000
5000
Pressure of air supply
6-8kg.f/cm²
6-8kg.f/cm²
6-8kg.f/cm²
Machine Rated Voltage
380v
380v
380v
Rated electric current
50A
50A
50A
Rated Voltage of heating plate
220v
220v
220v
Heating plate power(horizontal weld/rolling function)
5kw
6KW
9KW
Heating plate power(bender function)
10kw
12KW
18KW
Power of Slip Roll Function Motor
0.75-1.1kw
2.2-4KW
4-5.5KW
Heating plate (Teflon coated T max=260ºC)
Up and down
Up and down
Up and down
Welding materials
HDPE/PP/PVDF/PVC/PPH/PPN
HDPE/PP/PVDF/PVC/PPH/PPN
HDPE/PP/PVDF/PVC/PPH/PPN
Welding area lighting
LED
LED
LED
Horizontal weld thickness
2mm - 30mm (2mm to 50mm)
2mm - 30mm (2mm to 50mm)
2mm - 30mm (2mm to 50mm)
PE(0.15N/mm ²)
PP(0.10N/mm ²)
PVDF(0.10N/mm ²)
Bender thickness
3mm-30mm
3mm-30mm
3mm-30mm
PE(0.15N/mm ²)
PP(0.10N/mm ²)
PVDF(0.10N/mm ²)
PVC(0.50N/mm²)
Rolling thickness
2mm-30mm(2mm to 50mm)
2mm-30mm(2mm to 50mm)
2mm-30mm(2mm to 50mm)
Circular minimum size(mm)
250
250
250
Spare parts pictures

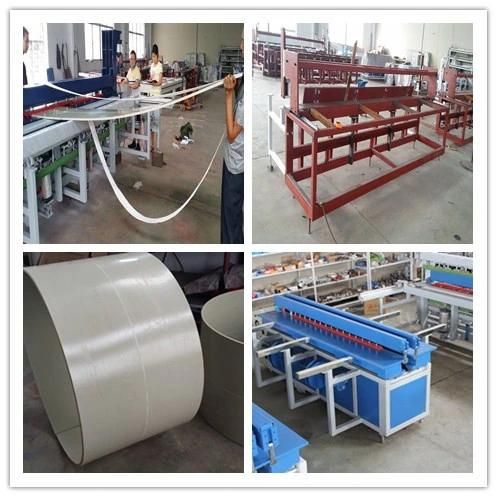

The products our machine can manufactures:
Our service:
1. Warranty for 24 months.
2. We accept OEM & ODM.
3. In some foreign countries, we have the distributor or agent to sell and warranty the machines, they will supply 24h*7 service
Why choose us?
1.Our equipment has strong competitiveness, our equipment already ahead, our device has the following characteristics:
The only updates the equipment for five generations development process
The only use of advanced technology from Germany
The only electrical integration automated system
The only design
The only practical new technology
2.Our Accessories mostly from Well-known enterprises.
3. Our factory is the first one to manufacture the automatic plastic butt welding machine in China and service this line about 15years old. And our factory have many skilful peration of workers and the stability of the scale of production.Now we already have 60% market shares in China. And we also have many outstanding engineers,they can help you design the machines you want.
