Water/Drinks Cup Plastic Flat Lid Making Machine

Ruian Polyprint Machinery Co., Limited
  • Certification：CE, ISO
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic
  • Working Speed：10-40 Cycles,Min
  • Stroke Range：30-440mm

Base Info

  • Model NO.：PPBG-650
  • Max. Forming Depth：80mm
  • Max. Forming Area：620X420mm
  • Total Power：28kw
  • Power Consumption：8 Kw,H
  • Transport Package：Wooden Pallet
  • Specification：CE; SGS
  • Trademark：Polyprint
  • Origin：China
  • HS Code：8477409000
  • Production Capacity：1200PCS,Hr

Description

Basic Info.

Model NO. PPBG-650 Max. Forming Depth 80mm Max. Forming Area 620X420mm Total Power 28kw Power Consumption 8 Kw/H Transport Package Wooden Pallet Specification CE; SGS Trademark Polyprint Origin China HS Code 8477409000 Production Capacity 1200PCS/Hr

Product Description

Feature:
1.PPBG-650 lid forming machine is a new type one that combines advantages of several types of main forming machines and also brings to more improvement and innovation.
2.With easy operation, calm running, convenient maintenance and stable function.
3.It can produce PLA, PVC,PS, PET etc. All kinds of covers.

Technical Parameter:
1Suitable ProductsDisposable plastic lids,egg trays,clamshell boxes,plates etc.
2Suitable MaterialsPET,PVC,PS PLA sheet
3Thickness Range0.1-1.5mm
4Stroke Range30-440mm
5Max. Forming Depth80mm
6Max. Forming Area620×420mm
7Industry Voltage 380V/50Hz (Three Phase, Four Wires)
8Total Power28kW
9Max. Speed10-40 Cycles/Min,with the robot max.25cycles/Min
10Max. Cutting Force30Ton/0.8Mpa
11Air Pressure0.5-0.7MPa
12Air Consumption≥ 0.3 m3/h
13Cooling WaterNormal Tap Water Recycle Cooling
14Noise<75Db
15Machine Dimension7300×1500×1820mm
16Machine Weight4300kg

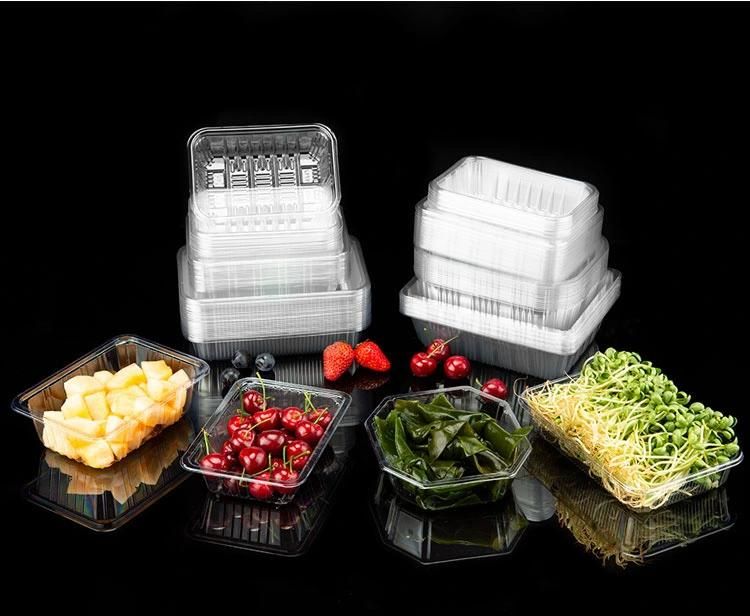

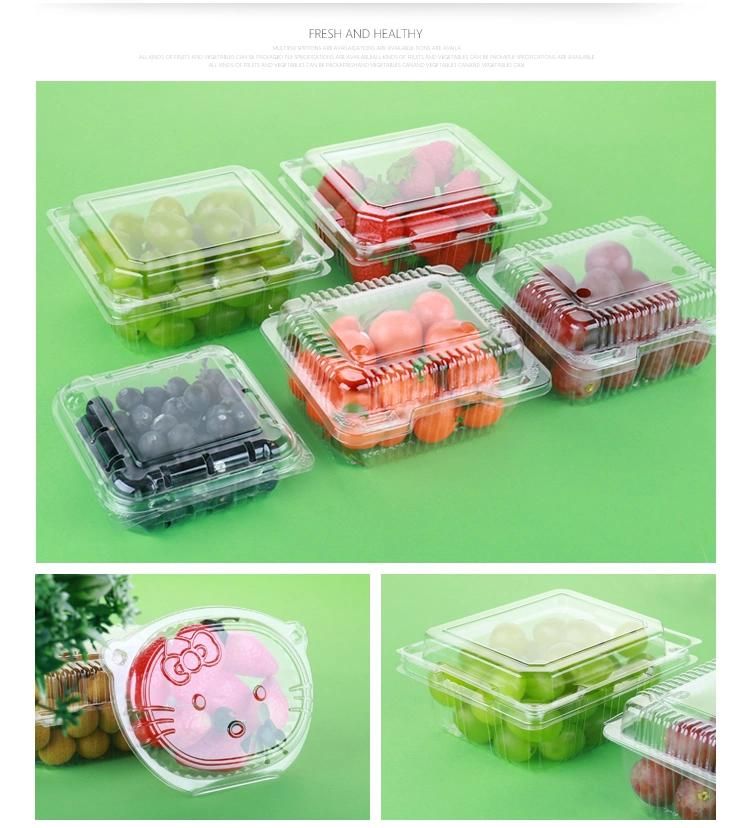

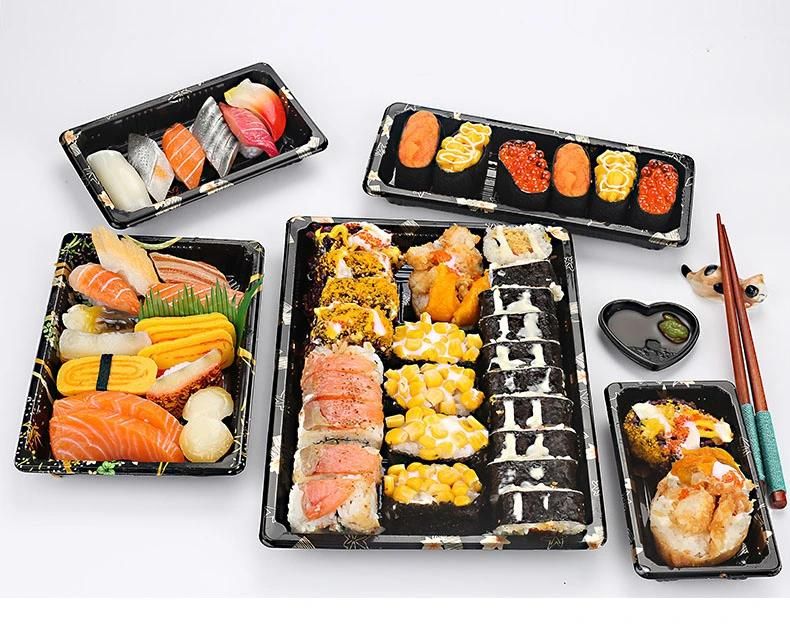

Sample Picture:
Water/Drinks Cup Plastic Flat Lid Making Machine
Water/Drinks Cup Plastic Flat Lid Making Machine
Water/Drinks Cup Plastic Flat Lid Making Machine

Our Services:
1.Warranty:1 year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2.Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3.Quotation: valid for 60 days.

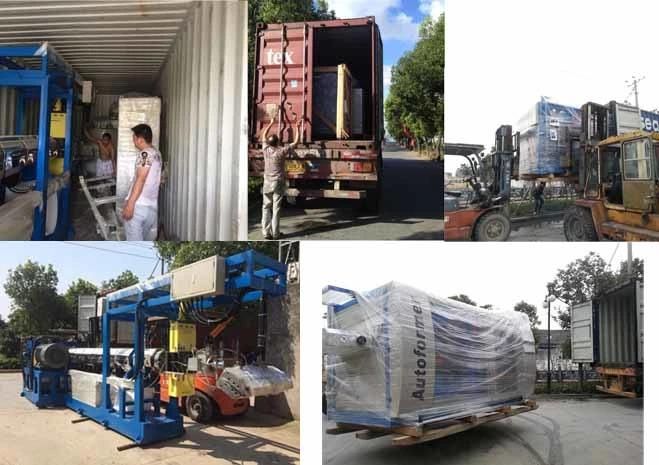

Packaging Shipping:
Water/Drinks Cup Plastic Flat Lid Making Machine

Company Information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
