Plastic Disposable Products Raw Material PP PS Sheet Extruding Machine
Ruian Polyprint Machinery Co., Limited- Type：Sheet Extruder
- Plastic Processed：PP, PS
- Product Type：Extrusion Line
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：PPSJ
- Engagement System：Non-Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Model：Ppsj-150
- Screw Diameter：150mm
- Max.Capacity：800kg,H
- Max. Sheet Width：850mm
- Valid T-Die Width：1000mm
- Sheet Thickness Range：0.4-2.5mm
- Transport Package：Wooden Pallet
- Specification：CE; SGS
- Trademark：POLYPRINT
- Origin：China
- HS Code：84772090
- Production Capacity：Max. 800 Kg,H
Description
380V, 50HZ (3-Phase, 4-Wires)3 Suitable Material PP, PS PP, PS PP, PS 4 Main Extruder Dia. 100mm 120mm 150mm 5 Screw L/D 33:1 33:1 33:1 6 Max. Capacity (PS) 300kg/h 520kg/h 800kg/h 7 Extruding Motor Power 75kw 132kw 200kw 8 Max. Sheet Width 750mm 750mm 850mm 9 Valid T-die Width 850mm 850mm 1000mm 10 Sheet Thickness Range 0.3-0.2mm 0.3-2.5mm 0.4-2.5mm 11 Roller Diameter 400X1000mm 500X1000mm 600X1200mm 12 Machine Installed Power 160kw 220kw 350kw 13 Overall Dimension 14X2.5X4m 15X3X4.5m 64X3.5X4.8m

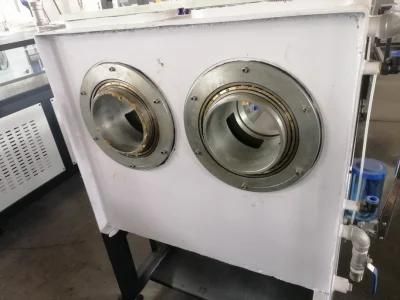

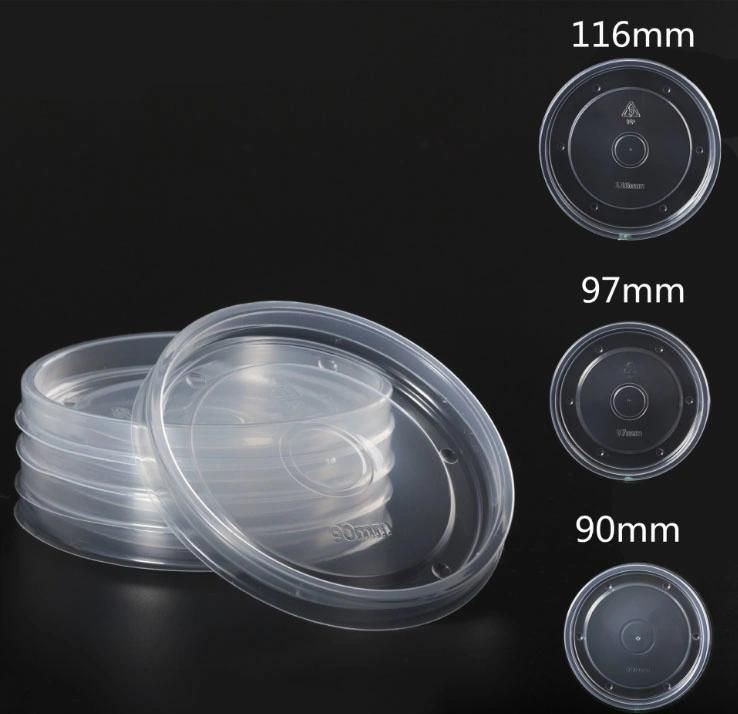

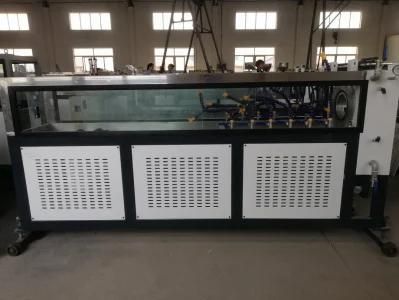

Sample Picture:
Our Services:

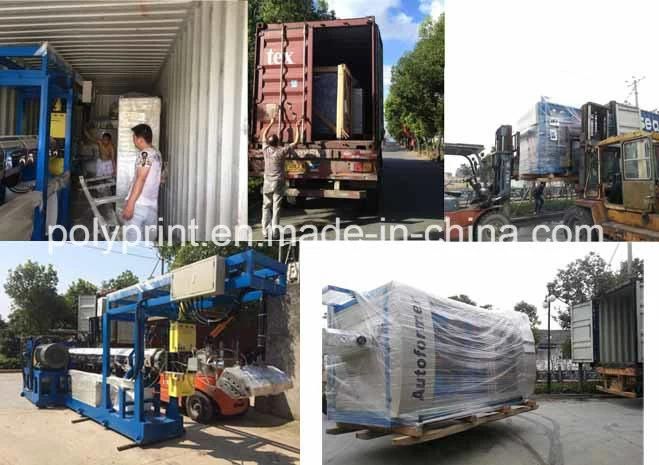

Packaging Shipping:
Company Information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
Sample Picture:
Our Services:
- Warranty:1 year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
- Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
- Quotation: valid for 60 days.
