PLA ABS 3D Printer Filament Making Machine 3D Printing Filament Extruder/ Extruding ...

Zhangjiagang Plastar Machinery Co., Ltd.
  • After-sales Service：Engineers Available to Overseas
  • Warranty：1 Year
  • Type：Filament Extruder
  • Plastic Processed：PETG PC PLA ABS Peek Nylon
  • Product Type：Granulating Extruder
  • Feeding Mode：One Feed

Base Info

  • Model NO.：PL
  • Assembly Structure：Integral Type Extruder
  • Screw：Single-Screw
  • Engagement System：Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Screw Design：Single Screw
  • Screw Diameter：25mm, 35mm, 45mm
  • Color：Customized
  • Cooling Type：Water Cooling
  • Raw Material：Pet, Peek, PLA, PC, ABS, Nylon
  • Final Product：Filament
  • Usage：3D Printer Filament Extrusion
  • Filament Dia.：1.75-3mm
  • Tolerance Control：0.02-0.03mm
  • One Spool Weight：About 1kg
  • Whole Line Length：12.5meters
  • Whole Line Weight：2t
  • Main Motor Power：5.5kw
  • Capacity：20-25kg,H
  • Name：Plastic 3D Printing Filament Extruder Mac
  • Transport Package：Standard Pacakge
  • Specification：It depends
  • Trademark：Plastar
  • Origin：China
  • HS Code：84772090
  • Production Capacity：1000sets,Year

Description

ModelPowerDiameterCapacityToleranceMaterialPL-252.2 KW1.75mm-3mm3-5Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PPPL-304 KW1.75mm-3mm10-15Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PPPL-457.5 KW1.75mm-3mm20-25Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PP


This Filament Extrusion Line is Composed by following parts:

No.ItemQty1Hopper Dryer1 Set2Single Screw Plastic Extruder1 Set3Die2 Sets4Hot & Cooling water cooling tank2 Sets5Horizontal storage rank1 Set6Backstop machine1 set7Haul-off machine1 set8Winding machine1 set

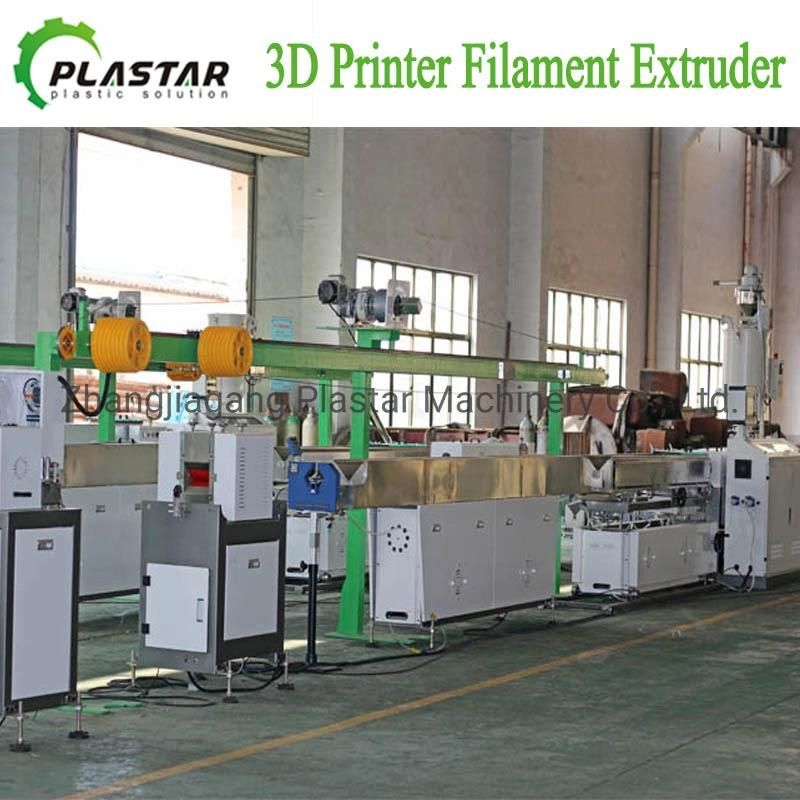

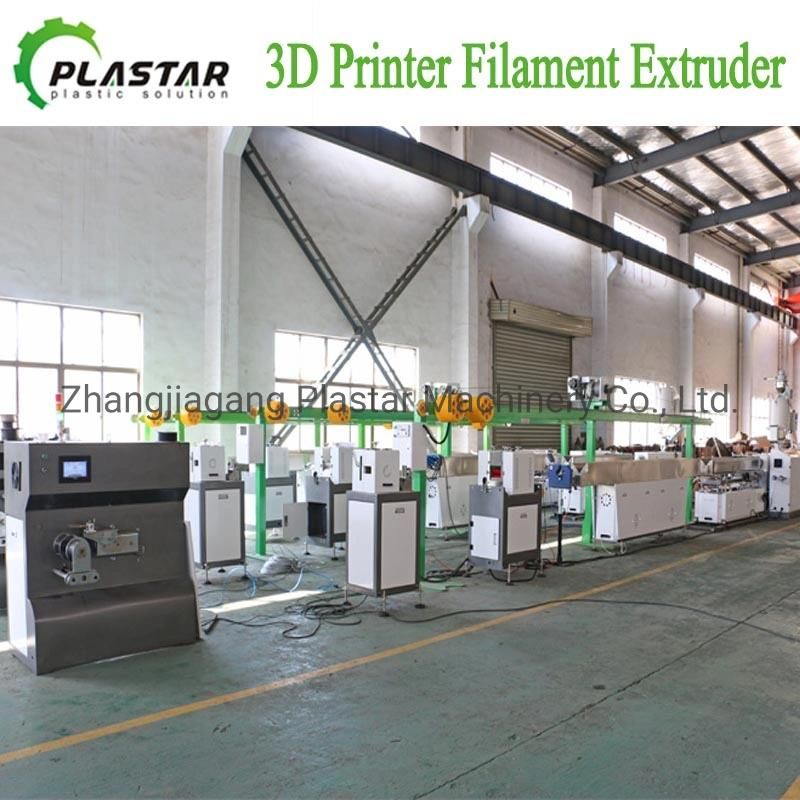

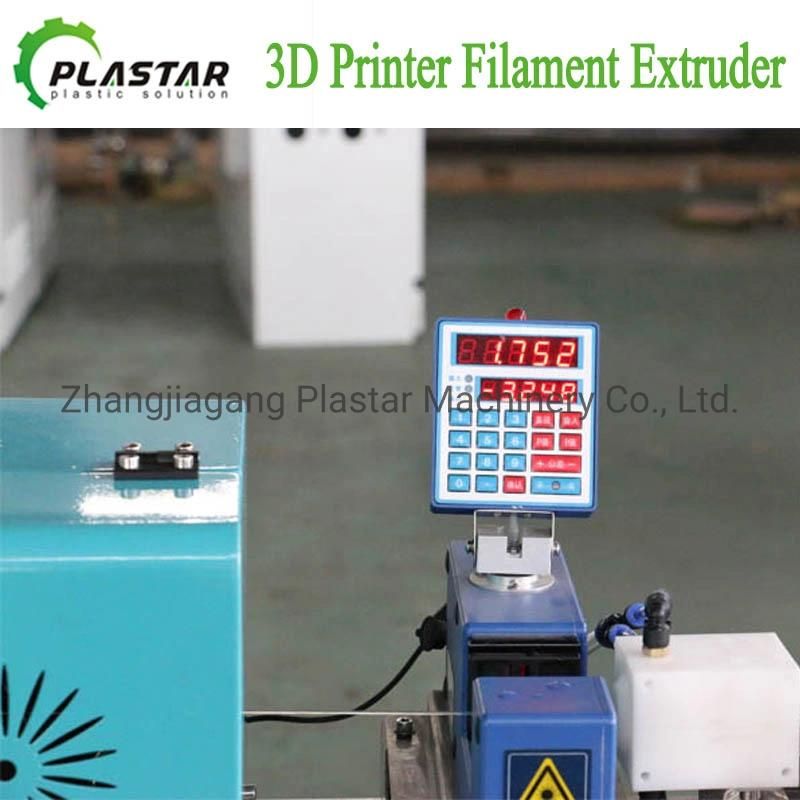

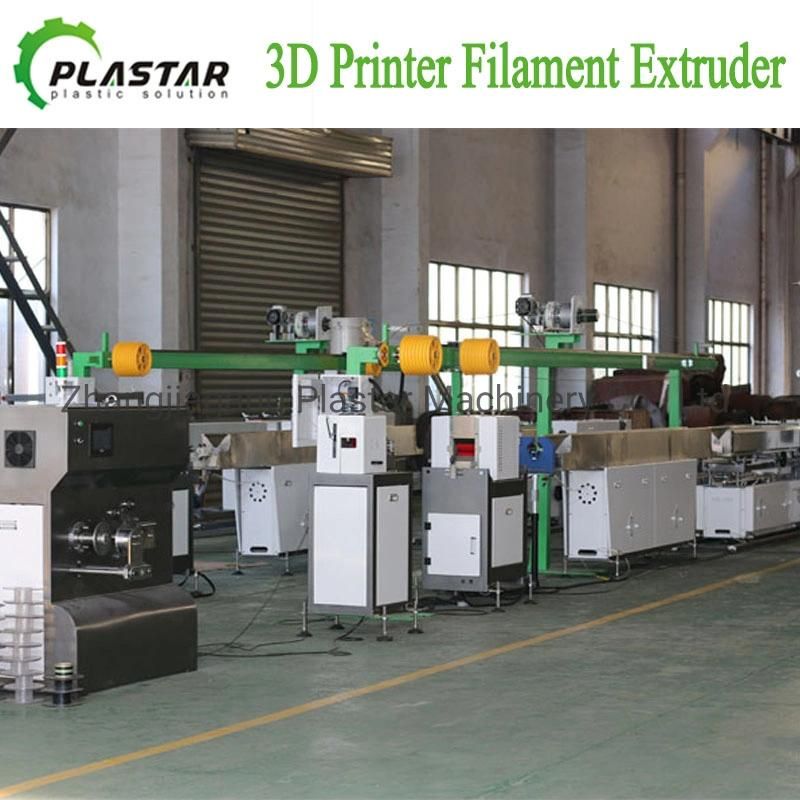

Our filament making extruder machine pictures for reference:

PLA ABS 3D Printer Filament Making Machine 3D Printing Filament Extruder/ Extruding MachinePLA ABS 3D Printer Filament Making Machine 3D Printing Filament Extruder/ Extruding Machine



We have different machine models with different capacity for your choice:

ModelPowerDiameterCapacityToleranceMaterialPL-252.2 KW1.75mm-3mm3-5Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PPPL-304 KW1.75mm-3mm10-15Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PPPL-457.5 KW1.75mm-3mm20-25Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PP



PLA ABS 3D Printer Filament Making Machine 3D Printing Filament Extruder/ Extruding MachinePLA ABS 3D Printer Filament Making Machine 3D Printing Filament Extruder/ Extruding MachinePLA ABS 3D Printer Filament Making Machine 3D Printing Filament Extruder/ Extruding MachinePLA ABS 3D Printer Filament Making Machine 3D Printing Filament Extruder/ Extruding MachinePLA ABS 3D Printer Filament Making Machine 3D Printing Filament Extruder/ Extruding Machine
