High Speed 3 Layer ABC Co-Extrusion HDPE LDPE LLDPE PE Plastic Rotary Die Head Film ...

Ruian Hongtong Machinery Co., Ltd.
  • Type：Three-Layer Co-extrusion Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：1000mm
  • Screw Diameter：45mm
  • Automation：Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：RHT-45x3,FM1000
  • Machine Weight：5t
  • Certification：CE
  • Transport Package：Wrapping Film
  • Trademark：Hongtong
  • Origin：Ruian City, China
  • HS Code：84773000
  • Production Capacity：100sets,month

Description

Basic Info.

Model NO. RHT-45x3/FM1000 Machine Weight 5t Certification CE Transport Package Wrapping Film Trademark Hongtong Origin Ruian City, China HS Code 84773000 Production Capacity 100sets/month

Product Description

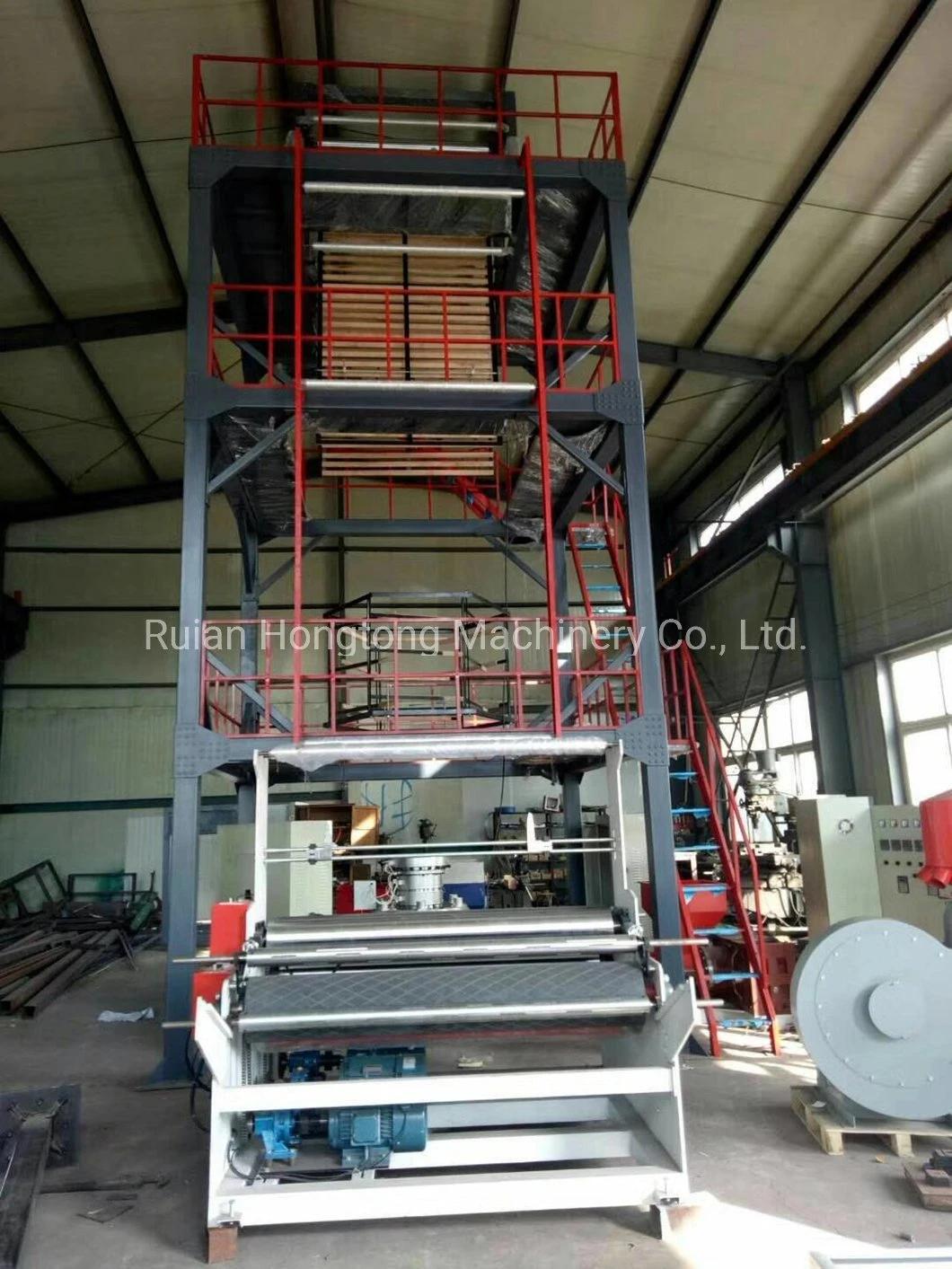

High Speed 3 Layer ABC Co-Extrusion HDPE LDPE LLDPE PE Plastic Rotary Die Head Film Blowing Machine with Double Winder for Agriculture Greenhouse
FEATURE:
Three-layer co-extruding die head film blowing machine unit is developed and researched according to the market demands on the basis of domestic and foreign advanced technology. It is applied to packing with medium-high grade film. The film has well barrier property, retaining freshness, moisture-proof, frost prevention, anti-oxygen and oil-proof. So it can be widely applied to the light-weight packing, such as fresh fruits, meat, pickles, fresh milk, drink, medicine, etc.
 Please contact the salesperson for the latest quotation and machine configurations.

We can design the machines according to your needs.
ModelRHT-45×3/FM1000RHT-50×3/FM1200RHT-55×3/FM1500
Screw DiameterΦ45mmx3Φ50mmx3Φ55mmx3
Screw RatioL/D30:1L/D30:1L/D30:1
Screw Speed15-150r/min15-150r/min15-150r/min
Main Motor Power11Kw×315Kw×318.5Kw×3
Extrusion Output(Single)50kg/h70kg/h90kg/h
Range of DieΦ130Φ180Φ130Φ250Φ130Φ300
Single-sided Thickness of Film0.01-0.10mm0.01-0.10mm0.01-0.10mm
Max Folding Width of Film600mm800mm1000mm
Electric Total Capacity56Kw70Kw88Kw
Weight of Machine4200kg5300kg6200kg
Overall Dimensions6600×4100×5000mm6800×4300×6000mm7000×4800×6800mm
High Speed 3 Layer ABC Co-Extrusion HDPE LDPE LLDPE PE Plastic Rotary Die Head Film Blowing Machine with Double Winder for Agriculture Greenhouse
High Speed 3 Layer ABC Co-Extrusion HDPE LDPE LLDPE PE Plastic Rotary Die Head Film Blowing Machine with Double Winder for Agriculture Greenhouse
High Speed 3 Layer ABC Co-Extrusion HDPE LDPE LLDPE PE Plastic Rotary Die Head Film Blowing Machine with Double Winder for Agriculture Greenhouse
High Speed 3 Layer ABC Co-Extrusion HDPE LDPE LLDPE PE Plastic Rotary Die Head Film Blowing Machine with Double Winder for Agriculture Greenhouse
High Speed 3 Layer ABC Co-Extrusion HDPE LDPE LLDPE PE Plastic Rotary Die Head Film Blowing Machine with Double Winder for Agriculture Greenhouse
High Speed 3 Layer ABC Co-Extrusion HDPE LDPE LLDPE PE Plastic Rotary Die Head Film Blowing Machine with Double Winder for Agriculture Greenhouse
High Speed 3 Layer ABC Co-Extrusion HDPE LDPE LLDPE PE Plastic Rotary Die Head Film Blowing Machine with Double Winder for Agriculture Greenhouse
High Speed 3 Layer ABC Co-Extrusion HDPE LDPE LLDPE PE Plastic Rotary Die Head Film Blowing Machine with Double Winder for Agriculture Greenhouse
