Pet Preform / Plastic Cap Injection Moulding Machine with Servo Motor
Zhangjiagang Dawson Machine Co., Ltd.- Type:Injection Blow Molding
- Structure:Vertical and Horizontal Composite
- Plastic Type:Thermoplastic
- Plasticizing Way:Screw Type
- Clamping Way:Hydraulic
- Automation:Automatic
Base Info
- Model NO.:SZ-3800A
- Computerized:Computerized
- Certification:CE, ISO9001:2008, GMP
- Screw Diameter:30-40
- Injection Capacity:113-201
- Opening Stroke:340mm
- Size:4.25*1.2*1.8
- Weight:3ton
- Clamping Force:95ton
- Color:Available
- Screw Torque:510
- Heating Power:7.3
- Screw Speed:0-260
- Transport Package:Nude Package,as Customers Request
- Specification:SZ-950A
- Trademark:DAWSON
- Origin:Zhangjiagang Jiangsu
- HS Code:8477101010
- Production Capacity:30 Sets Per Month
Description
320Screw Speed rpm 150 Screw torque N.m 2860 Heating power kw 25 Clamping force ton 3800 Opening stroke mm 680 Mould height mm 250~710 Space between tie bars mm 680×680 Ejector force/stroke KN/mm 90.7/170 Oil pump motor kw 37 Machine Size m 6.8×2.0×2.3 Packing size m 7.5×3×2.5 Machine weight ton 15
Advantages of small injection molding machine
1 HIGH LOAD OIL BEARING
The movable part of machine hinge and sliding adopt oil-bearing, decrease the use of lubricating oil, reduce maintenance costs and reduce oil to enhance the clean lines of the machine.

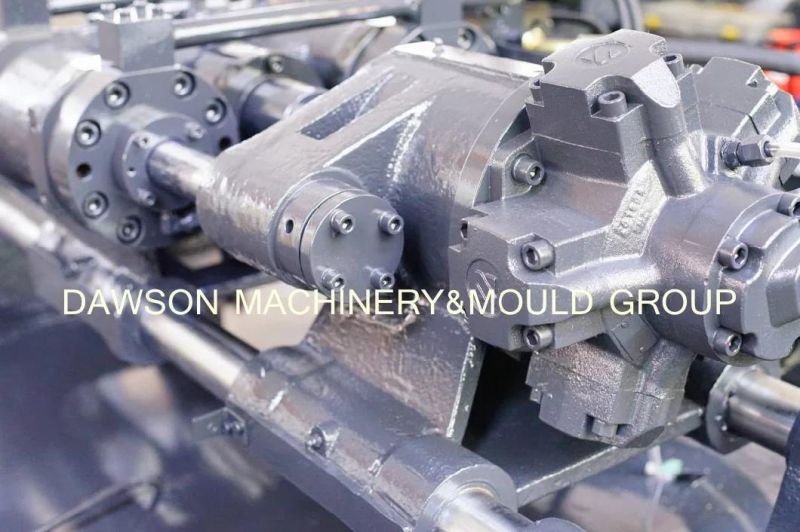

2 SYNCHRONOUS HYDRAULIC PRECISION MOULD ADJUSTMENT MECHANISMS
Hydraulic motor, the center location of gear module mould adjustment system, enable the mold adjustment system more perfect.
3 INTELLIGENT DISPLACEMENT DISTRIBUTION OF LUBRICATION SYSTEM
Intelligent displacement oil distribution system, equal distribution of oil and high efficiency of lubrication, extension the life of the reamer.
4 DESIGN AND RESERVE LARGE AUXILIARY SPARE SPACE.
Convenience of the circuit connection for the precision mold of electricity, gas, water oil and configuration flexible delivery device.
5 ADJUSTABLE JUNIOR WARE-RESISTING FEET SLIP
Adjust special polymer wear-resisting materials containing flattering feet, adjustable height, balance weight, durable, and clean.
Advantages of small injection molding machine
1 HIGH LOAD OIL BEARING
The movable part of machine hinge and sliding adopt oil-bearing, decrease the use of lubricating oil, reduce maintenance costs and reduce oil to enhance the clean lines of the machine.
2 SYNCHRONOUS HYDRAULIC PRECISION MOULD ADJUSTMENT MECHANISMS
Hydraulic motor, the center location of gear module mould adjustment system, enable the mold adjustment system more perfect.
3 INTELLIGENT DISPLACEMENT DISTRIBUTION OF LUBRICATION SYSTEM
Intelligent displacement oil distribution system, equal distribution of oil and high efficiency of lubrication, extension the life of the reamer.
4 DESIGN AND RESERVE LARGE AUXILIARY SPARE SPACE.
Convenience of the circuit connection for the precision mold of electricity, gas, water oil and configuration flexible delivery device.
5 ADJUSTABLE JUNIOR WARE-RESISTING FEET SLIP
Adjust special polymer wear-resisting materials containing flattering feet, adjustable height, balance weight, durable, and clean.
