• Model NO.：BST-XXX
• Computerized：Computerized
• Certification：CE, ISO9001:2008, GMP, QS, UL
• Product：Pet Preform , Bottle Preform
• PLC Control：Siemens
• Hydraulic Parts：Yuken
• Voltage：by Order
• Servo Motor：Kinway
• Transport Package：Wooden Case
• Specification：CE, ISO, SGS
• Trademark：KINGMACHINE
• Origin：China
• HS Code：8422
• Production Capacity：7000

Basic Info.

Model NO. BST-XXX Computerized Computerized Certification CE, ISO9001:2008, GMP, QS, UL Product Pet Preform / Bottle Preform PLC Control Siemens Hydraulic Parts Yuken Voltage by Order Servo Motor Kinway Transport Package Wooden Case Specification CE, ISO, SGS Trademark KINGMACHINE Origin China HS Code 8422 Production Capacity 7000

Product Description

Automatic PET Preform Injection Moulding Machine

Detailed Product Description:
Injection moulding machine / Adopting Europe technology, hydraulic unit adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English language to use. Close-loop PID temperature control with the advantage of high precision. The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators's safety.
Mould /Our mould producing center produces exact mould, adopts the high grade material to make. The perform mould uses the hot runner technology, inside uses the imported steel, the surface's brightness is very high and the service time is very long.
Features:
1) LCD computer control with big display screen
2) Hydraulic double proportional valve
3) Hard chrome plated high tensile strength steel tie bars
4) Generous space for fitting large moulds
5) Large opening stroke
6) Two position transducers to control Clamping and Injection
7) Four stages of injecting, independent velocity and pressure control
8) Hydraulic mould height adjustment device
9) Screw cold-start prevention device
10) Melt decompression control
11) Screw back pressure control
12) Multiple hydraulic ejection
13) Differential high speed clamping
14) Centralized lubrication system
15) Low pressure mould protection device
16) Mechanical safety interlock
17) Double electrical safety interlock
18) Oil return filter
19) Oil tank with inner stainless steel container

Specification	Clamping force	Max. Plasticising weight(PS)g	Space between tie bars (mm×mm)
BST-700	70	101	320×320
BST-950A	95	183	360×360
BST-1300A	130	260	420×420
BST-1600A	160	486	480×480
BST-2000A	200	643	505×505
BST-2400A	240	845	555×555
BST-3000A	300	1050	600×600
BST-3800A	380	1286	680×680
BST-4800A	480	1600	760×760
BST-5500A	550	2466	810×810
BST-6500A	650	2895	850×850
BST-7500A	750	3543	950×950
BST-10000A	1000	6280	1110×1110

Machine Photos:

Injection mould

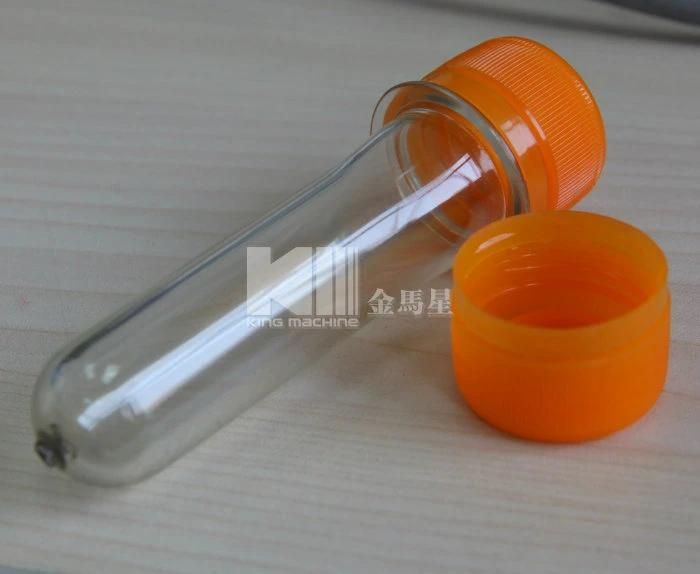

Preform samples :
