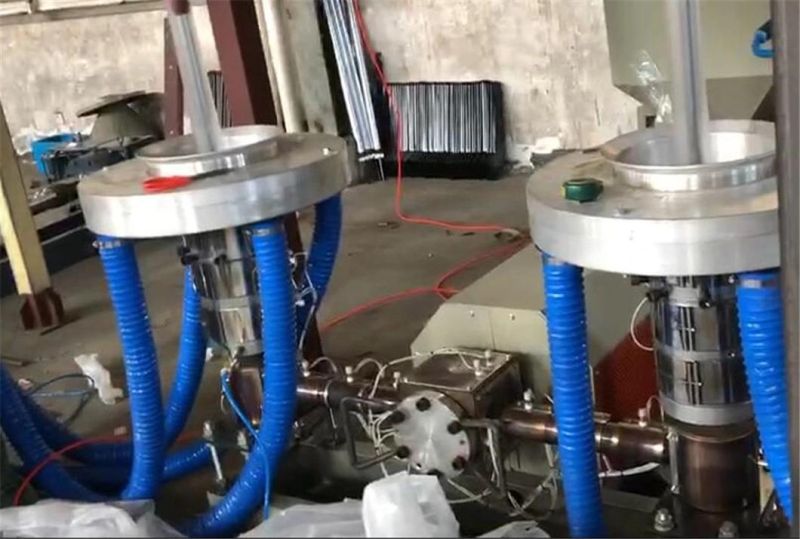

Single Screw Double Die Film Blowing Machine (SJ-60(70))

Zhejiang Zhuxin Machinery Co., Ltd.
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：600mm
  • Screw Diameter：65mm
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：SJ-60(70)
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Transport Package：Wrapping Film
  • Specification：CE
  • Trademark：Changyin
  • Origin：China
  • HS Code：84773090
  • Production Capacity：1000sets,Year

Description

1. Model: Sj-60
Diameter of screw: 60mm
L/d: 28: 1
Reduced diameter of film: 100 -500mm
Single face thickness of film: 0.005-0.05
Rational speed of screw: 10-120rpm
Main motor power: 18.5kw
Heating power: 15kw
Output: 40-60kg/h
Outline diamension: 6200x3000x 3200mm
Weight: 2.3t2. Model: Sj-70
Diameter of screw: 70
L/d: 28: 1
Reduced diameter of film: 100 -600mm
Single face thickness of film: 0.005-0.05
Rational speed of screw: 10-120rpm
Main motor power: 30kw
Heating power: 25kw
Max. Output: 60-70kg /h
Outline diamension: 6500x3200x 3300mm
Weight: 2.5tSingle Screw Double Die Film Blowing Machine (SJ-60(70))
