Fully-Automatic Thermoforming Machine for Plastic Blister

Zhejiang Hongyin Machinery Co., Ltd.
  • After-sales Service：Video Technical Support, Free Spare Parts
  • Warranty：1 Year
  • Certification：CE, ISO
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic

Base Info

  • Model NO.：hy-510580
  • Brand Name：Hongyin
  • Model Number：Hy-510580+Stacker
  • Processing Type：Plastic Thermoforming Machine
  • Product Type：Plastic Packaging
  • Max Forming Area：510*580mm
  • Thickness of Sheet：0.15-1.0mm
  • Place of Origin：Zhejiang China (Mainland)
  • Voltage：380V 50,60Hz
  • Dimension(L*W*H)：2750*1410*2350mm
  • Transport Package：Wooden Packaging
  • Specification：CE
  • Trademark：HongYin
  • Origin：China
  • HS Code：847780000
  • Production Capacity：30 Sets, Year

Description

1,Forming area:510×580mm2,Forming depth:100mm3,Sheet thickness range:0.15-1mm4,Sheet roller diameter:710mm5,Cutting length:6350mm6,Ari pressure:0.7Mpa7,Water consumption: Liters/min(15-20ºC)8,Air consumption:1200 Liters/min9,Speed:600-1500 Liters/min10,Power:3-N AC308V±10%11,Preheater power:2kw12,Mould plate heating power:4.8kw13,Heating plate power:15kw14,Sheet width:650mm 15,Weight:2500kg16,Dimension(L×W×H)2750×1410×2350×(mm)
II. Application Area:
HY-510580 fully automatic plastic forming machine is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

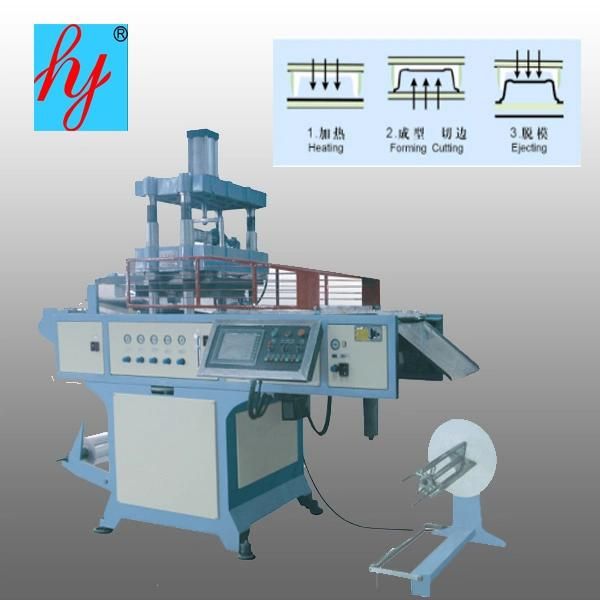

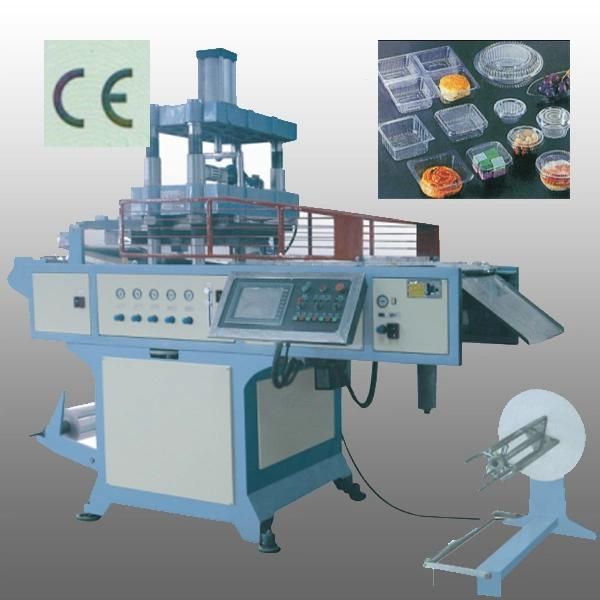

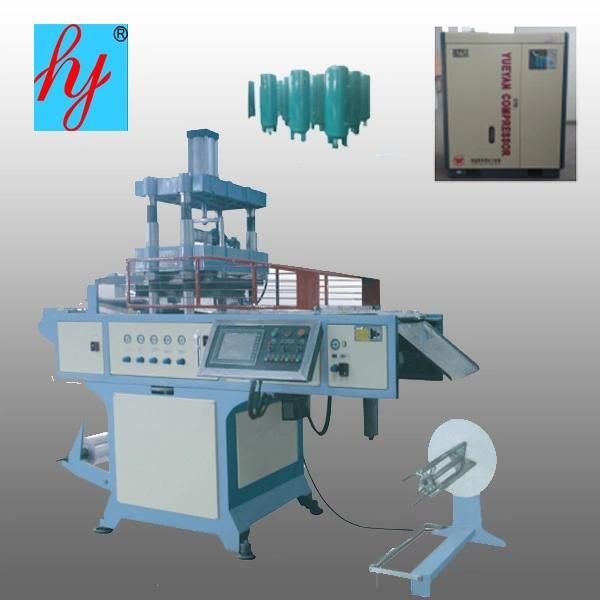

III. Machine Picture

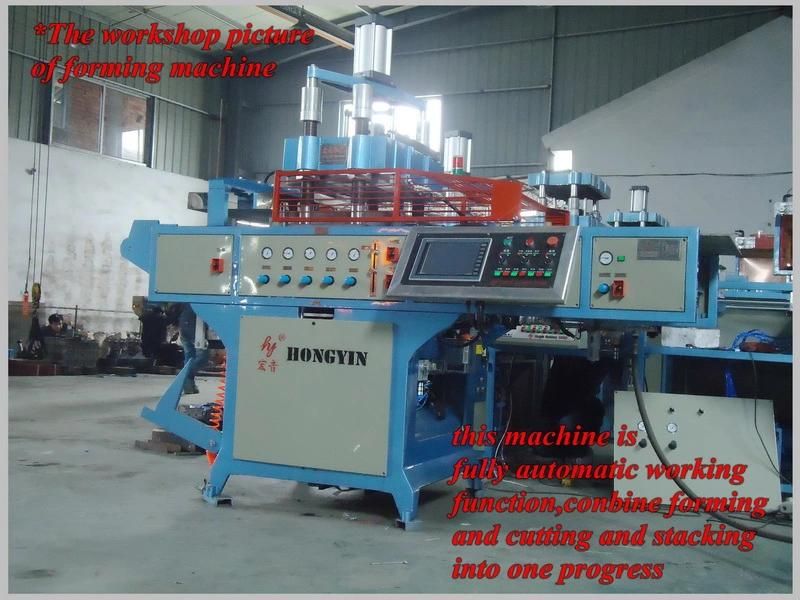

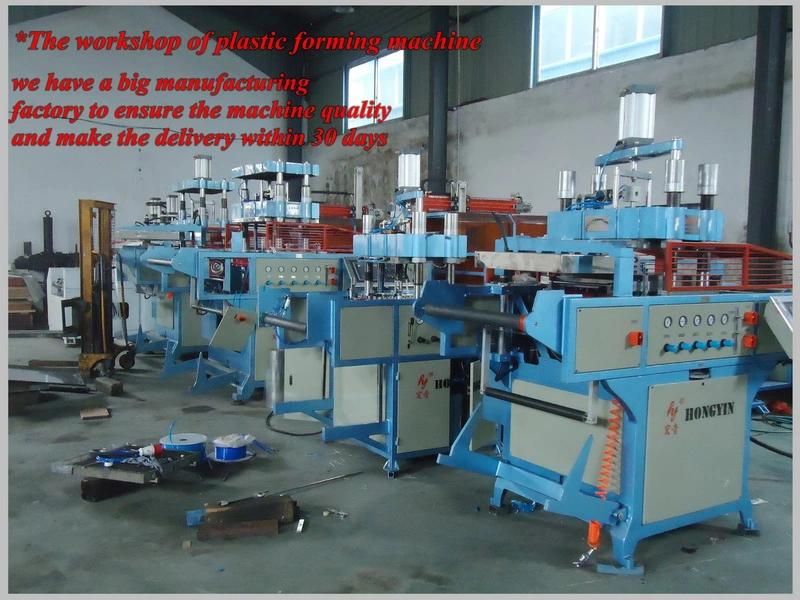

HY-510580 plastic thermoforming machine workshop show.
Fully-Automatic Thermoforming Machine for Plastic Blister
Fully-Automatic Thermoforming Machine for Plastic Blister
Fully-Automatic Thermoforming Machine for Plastic Blister
Fully-Automatic Thermoforming Machine for Plastic BlisterFully-Automatic Thermoforming Machine for Plastic BlisterFully-Automatic Thermoforming Machine for Plastic Blister
Fully-Automatic Thermoforming Machine for Plastic BlisterFully-Automatic Thermoforming Machine for Plastic BlisterFully-Automatic Thermoforming Machine for Plastic BlisterFully-Automatic Thermoforming Machine for Plastic Blister
IV. About Ruian Hongyin Machinery Co., Ltd Service. 1. Purchase Service Ruian Hongyin Company have a specialize and efficiency working team. If you are new on the printing and packing area, Some samples of your products could be shew to us will be appreicate, we will give you specialized suggestion of whole work.

2. Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 100 per day.

3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.


If you are interested in our machine, please feel free and contact me.
