• Model NO.：JS2000 SERIES
• Machine Cavity：2
• Machine Output：1400-1800PCS.,H
• Max Preform Inner Dimameter：55mm
• Transport Package：Wooden Box
• Specification：CE. SGS
• Trademark：JS
• Origin：China
• HS Code：84773090

Basic Info.

Model NO. JS2000 SERIES Machine Cavity 2 Machine Output 1400-1800PCS./H Max Preform Inner Dimameter 55mm Transport Package Wooden Box Specification CE. SGS Trademark JS Origin China HS Code 84773090

Product Description

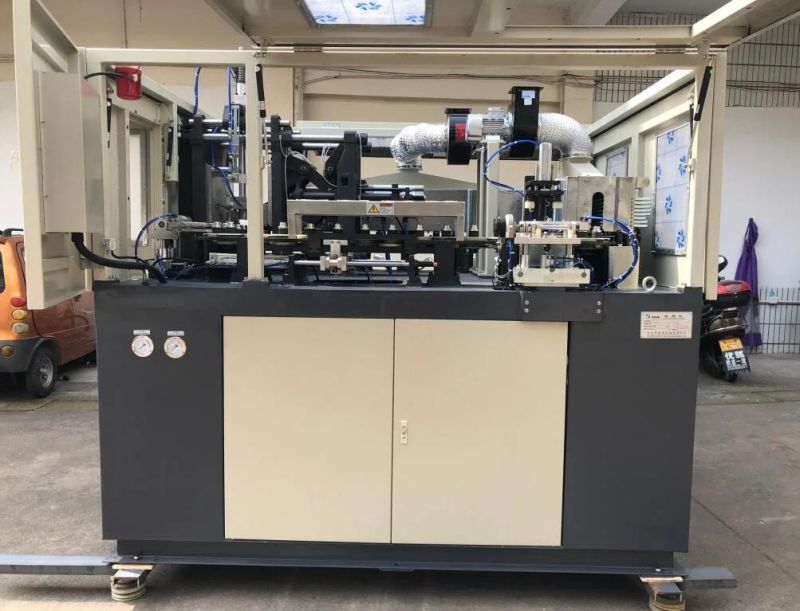

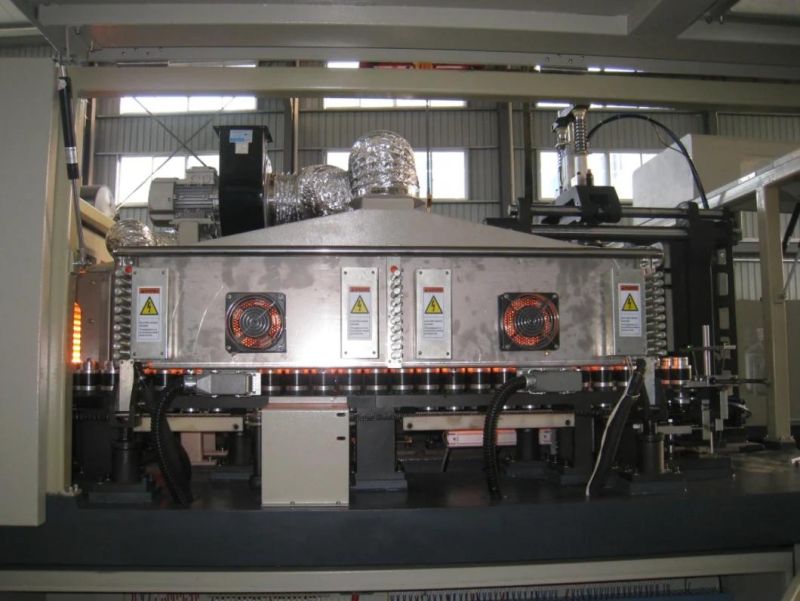

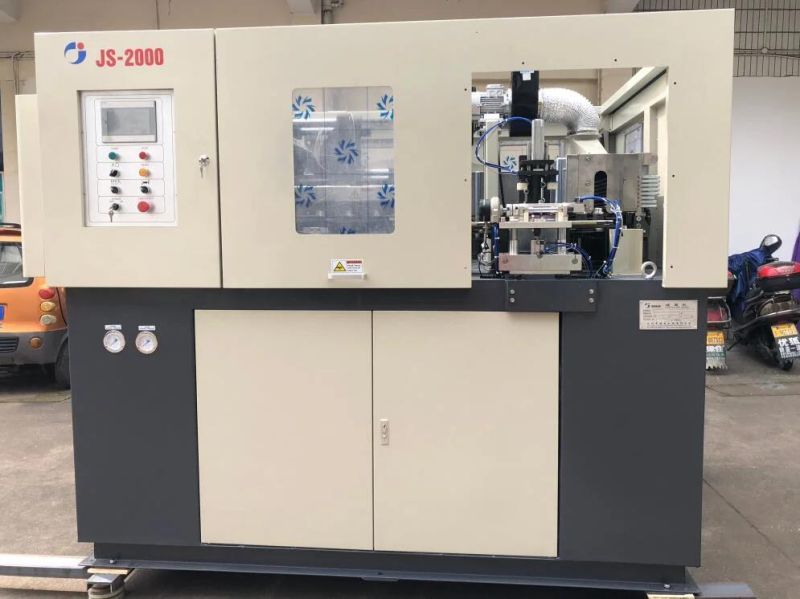

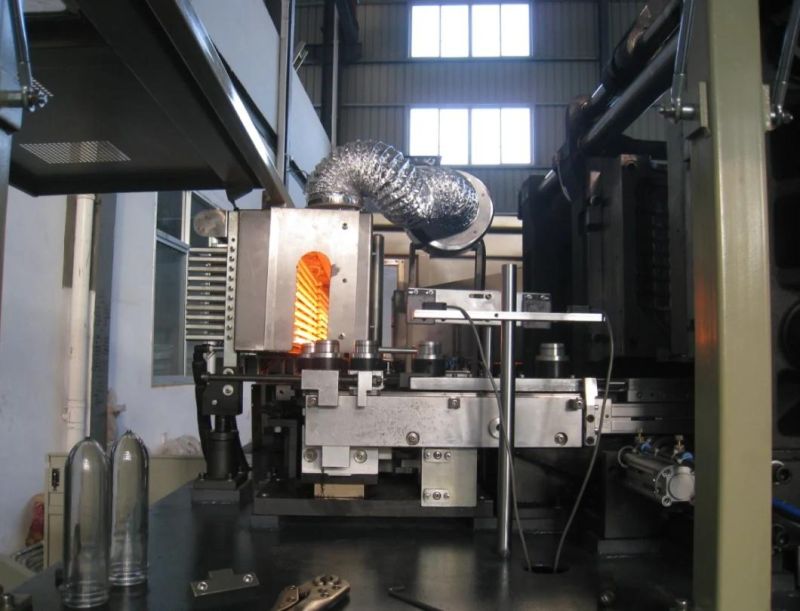

Our factory bottle blow molding machine can produce PET containers including the bottles for kinds of wine, drink, soybean, vinegar, and pesticide shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipes are used in the machine. It has high pressure protection with the feature of precisely removing mould. It is easy to maintain .It is the equipment for producing PET bottles.
MACHINE  PROPERTIES:
  1. FEATURES TOUCH SCREEN COMPUTER OF TAIWAN'S WEILUN , OPERATE CONSISTENTLY AND SIMPTY .
   2.FEATURES PNEUMATIC ELEMENTS OF GERMAN FESTO AND JAPAN SMC.
   3.SPECIALLY DESIGNED FOR ENERGY-SAVING PURPOSE , MECHANICAL  UNIT IS COMPACT AND SOUND.
   4.FEATERES TROUBLW ALERT AND DIAGNOSTIC UNITES TO ALLOW EASY MAINTENANCE.
   5.ENVIRONMENTALLY FRIENDLY DESIGN, NONTOXIC CONVEYOR BELT TO CARRY PREFORMS .









Technical Reference
Machine Model		JS2000	JS2000H	JS2000B
Pcs/h		2000	1200	1400-1800
Bottle Volume	L	0.2-2	0.2-2	1-5
Preform inner diameter	MM	15-40	15-40	55
Max.bottle diameter	MM	20-105	20-95	180
Max.bottle height	MM	350	350	350
Cavity	PC	2	2	2
Main Machine size	M	2.8*1.8*2.2	2.8*1.5*2.2	2.6*2.25*2.4
Weight	T	3.0	3.0	3.3
