• Model NO.：LSJ120,35
• Customized：Customized
• Condition：New
• Power Supply：380V 50Hz 3phase(Customized)
• Plastic Material：PC
• Sheet Width：2100mm
• Weight：27.5tons
• Production Line Output：>300kg,H
• Production Line Speed：7m,Min
• Installed Power：485kw
• Actual Power：200kw
• Transport Package：Wooden Pallet,Cases with Streching Films
• Specification：LMSB-120,35
• Trademark：Leader machinery
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：50 Sets,Per Year

descriptiondatafeeding system1set120/35 single screw extruder 1set45/30 uv co-extruder1sethydrulic screen changer1setmelt pump1setfeedblock1sett-die head 1setvacuum calibrating table 1setfirst stage haul off machine1set5000mm oven1setsecond stage haul off machine 1setprotective film laminating unit1settranseverse cutting machine1setelectrical control system1set




Part 4: Applications:

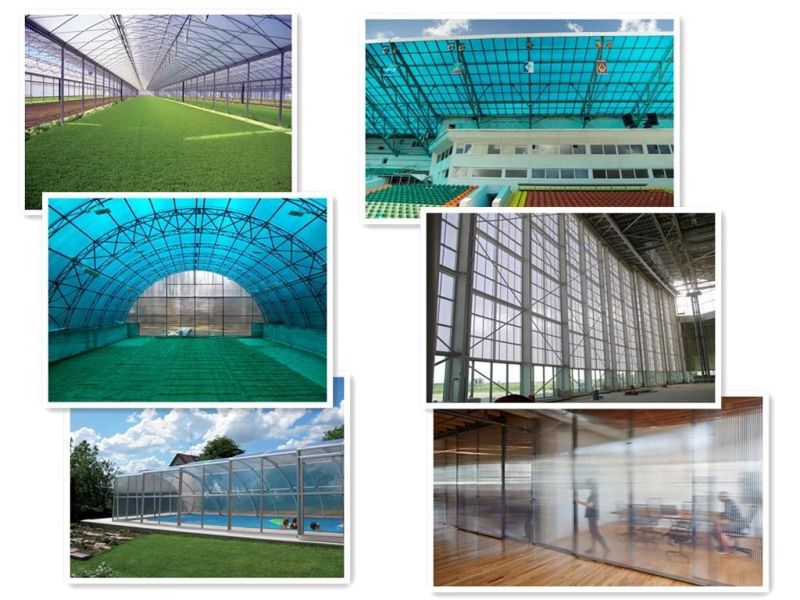

PC hollow sheet is widely used in construction sunroof in buildings/halls/shopping center/stadium/public places of entertainment and public facility; Ring shield of bus station/garages/pergolas/corridors; noise barriers for highways and urban elevated road.



Part 5:Feature:



The hollow sheet extrusion machine using high-speed energy-saving stable screw,yiled increased by more than 25% compared to similar products;special design calibrating device,each individual control;specific temperature control device,reduce heat shrinkage,simple operation.

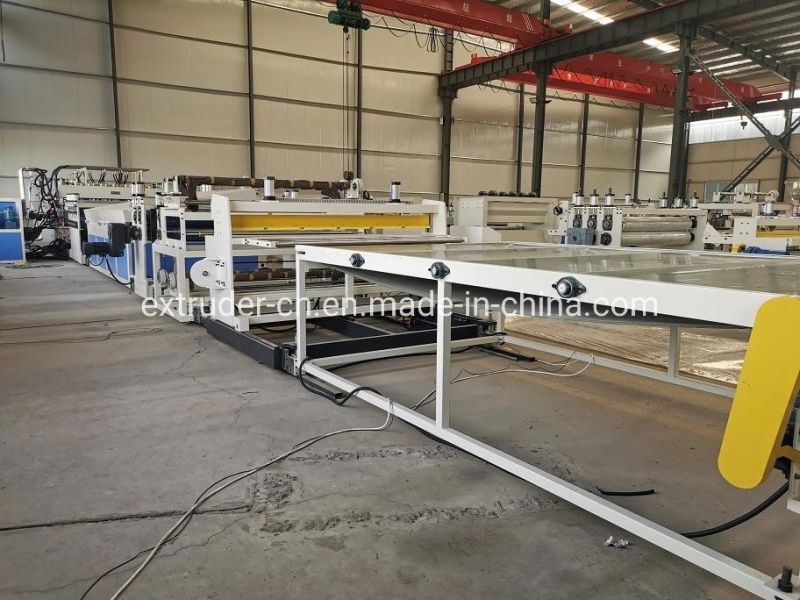

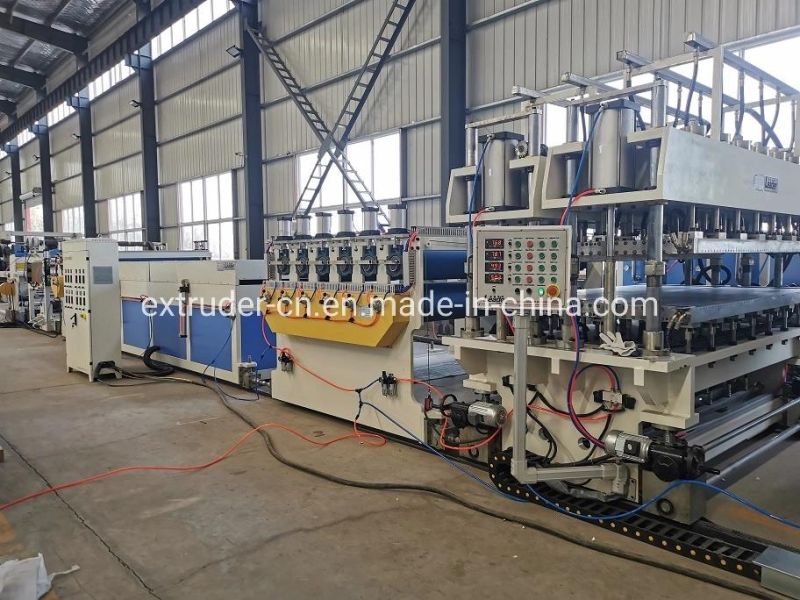

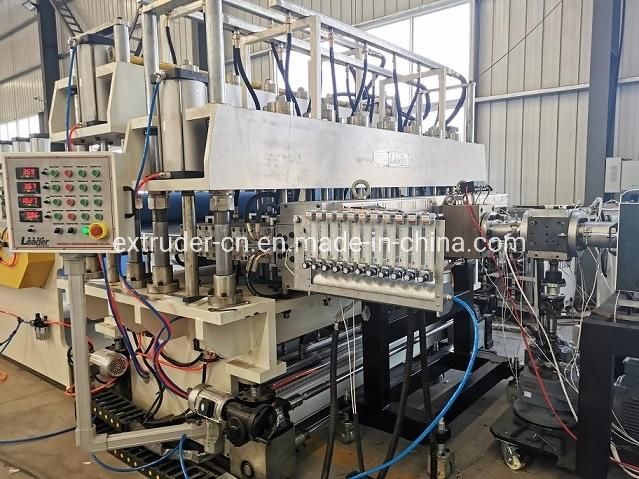

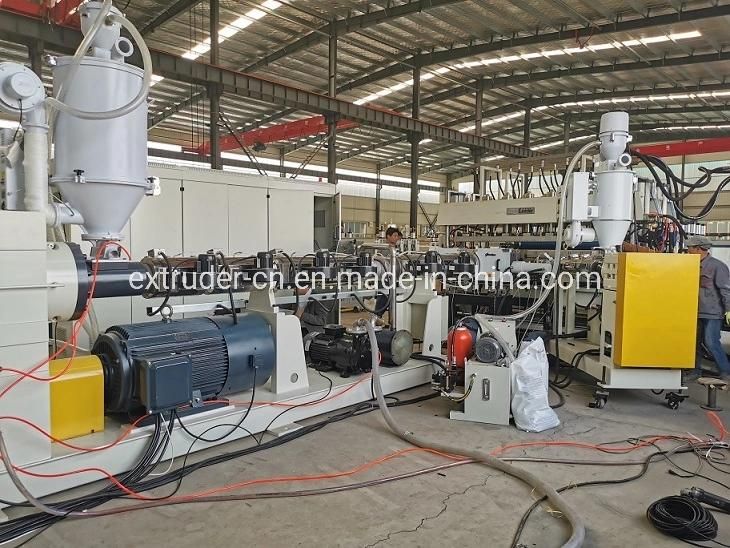

Part 6: Testing Pictures and samples



For more detailed information, Please contact with me freely.
