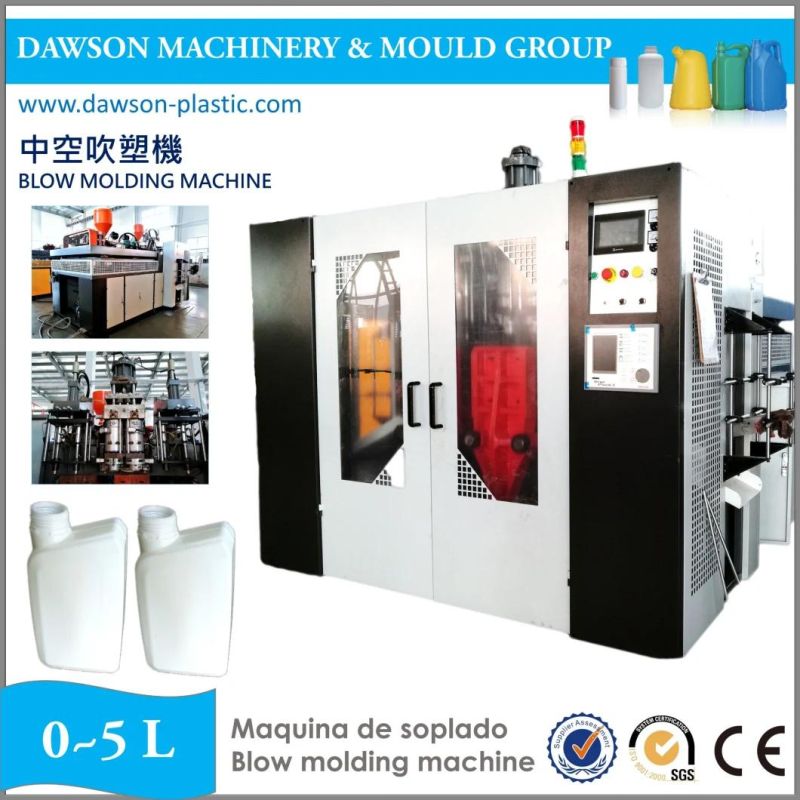

• Model NO.：DSB70II-2-5L
• Application：Bottles,Jars,Cans,Gallons,Jerry Cans
• Station：Two Station
• Die Head：Double Head
• Auto-Deflashing：Available
• Mould：Two Cavity
• Made in：China
• Suitable：0-5L
• Material：HDPE,PP,PVC,LDPE
• Color：Available
• Max Volume：5L
• Output Capacity：180~200 PCS,H
• Size：4.6×3×2.4(M)
• Weight：8.2t
• Plasticization：130kg,H
• Heating Zone：4 Aluminum Heater
• Transport Package：Nude Package,as Customers Request
• Specification：DSB70II-2
• Trademark：DAWSON
• Origin：Zhangjiagang Jiangsu
• HS Code：8477301000
• Production Capacity：340-360 PCS,H

PE.PP,PVC,PS,PETG,so on Max volume20L Output capacity180~200 pcs/h Size4.6×3×2.4(M) Weight8.2TsystemSpecificationParametersNotePlasticizion systemSummarizeHigh efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature  ReducerHard finishing,High intension,Low noise reducer  Screw∮90mm,L/D ratio 25, 38CrMoALACooling system available Plasticization130Kg/HHDPE Heating Zone4 Aluminum HeaterAutomatic heating Heating power8KW/H  Extrusion MotorThree phase asynchronous motor (380V,50HZ)  Cooling Fan4zone         Automatic coolingExtrusion systemSummarizeHigh-grade alloy steel, center feeding  Die head number1  Center distance of die heads/  Max die mouth∮180mm  Heating zone4   Stainless steel heating cycle  Heating power5~7KW Clamping systemSummarize
 High intension, rigidity, center mold locking, stable mould opening and clamping system    Clamping force108KN  Template distance240~660mm




Weight
