PVC Cable Trunking Extrusion Machine
Foshan Kebeln Plastic Machinery Co., Ltd.- Product Type：PVC Pipe
- Screw No.：Double-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, QS
- Customized：Customized
Base Info
- Model NO.：KBL-55D
- Condition：New

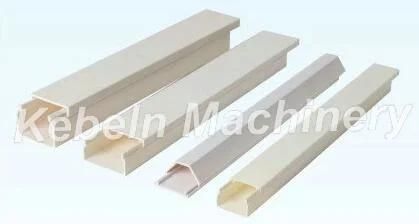

- Trunking Size：16*16mm-40*40mm
- Transport Package：Standard Packing
- Specification：16*16-40*40mm
- Trademark：kebeln
- Origin：China
- HS Code：8477209000
- Production Capacity：1000PCS,Year
Description
Basic Info.
Model NO. KBL-55D Condition New Trunking Size 16*16mm-40*40mm Transport Package Standard Packing Specification 16*16-40*40mm Trademark kebeln Origin China HS Code 8477209000 Production Capacity 1000PCS/YearProduct Description

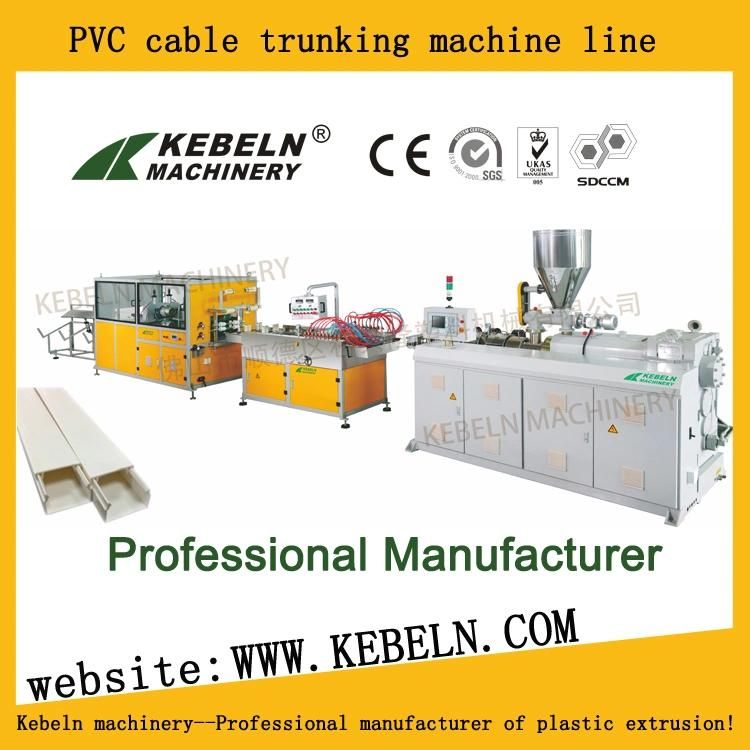

PVC double trunking xtrusion line is included KBL55/113 conical twin-screw extruder, mould, vacuum forming table, double haul off and cutting machine, stacker. Material is PVC, best production diameter range is 16*16mm-40*40mm. It has the advantage of high capacity, simple operation, high degree automation, automatic fault alarm and simple maintenance, long working time.
Technical specification
| mainframe specifications | 55/113 | cavity of mould | double trunkings |
| extreder capacity(kg/h) | 150-200kg/h | production speed(m/min) | 0-10m/min |
| Length of vacuum forming table(mm) | 3000mm | Motor power(kw) | 22kw/30kw |
| speed of haul off(m/min) | 0-12 | size range(mm) | 16*16mm-40*40mm |
