• Model NO.：LXPU
• Output Flow：50-5000g,S
• Transport Package：Plywood Case
• Specification：3800*1900*2300
• Trademark：Lingxin
• Origin：Mainland China
• HS Code：8477409000
• Production Capacity：50sets,Month

Basic Info.

Model NO. LXPU Output Flow 50-5000g/S Transport Package Plywood Case Specification 3800*1900*2300 Trademark Lingxin Origin Mainland China HS Code 8477409000 Production Capacity 50sets/Month

Product Description

COMPANY INTRODUCTION VIDEO LINKE: https://youtu.be/ZbQmDYK5p-E

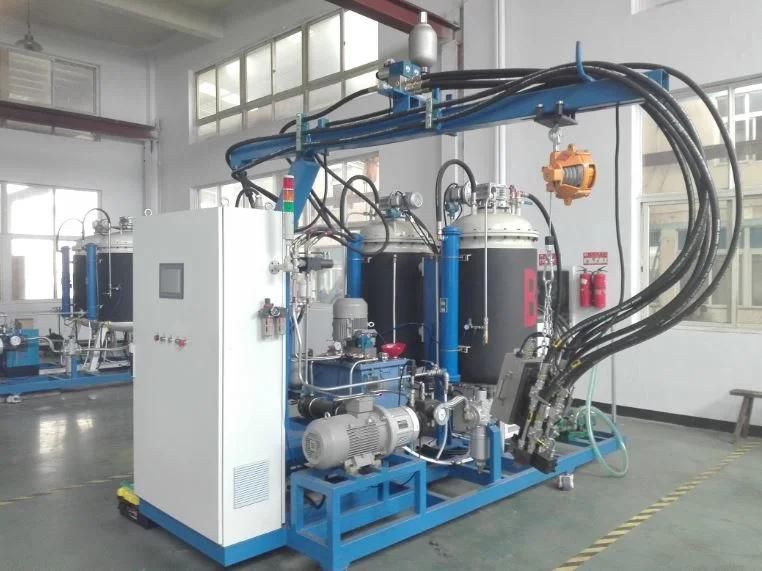

Equipment Overview:

PU foaming machines have wide application in the market, which have the features of economy and covenient operation and maintenance, etc.. The machines can be made according to customers' requirement for various flow rate.

Equipment Characteristics:

1.For sandwich type material tanks, it has good heat preservation.

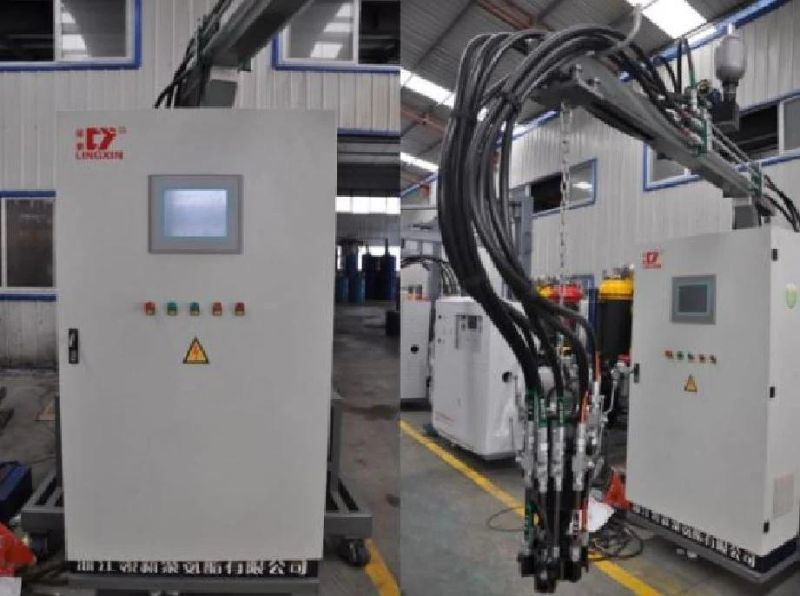

2.The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating situation of machines easy to see.
3.The adoption of new type mixing head makes the mixing even, the noise low and the machine sturdy and durable.
4.The imported pumps make the measurement accurate.

Technical Parameters:

Injection Output:	50-5000g/s	Repeat injection accuracy:	±1%
Material tank volume:	250L-500L	Compressed air needed:	Dry,oil free   P:0.7Mpa   Q:600NL/min
Injection pressure:	10-20Mpa(adjustable)	Temperature control system:	Heat: 2×9Kw
Mixing ratio range:	1:5~5:1(adjustable)	Input power:	Three-phase five-wire 380V
Injection time:	0.5~99.99S(correct to 0.01S)	Total power:	39KW-123KW
Material temperature controlling error:	±2ºC	Raw material viscosity(22ºC):	POLY ~2500MPas ISO  ~1000MPas
