Plastic Semi Automatic Thermoforming Machine (HY-510580B)

Zhejiang Hongyin Machinery Co., Ltd.
  • After-sales Service：Video Technical Support, Free Spare Parts
  • Warranty：1 Year
  • Certification：CE, ISO, ISO9001:2008
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Semiautomatic

Base Info

  • Model NO.：HY-510580B
  • Computerized：Computerized
  • Automation：Automatic
  • Driven Type：Pneumatic
  • Shaping Mode：on Molding
  • Raw Material：PVC, Pet, BOPS, HIPS
  • Forming Area：510*580mm
  • Forming Depth：100mm
  • Application：Plastic Packaging
  • Brand Name：Hongyin
  • Transport Package：Wooden Packing
  • Specification：CE
  • Trademark：HongYin
  • Origin：China
  • HS Code：847780000
  • Production Capacity：100 Sets,Years

Description

The parameter of thermoforming machine1.Forming area:510×580mm2.Forming depth:100mm3.Sheet thickness range:0.1-1mm4.Sheet roller diameter:710mm5.Cutting length:6350mm6.Ari pressure:0.7Mpa7.Water consumption: 10Liters/min8.Air consumption:1800 Liters/min9.Speed:600-1500 Liters/min10.Power:3-N AC380V±10%11.Preheater power:2kw12.Mould plate heating power:4.8kw13.Heating plate power:12kw14.Sheet width:650mm15.Weight:2000kg16.Dimension(L×W×H)4150×1150×2160×(mm)
II. Application Area:
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

III. Machine Picture
1. HY-510580B plastic thermoforming machine workshop.
Plastic Semi Automatic Thermoforming Machine (HY-510580B)

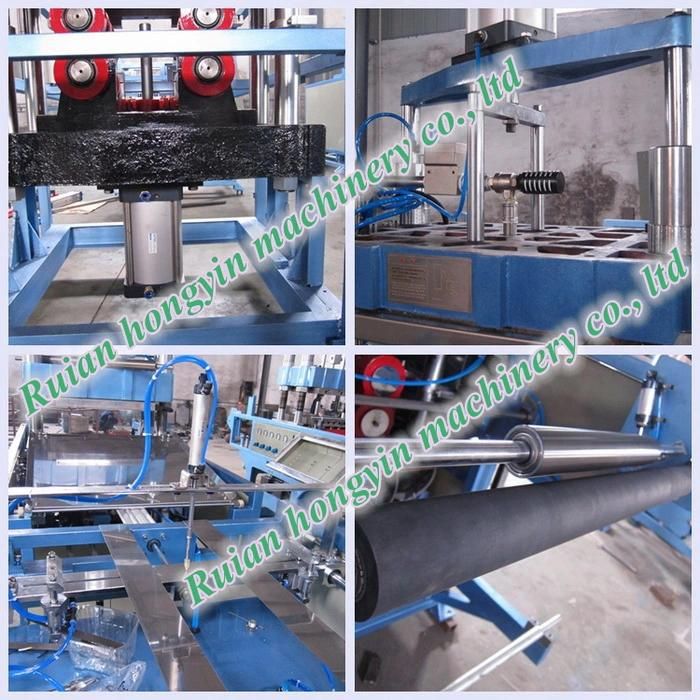

2. The HY-510580B plastic thermoforming machine details part.

Plastic Semi Automatic Thermoforming Machine (HY-510580B)

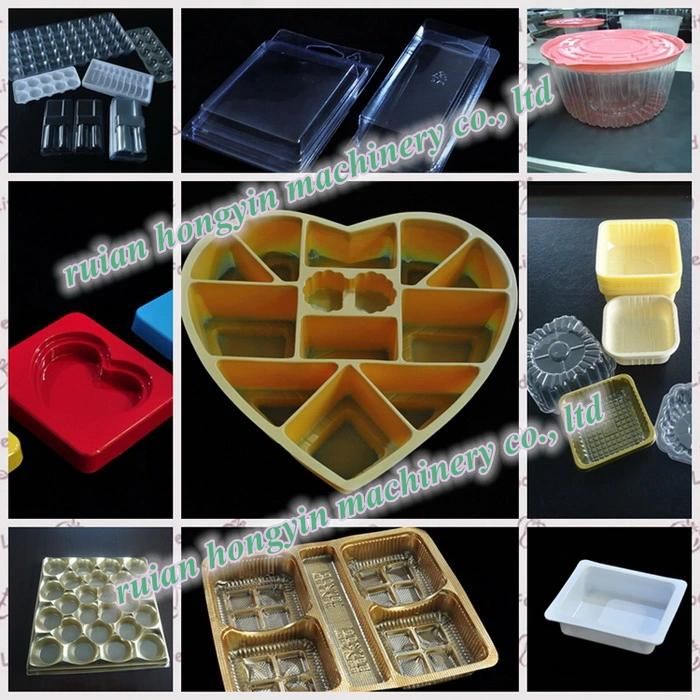

3. HY-510580B thermoforming machine products samples
Plastic Semi Automatic Thermoforming Machine (HY-510580B)
IV. About Ruian Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Ruian Hongyin Company have a specialize and efficiency working team. If you are new on the printing and packing area, Some samples of your products could be shew to us will be appreicate, we will give you specialized suggestion of whole work.

2. Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
