Semi-Automatic Plastic Forming Machine Thermoformer

Zhejiang Hongyin Machinery Co., Ltd.
  • Certification：CE, ISO
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Semiautomatic
  • Brand Name：Hongyin
  • Model Number：Hy-510580b

Base Info

  • Model NO.：HY-510580B
  • Processing Type：Plastic Thermoforming Machine
  • Product Type：Plastic Packaging
  • Max Forming Area：510*580mm
  • Thickness of Sheet：0.1-1.2mm
  • Ma.Forming Depth：100mm
  • Place of Origin：Zhejiang China (Mainland)
  • Voltage：380V 50,60Hz
  • Dimension(L*W*H)：4150*1150*2160mm
  • Transport Package：Wooden Packing
  • Specification：CE
  • Trademark：HongYin
  • Origin：Zhejiang Ruian
  • HS Code：847780000
  • Production Capacity：30 Sets,Month

Description

The parameter of forming machine1.Forming area:510×580mm2.Forming depth:100mm3.Sheet thickness range:0.1-1mm4.Sheet roller diameter:710mm5.Cutting length:6350mm6.Ari pressure:0.7Mpa7.Water consumption: 10Liters/min8.Air consumption:1800 Liters/min9.Speed:600-1500 Liters/min10.Power:3-N AC380V±10%11.Preheater power:2kw12.Mould plate heating power:4.8kw13.Heating plate power:12kw14.Sheet width:650mm15.Weight:2000kg16.Dimension(L×W×H)4150×1150×2160×(mm)

II. Introduction With The Machine
HY-510580B semi-automatic plastic forming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by a micro PLC, which can be operated in man-interface.
It combines the material sending, heating, forming into one process. It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment telecommuting and memory reserve functions.


III. Picture showing
1.The plastic forming machine in workshop
Semi-Automatic Plastic Forming Machine Thermoformer

2.The details picture of plastic forming machine
Semi-Automatic Plastic Forming Machine Thermoformer

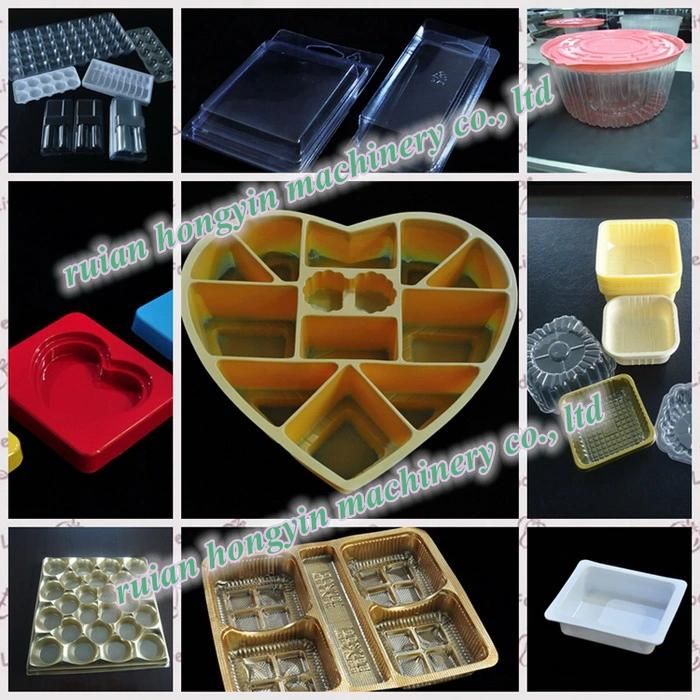

3. HY-510580B thermoforming machine products samples
Semi-Automatic Plastic Forming Machine Thermoformer
IV. About Ruian Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Ruian Hongyin Company have a specialize and efficiency working team. If you are new on the printing and packing area, Some samples of your products could be shew to us will be appreicate, we will give you specialized suggestion of whole work.

2. Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.

If you are interested in our machine, please feel free and contact me.
