• Model NO.：BSX-600
• After-sales Service：Online Support
• Transport Package：Wooden Box
• Specification：600*600*200mm
• Trademark：BaoYuanTong
• Origin：Shandong
• HS Code：8477401000
• Production Capacity：200sets,Month

Model

BSX-600

Working area(mm)(L*W)

600*600

Forming area(mm)(L*W)

540*540

Function

Suction & Blow

Max. suction forming depth(mm)

200

Oven open style

Automatic open

Heating area

1

Working table

Honeycomb working platform

Vacuum pump output

20m³/h

Total power(kw)

5

Working Voltage

AC220V/50HZ/1P

Net Weight (kgs)

230

Overall size (mm)  (L*W*H)

930*950*1300

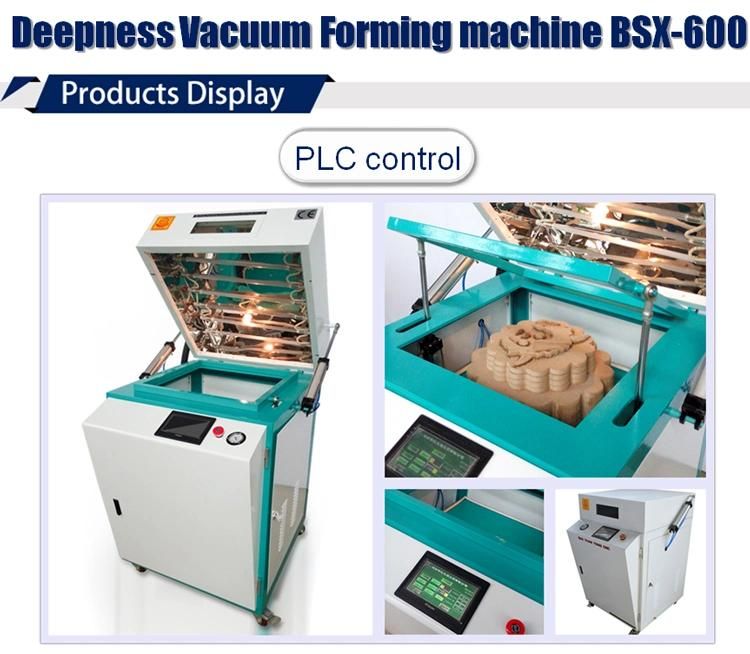

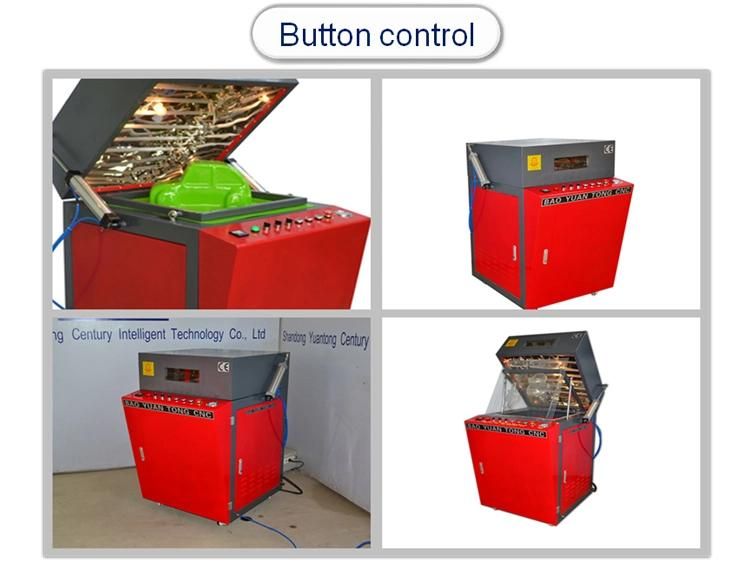

BSX-600 MINI Small Vacuum thermoforming machine for ABS PVC PET PMMA plastic






BSX-600 MINI Small Vacuum thermoforming machine for ABS PVC PET PMMA plastic

Packaging & Shipping

For the Package usually Most of the time we use the plywood case package, but only a few customers choose the PE film package. However, no matter which kind of packing is used, we must ensure the safety of the equipment in transportation. Here is the American customer feedback on our package:

User feedback
Our responsibility -- provide stable and reliable performance of the equipment and provide high-quality service, let every user satisfaction. (Click the picture, listen to user's voice)

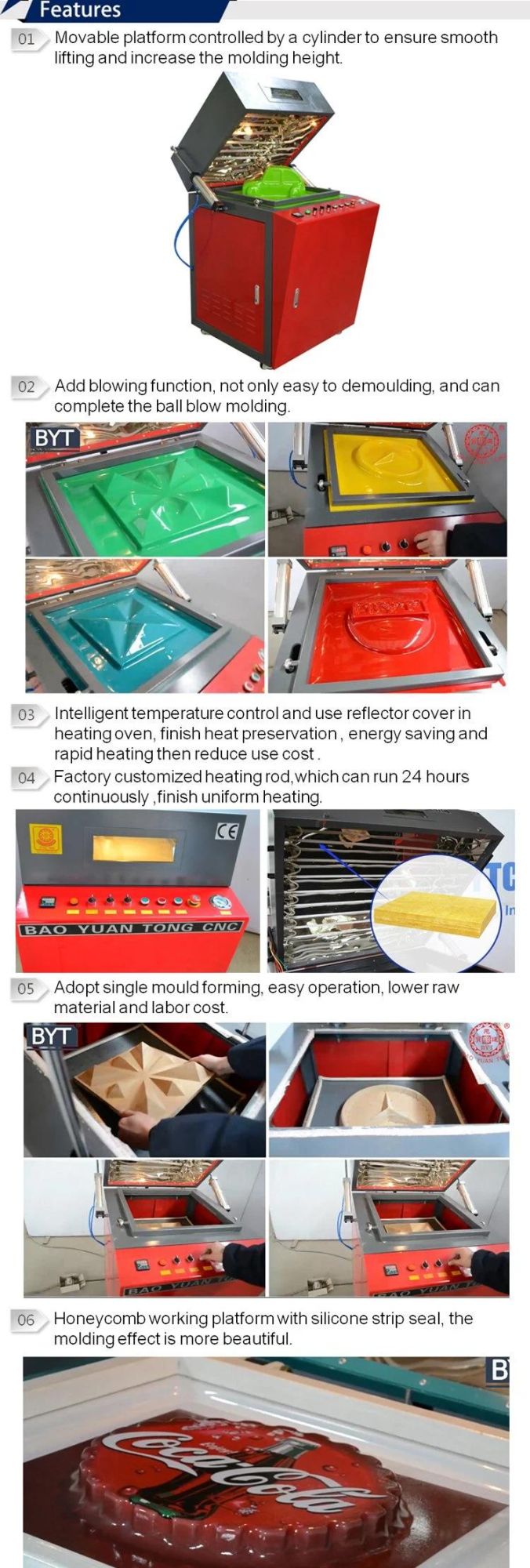

BSX-600 MINI Small Vacuum thermoforming machine for ABS PVC PET PMMA plastic

Service

1. What is a Vacuum forming machine?

It mainly uses a heating tube to soften plastic, then use vacuum pump extract vacuum, after cooling get the shape you need.

2. What is the vacuum forming machine used for?

Plastic mold, Mask making, signage making, package, Decoration, University research, etc.

3. Which material can use?

PMMA(Acrylic ), PVC,ABS,PE,PET ect.

4. How to choose a vacuum forming machine?

1) The material type and material thickness, Less than 6mm

2) Finish forming products size

3) Sample pictures

5. Which type of machine do you have?

Now mainly we have three type vacuum forming machine, the main difference:

1) BX series only has a suction function, the max forming height 80mm

2) BSX series have suction and blow function, the max forming height can meet 200-300mm 3

) BXY series have Press, suction and blow function, the max forming height meet 220mm when using blow function

For each type we have detail information, here have these three types of working video you can check, more detailed information contact us :

BSX-600 MINI Small Vacuum thermoforming machine for ABS PVC PET PMMA plastic

Company Information

SHANDONG YUANTONG CENTURY INTELLIGENT TECHNOLOGY CO., LTD This factory build in 1996, mainly produced vacuum forming machine, vacuum press, CNC router, laser machine and channel letter bending machine, the products export to more than 152 countries and get CE and SGS certification, service more than 2000 customers




BSX-600 MINI Small Vacuum thermoforming machine for ABS PVC PET PMMA plastic

FAQ

Q1 Which material can use? How to choose a vacuum forming machine?

A1 Vacuum forming machine can use PMMA(Acrylic ), PVC, ABS, PE, PET thermoplastic material.

About how to choose vacuum  former, usually, we need to know below questions

1) The material type and material thickness, Less than 6mm

2) Finish forming products size

3) Sample pictures

Q2 For this machine what is the working voltage, if you accept the customized voltage?

A2 The BSX-600 and BX-1400 working voltage 220V 50HZ 1P, another type normally working voltage is 380V/50HZ/3P, we can accept customized voltage, for example, 220V/60HZ/3P, 415V/60HZ/3P, etc.

Q3 When this machine working, if it needs any accessory equipment?

A3 If choose the heating box is moving by air cylinder ,when the machine working it need compressor air . For this machine working if you use MDF mold and want to make it by yourself, so you need to prepare a wood CNC router; When finish forming need to trim off the unwanted edge, need a trimmer. for these machines we all can provide

Q4 For the working area or forming height if you can accept customized?

A4 Yes, we can accept the customized working area and forming height, now we finish the BSX-2030 max forming height of 450mm.

Q5 After I buy this machine how you arrange training?

1)When delivery the machine with operation manual and video ,meantime all the files be saved in U disc ,send to you together .

2) After the machine delivery, our sales-service engineer will contact you and inform you, when receiving the machine contact with him, he will serve for you.

3)When you use this machine, any questions you can contact our after-sales service, they provide 24Hours/7Days online service
