• Model NO.：TS-A2-80MM
• Brand：Taiso
• Transport Package：by Sea
• Trademark：TAISO
• Origin：China
• HS Code：8477309000
• Production Capacity：15sets,Month

Basic Info.

Model NO. TS-A2-80MM Brand Taiso Transport Package by Sea Trademark TAISO Origin China HS Code 8477309000 Production Capacity 15sets/Month

Product Description

Features

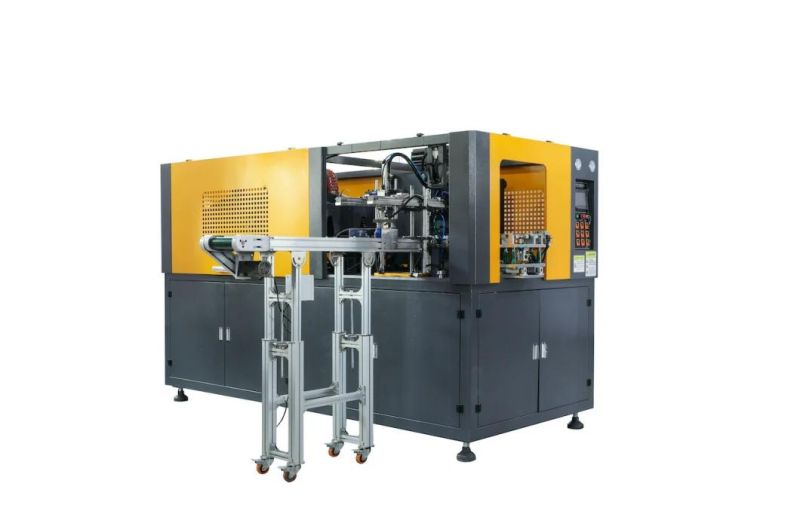

Apply to 0.5L-2L Jar bottles etc

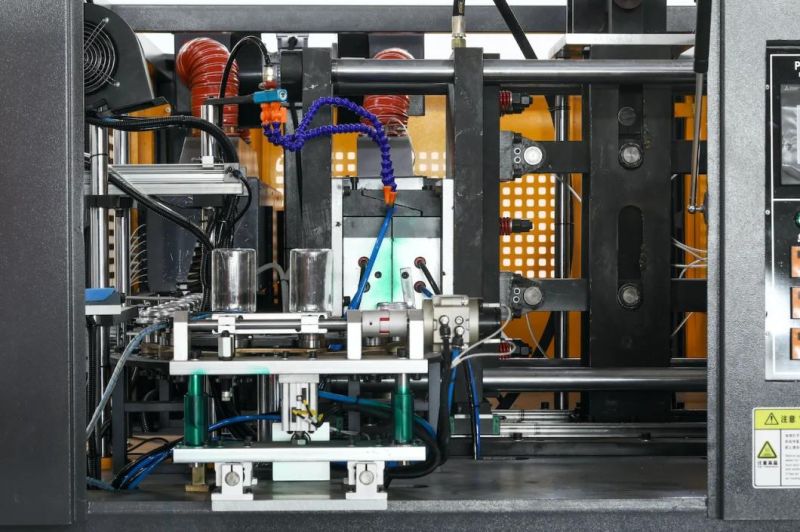

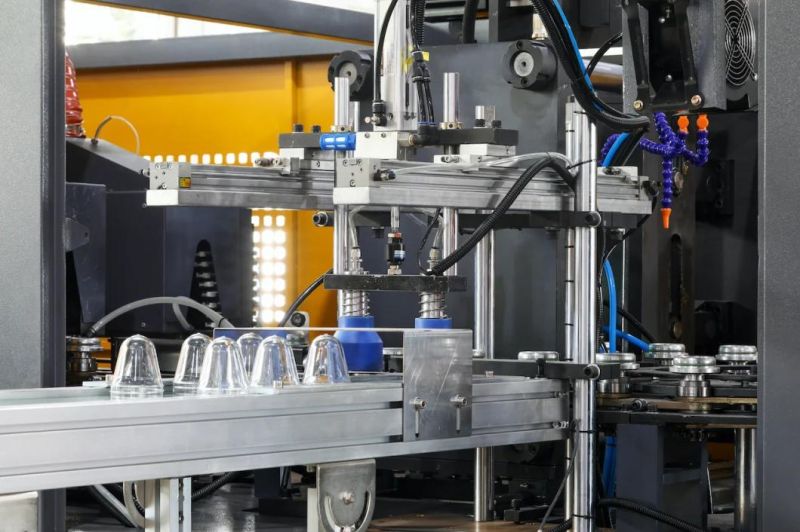

-Servo driving system, fast, stable and energy saving, optional servo clamping, preform loading and
stretching system
-Adopt pressurized plate to solve the mold swelling and big mold line problem

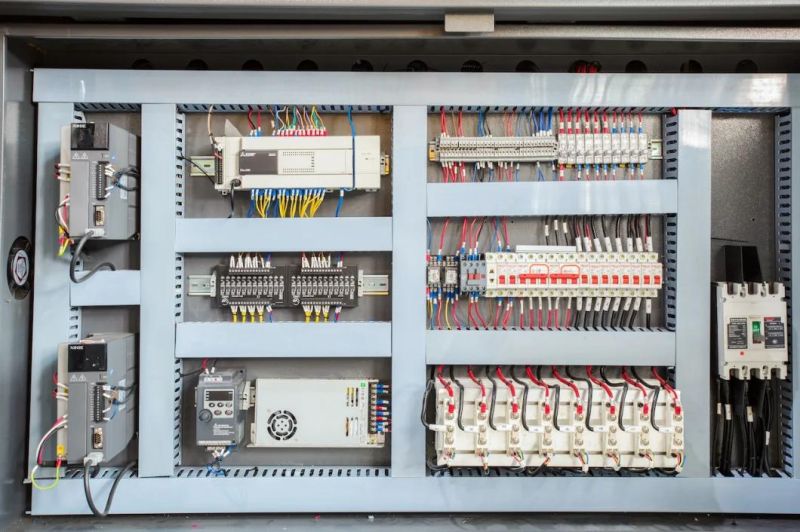

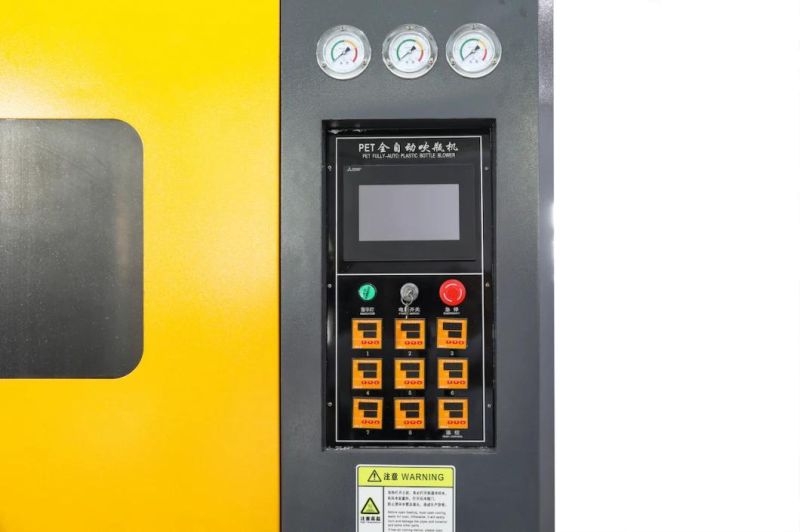

-Adpot human computer interface, PLC will automaticlly feedback fault point, easier maintain
-Adjustable lamps design makes the preform heating in the best situation
-Automatic oil adding device, can avoid the pollution risk of manual adding












Technique Parameter of blow molding machine:

ITEMS	Unit	TS-A1-120MM	TS-A2-80MM	TS-A2-120MM
Number of cavities	cavities	1	2	2
Max. volume	L	5	2	5
Neck size	mm	50-120	50-80	50-120
Max. Bottle dia.	mm	170	103	170
Max. Bottle height	mm	350	330	350
Theoretical output	bph	600-700	1500-1800	1000-1200
Rated power	kw	25	35	45
Power consumption	kw	12-15	15-20	20-25
Main machine size	m	2*1.4*2.2	2.7*1.8*2.1	3*1.9*2.2
Weight	kgs	1600	2500	3000
