Plastic Machinery

Ready Machine in Stock 400mm PVC Edge Band Sheet Line with Splitting System

Qingdao Weier Plastic Machinery Co., Ltd.
  • Product Type:PVC Board
  • Board Layers:Single Plate
  • Screw No.:Double-screw
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008

Base Info

  • Model NO.:SJSZ 65,132
  • Customized:Customized
  • Condition:New
  • Power Supply:380V Three Phase
  • Width:400mm
  • Thickness:0.2-4mm
  • Line Speed:Max.10m,Min
  • Edge Band Color:Any Color Available
  • Transport Package:According to Customers Needs
  • Specification:CE, ISO9001: 2008, SGS
  • Trademark:WEIER
  • Origin:Qingdao, China
  • HS Code:84772090
  • Production Capacity:10 Units Per Year

Description

Basic Info.

Model NO. SJSZ 65/132 Customized Customized Condition New Power Supply 380V Three Phase Width 400mm Thickness 0.2-4mm Line Speed Max.10m/Min Edge Band Color Any Color Available Transport Package According to Customers Needs Specification CE, ISO9001: 2008, SGS Trademark WEIER Origin Qingdao, China HS Code 84772090 Production Capacity 10 Units Per Year

Product Description

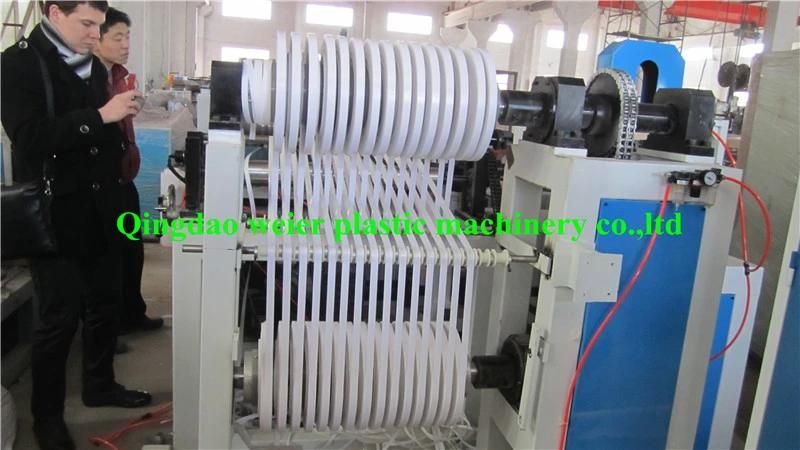

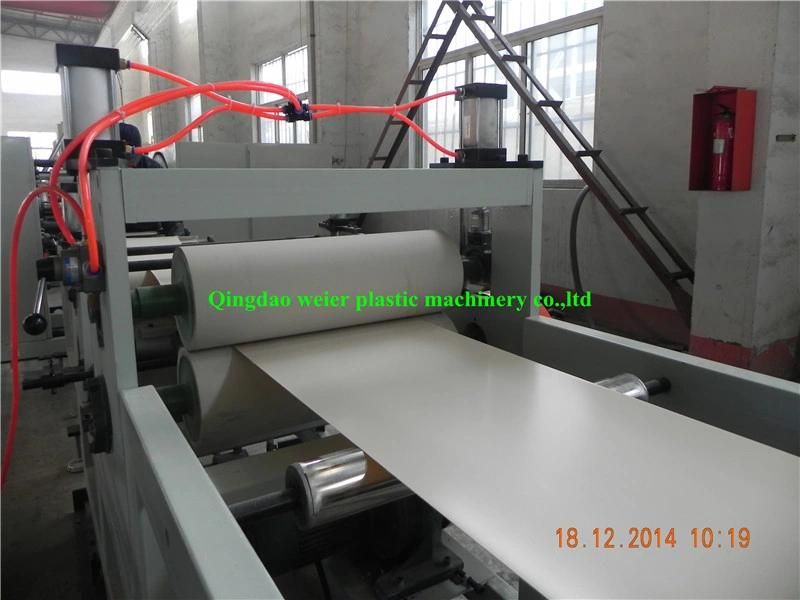

 Ready 400mm PVC edge band sheet production line with slitting system in stock

Ready Machine in Stock 400mm PVC Edge Band Sheet Line with Splitting System Ready Machine in Stock 400mm PVC Edge Band Sheet Line with Splitting SystemDescription :
1.PVC edge banding is mainly made of PVC resin,with plasticiser,stabilizer,lubricant,color powder and other chemical additives.It is thermoplastic coiled material.
2.Its surface can be printed as wood grain,marble vein,grain line and so on.
Soft gloss,bright color pattern,making people feel wooden reality and having stereoscopic impression.And it's also very clean with decoration feature.

Equipment list

NoitemQuantity
1Screw loader for extruder One set
2SJSZ-65/132 conical twin screw extruderOne set
3Hanger type moldOne set
4Electric control systemOne set
5Three roller calenderOne set
6Roll temperature regulatorOne set
7Cooling transmission bridgeOne set
8Side trimming unit One set
9Haul off machineOne set
10Length metering machine One set
11Gluing unit One set
12Haul off machine One set
13Double position winderOne set
14Spare parts One suit
Summary
Noitemparameter
1Suitable resinPVC process flow formula
2Max.Sheet width 400mm
3Sheet thickness0.4-2mm adjustable
4CapacityMax.180-250kg/hr
5Power supply380V 3phase 60HZ or as per your request
6Air consumption80L/min
7Water consumption100L/min

Welcome to visit us for ready running 400mm PVC edge band sheet line with splitting system.
-------------------------------------------------------------
