• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Condition：New
• Transport Package：Film Packing
• Specification：4*6*2.5m
• Trademark：WT
• Origin：China
• Production Capacity：100

Basic Info.

Automation Automatic Computerized Computerized Certification CE, ISO9001:2008 Condition New Transport Package Film Packing Specification 4*6*2.5m Trademark WT Origin China Production Capacity 100

Product Description

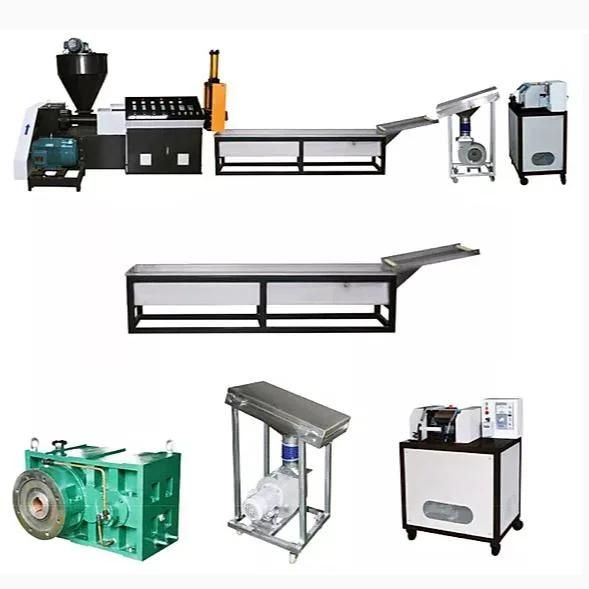

WT-A Plastic Recycling Machine



Introduction:
This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller. Characteristics: Main Technical Variables

Main Technical Variables:


Model	WT-A90	WT-A100	WT-A110	WT-A120
Type Diameter of Screw Stem	φ85	φ95	φ105	φ115
Major Diameter Ratio of Screw Stem  (L/D)	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	18.5kw	22kw	30kw	37kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2600kg	2800kg	3000kg	3200kg
Cover dimensions (l×w×h) (mm)	4000*1500*1800	4200*1500*1800	4400*1500*1800	4600*1500*1800
