• Model NO.：WTPC-630
• Computerized：Computerized
• Certification：CE, ISO9001:2008, QS, UL, GMP
• Shredding Power(Kw)：2*30
• Rotary Speed：39
• Rotary Diameter：848mm
• Mechanical Pushing Power：11kw
• Capacity：800-1000 Kg,H
• Keyword：PVC Tubing
• Connection：Electro Fusion Joint
• Feature：Anti-Corrosion
• Material：Polyethylene
• Application：Chemical Industry
• Transport Package：Seaworthy Packing
• Specification：3200mmX1700mmX2300mm
• Trademark：KWELL
• Origin：Zhangjiagang, China
• HS Code：8479820090
• Production Capacity：20 Set Per Month

Basic Info.

Model NO. WTPC-630 Computerized Computerized Certification CE, ISO9001:2008, QS, UL, GMP Shredding Power(Kw) 2*30 Rotary Speed 39 Rotary Diameter 848mm Mechanical Pushing Power 11kw Capacity 800-1000 Kg/H Keyword PVC Tubing Connection Electro Fusion Joint Feature Anti-Corrosion Material Polyethylene Application Chemical Industry Transport Package Seaworthy Packing Specification 3200mmX1700mmX2300mm Trademark KWELL Origin Zhangjiagang, China HS Code 8479820090 Production Capacity 20 Set Per Month

Product Description

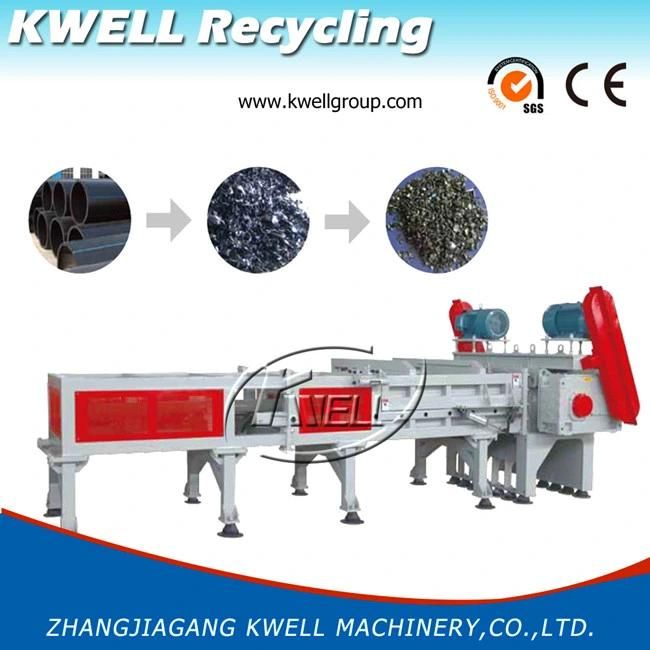

Long HDPE PVC pipe horizontal type shredder crusher
large big pipe horizontal type shredder crusher recycling machine

Machine Advantages:
1. The single shredder can shred various bulk materials, basket materials, pipe, plate, sheet, tire, big roll film, which are difficult to be shredded by single shaft shredder.

2. The frame is combinational structures, made from precision machined extra-thick sheet, slewing axis is forced, Lange-angle, hexagonal prism, the hopper is large-caliber, and substantial, so good-sized material is practicable.

3. Revolving knife is designed and processed particular in thickness, shape, arrange order and so on.

4. PLC control system, forward and reverse operate and stop automatically can protect the machine when the materials is too big and much. Operate safely, low-speed running, low noise, little dust.

5. The knife is made from special alloy steel, sturdy and durable.

Technical Parameters:

Model	Maxi shredding pipe Dia.	Shredding Power (kw)	Mechanical Pushing Power (kw)	Capacity (kg/h)
WTPC630	Φ630mm	2×30	11	800-1000
WTPC800	Φ800mm	2×37	15	1000-1200
WTPC1000	Φ1000mm	2×45	15	1200-1500
WTPC1200	Φ1200mm	2×55	18.5	1500-2000

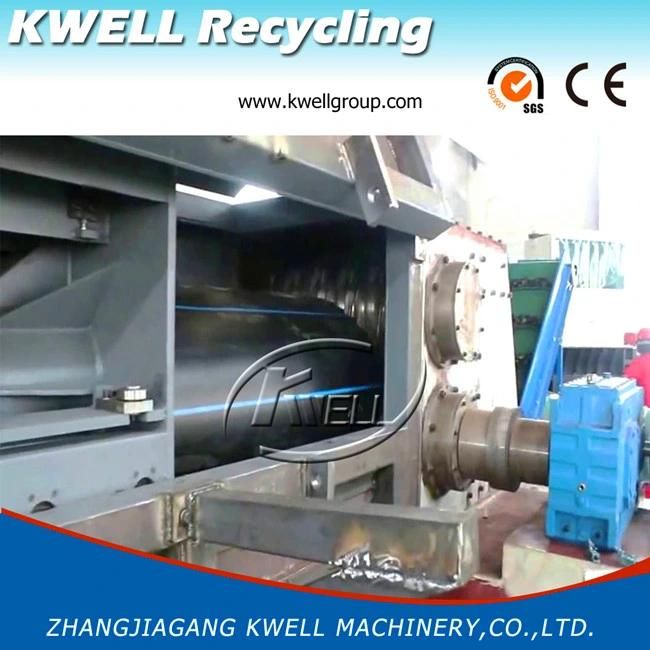

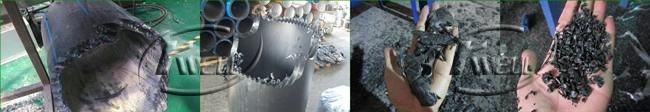

Product Photos:

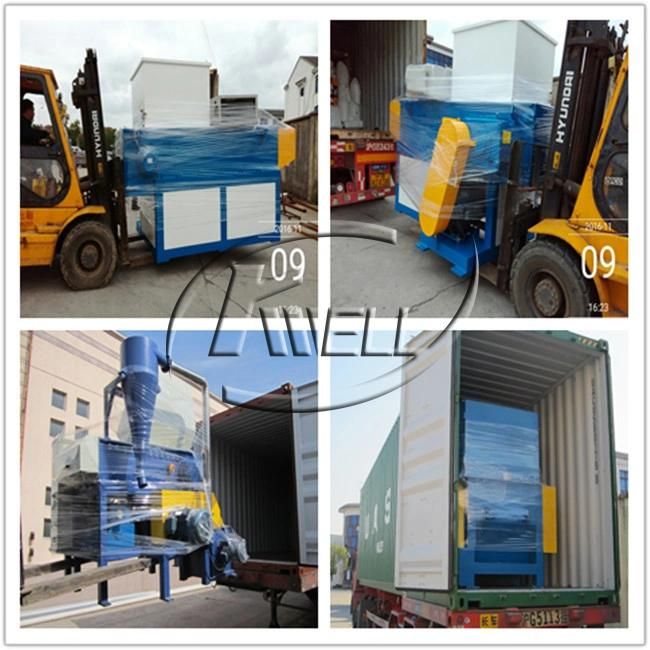

Machine packing details:


After-sale
1. Provide with installation, commissioning and training
2. Register and record customer information
3. Offer spare parts
4. Provide with necessary technical support for new application
5. Visit customer regularly and correct information

Why choose us:
1. Lower investment cost for a high quality and durable machine;
2. Low energy consumption with high production output;
3. Overseas installation and training are available;
4. Machine warranty with spares in stocking and in-time delivery;
5. Fast machine delivery and installation: KWELL produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers. The regular delivery time of an KWELL recycling machine is 20 days.
