• Model NO.：RCSJ RCDJ
• Computerized：Customized
• Certification：ISO9001:2008, CE
• Color：Could Be Customized
• Type of Extruder：Deagassing Tyep
• After-Sale Service：Engineers Available to Service Machinery Overseas
• Stage：Doulbe or Single or Multi
• Feeder Type：Force Feeder or Compactor
• Transport Package：Wrap Film
• Specification：TSSJ100~200 THSJ65~220 TCSJ85~180 TCDJ85~180
• Trademark：RETECH
• Origin：China
• HS Code：8477201000
• Production Capacity：300~3000kg,H

Basic Info.

Model NO. RCSJ RCDJ Computerized Customized Certification ISO9001:2008, CE Color Could Be Customized Type of Extruder Deagassing Tyep After-Sale Service Engineers Available to Service Machinery Overseas Stage Doulbe or Single or Multi Feeder Type Force Feeder or Compactor Transport Package Wrap Film Specification TSSJ100~200 THSJ65~220 TCSJ85~180 TCDJ85~180 Trademark RETECH Origin China HS Code 8477201000 Production Capacity 300~3000kg/H

Product Description

Top Quality PP PE Film Force Feeder Pelletizing Granulating Pelletizer Granulator Machine Line


1. Introduction and Application Top Quality PP PE Film Force Feeder Pelletizing Granulating Pelletizer Granulator Machine Line

1 Applicable plastic materials: PE, HDPE, LDPE, PP, etc.
2 Material shapes: rigid flakes, agglomerated film, soft films
3 Note: depending on different material properties, various downstream equipments are needed.
4 Better degassing and better quality with two stages

2.Features of Top Quality PP PE Film Force Feeder Pelletizing Granulating Pelletizer Granulator Machine Line

1 Remove the volatile material such as air, water or chemical material by strong vacuum degassing system
2 Twice filtering, guarantee the purity of the pellets
3 Complete auxiliary equipments, guarantee the machine running for 24 hours without stopping.
4 The moisture of pellets: below 1%

3.Side Force Feeding Type Pelletizing Line


Model	Screw Diameter(mm)	Main Motor Power(kw)	Side Force Feeder Motor Power(kw)	Capacity(kg/h)
TCSJ100/30	Φ100	55-75	5.5	150-200
TCSJ120/30	Φ120	75-90	7.5-11	200-350
TCSJ130/30	Φ130	90-110	11	300-400
TCSJ150/28	Φ150	132-160	15	350-500
TCSJ160/28	Φ160	160-185	15	450-550
TCSJ180/25	Φ180	185-200	18.5	600-800
TCSJ200/25	Φ200	200-250	22	800-1000

Remark: Double stage is optional. The above capacity is based on film scrap/rigid flake/agglomerated material, actual capacity varies on account of different condition of raw material.



PE film pelletizing machine/PP PE waste film woven bag pelletizer/PE PP pelletizing machine/PE film granulating line/ PE PP hard rigid flakes recycling pelletizing line

With proper extruding moulds, screws and auxiliaries machine, plastic pelletizing machine can used for granulating many kind of raw material such as PE, PP, XPS EPS and so on. We are leading of PE PP film recycling pelletizing machine in china and we can supply our customer best machine with the best price.

Feeding type for PE /PP pelletizing machine:
1. Hopper feeder (suitable for agglomerated material, hard scrap material)
2. With a separate agglomerator (suitable for film, bag etc)
3. Compactor (suitable for bundled big size film bag)
4. Reel feeder (suitable for film roller)
5. Side force feeder(suitable for film scraps, hard material scraps)
6. Vertical force feeder (suitable for film scrap and hard material scrap)

Pelletizing cutting type for PE film pelletizing machine:
1. Water ring cutting
2. Noodle string strand cutting

Extruder type for PE film pelletizing machine:
1. Single stage Top Quality PP PE Film Force Feeder Pelletizing Granulating Pelletizer Granulator Machine Line
2. Double (two)stage Top Quality PP PE Film Force Feeder Pelletizing Granulating Pelletizer Granulator Machine Line

Welcome to send inquiry for more detailed machine specification and price, I will send you competitive offer very soon!

Welcome to add me for instant talk and better service!
Thanks!




360°services:

Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services

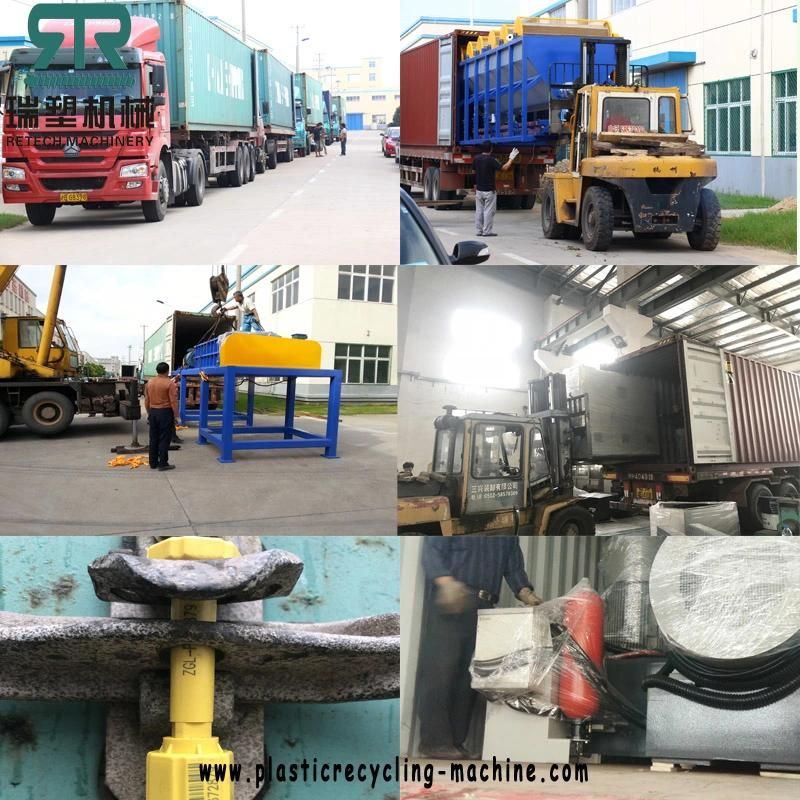

Package and Loading:


Contacts:

RETECH Machinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including ET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
