• Model NO.：5L4
• Theory Output：3500-4000PCS,Hr
• Max. Volume：2L
• Power：43kw
• Size of The Machine：6.5X1.5X1.9(M)
• Weight of The Machine：4000kg
• PLC：Mitsubishi
• Voltage：380V 220V or as Customer′s Request
• Bottle Mouth Maximum Overall Diameter：28-38mm
• Cyliners：SMC
• Transport Package：Wooden Package,According to Customer′s Request
• Specification：CE ISO
• Trademark：eceng
• Origin：Zhangjiagang Jiangsu
• HS Code：8477300000
• Production Capacity：10 Per Month


Bottle type specification
 cavity6output(PCS/HR)4800-5200Max. volume (L)2LBottle mouth maximum overall diameter (mm)28-38mmBottle biggest diameter100mmBottle maximum height330mm
Power specifications
 Light tube quantity32pcsLight tube power1.25kwMaximum heating power40kwAll electric machine installation43kwActual consumption21.5kw
Air pressure specification
 Work pressure7-9kg/cm2Low-pressure gas consumption1600Ltr/minBlow bottle pressure25-35kg/cm2Higher -pressure gas consumption4000 Ltr/min
Frozen water specification
 Work pressure5-6 kg/cm2Temperature range10Consumption8000kcal/hrFrozen water flow88Ltr/minMachine specificationSize of the machine5.2x1.6x1.9 (m)Weight of the machine4ton

Our Service
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.
The sample service
1.we can send you the video of the running machine.
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get  the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).
2.at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

well-known for its fine quality for plastic bottle blowing machine
After sales service
1> Find our products through ecengmachinery.en.made-in-china.com Alibaba,GlobalMarket,Made in China,Globalsources,Tradekey.
2>After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.
3>Every 3 year , we can help to overhaul the machine freely(labor).
4>Free production technology and process configuration.
5> We can help you to design the product line , workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $60/day during the engineer's journey.
7>Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .


Transportation:
   It is located in the beautiful port city of Zhangjiagang with convenient traffic; it's about 150 km away from Shanghai.
Products:
   PVC/HDPE/PP-R pipe extrusion line, PVC & WPC profile extruding line and plastic sheet production lines with the relative auxiliary machine, PE film/ PET bottles recycling line and pelletizing lines.
Market:
   Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We received the universal confirmation and trust from our customers except of the precious experience.
Idea:
   Abide by the logos of "Sincerity, Development, innovation, Win-Win" constantly, we are honorable to cooperate with friends at home and abroad by providing the high quality products, technology and service!

   welcome to you visit our factory!!!

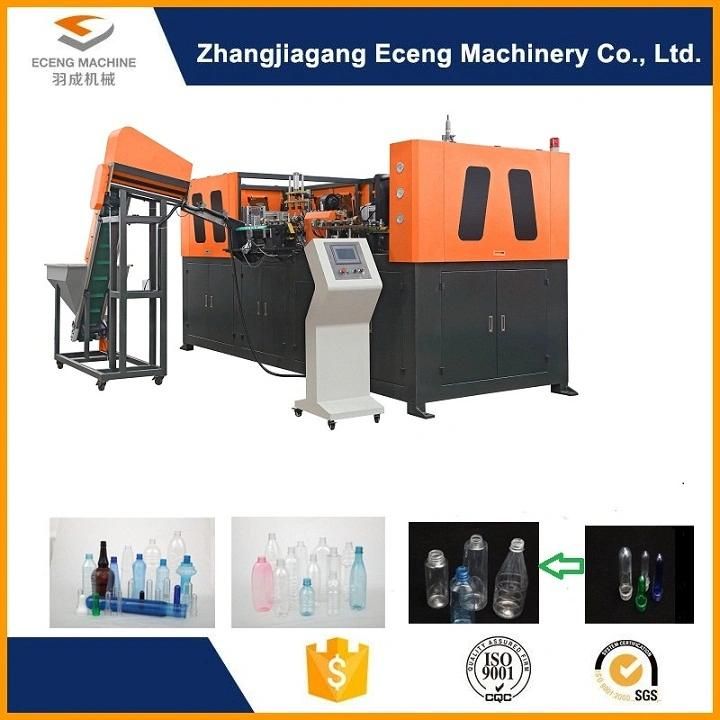

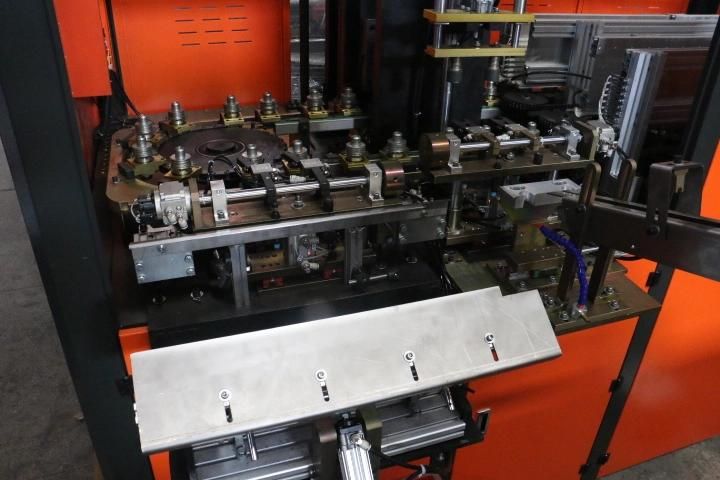

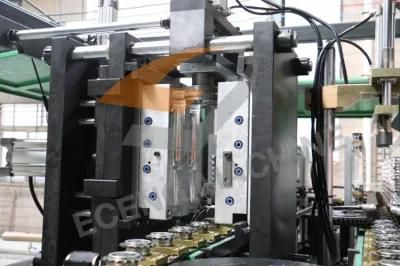

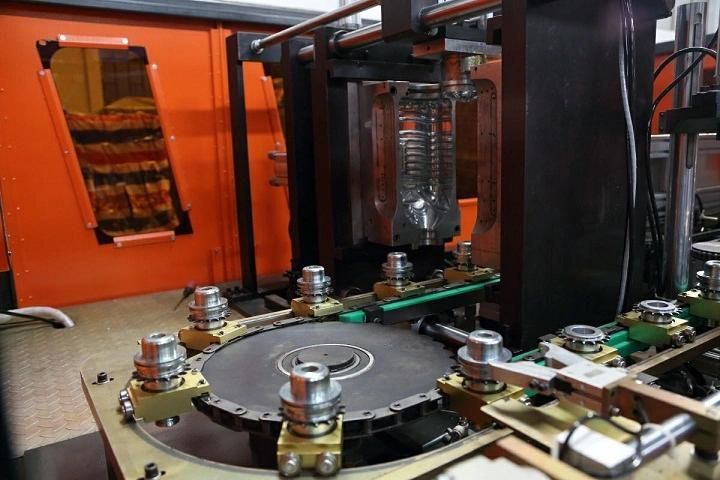

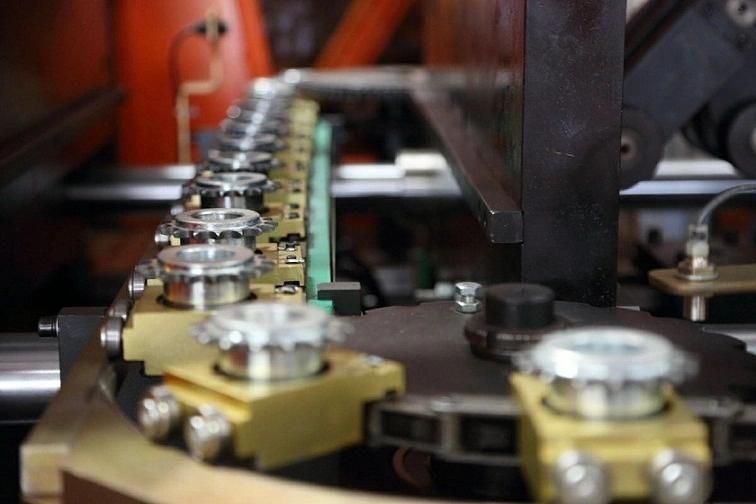

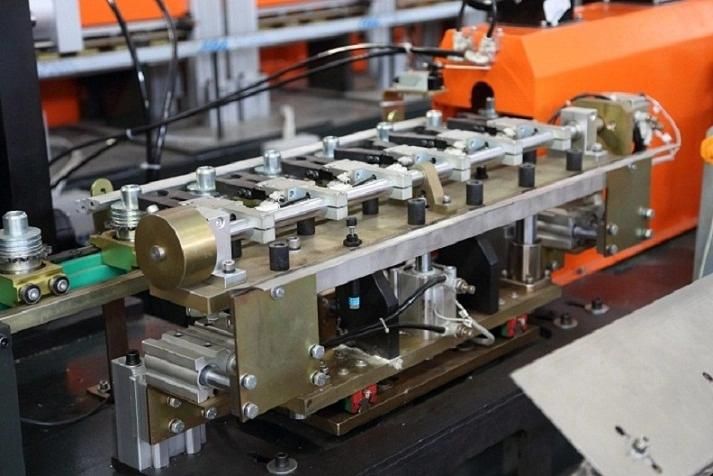

Machine pictures




Contact person:Judy Wang

Mob:+86-15950978699
