4cavity Plastic Bottle Pet Blowing Machine
Jiangsu Faygo Union Machinery Co., Ltd.- Type：Stretch Blow Molding Machine
- Cavity Number：4
- Hourly Output：7200bottles,Hour(@500ml)
- Working Power：25kw
- High Pressure Require：6m3,30bar
- Motors：Servo Motor Control
Base Info
- Blowing Valve：American Parker
- Electrical Element：Mistubishi,Siemens
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Transport Package：Covered by PE Film
- Specification：FG-4
- Trademark：Faygo
- Origin：Jiangsu Zhangjiagang
- HS Code：84779000
- Production Capacity：6500-7200bph
Description
Main ParameterModel FG-4 Applicable Preform Height <330mm Neck 20mm-25mm Applicable Bottle Neck 20-25mm Volume Max. 2Liter Height Max. 328mm Diameter Max. 105mm Electric consumption Install power 51kw Air consumption Pressure 3.0MPa Capacity 4m3/min Mold Chiller Pressure 4-6Bar Temperature 6-13ºC Flow 45L/min Oven Chiller Pressure 4-6Bar Temperature 6-13ºC Flow 26L/min Machine Dimension L*W*H 3900*900*2500mm Weight 3500kg Capacity: 5000-5500BPH(based on 1L) Max. Volume: 2 Litter
Total Size:
Blowing Main machine: 3.6*1.3*2.3m
Sorting machine: 2*1.5*1.5m/Loader: 3*1*1.5m Main electrics Pneumatic part& Cylinder Valve German FESTO Electric part PLC Japan Mitsubishi Servo System Japan Panasonic Frequency inverter Japan Mitsubishi Operating system Japan Mitsubishi Touch screen Japan Mitsubishi Blowing Valve Japan Parker One-way Valve German FESTO Throttle Valve German FESTO Reducing Valve German DURAY Note: All the electrical components adopts CE, UL, CCC approved international
Advanced high-tech product
I. Brief Introduction:
FG4 is the new generation of linear blowing machine. Comnpared with traditional blowing machine, It has 3 improvement:
1)High speed: China first blowing machine whose single mold speed can reach 1800 BPH. FG4 has 4 cavities, production speed is 6500-7200BPH.
2) Energy saving: It has only 2 lamp boxes, at least 20000USD can be saved per year, electrical ammeter is equipped, you can know how much every single bottle costs you.
3) High Reliability: Machine adopts modularized design principle, the movement is integrated in 3 sets servo motor, which promises this machine will have good condition under full load operation.
II. Technical Features:
1. Servo driving and cam linking movement blowing section:
The unique cam linking system integrates mold-opening, mold-locking and bottom mold-evevating in one movement, equipped with high speed servo motor, which greatly shortens the blowing cycle and accelerates the spped.
2. Minimize distance of heating heads,maximize the heating efficiency.
Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven it can save more than 30% consumption.Equipped with the air cycling system and redundant heating discharge system it ensures constant temperature in the heating zone.
3. Efficient and soft perform inlet system,ensure the spped and preform protction.
By rotary and soft preform loading system, the speed of preform feeding is ensured, meanwhile, the preform neck is well protected.
4. Modularized design conception, convenient for maintenance and changing changeovers
The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.
III.After sale Services
1) Stand-by engineers team to provide overseas installation and commissioning service.
2) 1 year warranty. During warranty, we provide free of charge for repairing cost.
3) Lifetime maintenance. After-sales department can provide life long maintenance service.

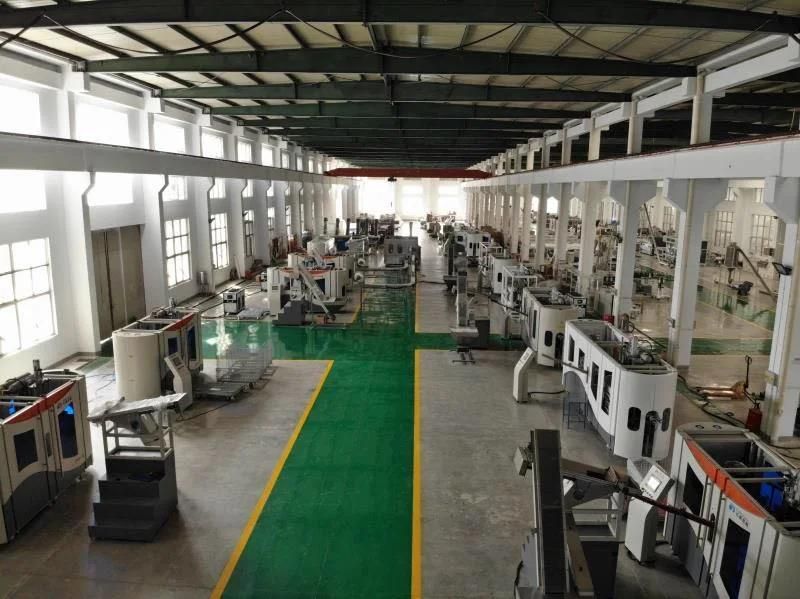

Welcome to visit our factory if you have time!
