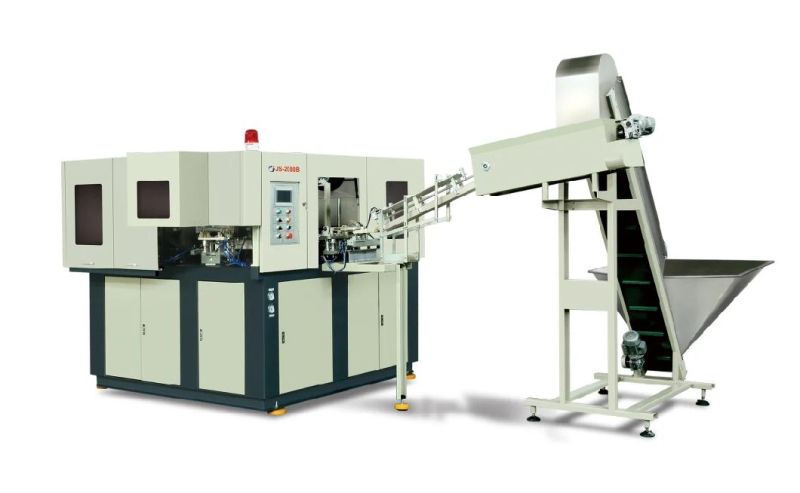

0.1-5L 2 Cavities Automatic Pet Bottle Making Machine/Blow Moulding Machine

Taizhou Jiansheng Machine Co., Ltd.
  • Type:Stretch Blow Molding Machine
  • Automatic Grade:Automatic
  • Warranty:1 Year
  • Bottle Liter:1-5L
  • Machine Cavity:2
  • Material:Pet

Base Info

  • Model NO.:JS2000B
  • Machine Output:1200-1600
  • Raw Material:Pet
  • Making Method of Parison:Stretch Blow
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE
  • Transport Package:Wooden Box
  • Specification:SGS, CE
  • Trademark:JS
  • Origin:Taizhou
  • HS Code:84773090
  • Production Capacity:1400-1800PCS,H

Description

0.1-5L 2 Cavities Automatic Pet Bottle Making Machine/Blow Moulding Machine

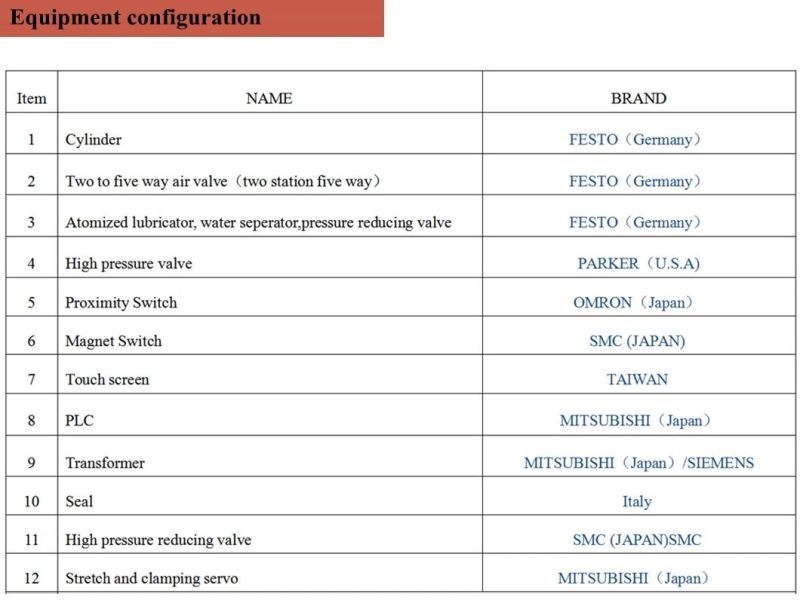

1.High quality compact machine Most popular pet bottle blowing machineJS-2000B With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)

2.Nontoxic conveyor belt to carry preforms
3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4. Easy to maintain
5. Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.

 Model No.UnitJS-2000BProduction capacityBPH1200-1600Number of Cavity/2Clamping forceKN380Mould opening strokemm230Stretch strokemm350Max.Container Volumeliters5Max. Neck Sizemm50Max.Bottle diametermm180Max.Bottle heightmm350Installed Powerkw44Max.Heating Powerkw40Operating Air Pressurekg/cm²8Operating Air Consumptionliters/min2000Blowing Air Pressurekg/cm²30-35Blowing Air Consumptionliters/min4600Cooling Water Pressurekg/cm²4-5Cooling Water Temperature°C10-20Cooling Water Flowliters/min100Measurement(L*W*H)m2.6*2.25*2.4WeightTon3.5

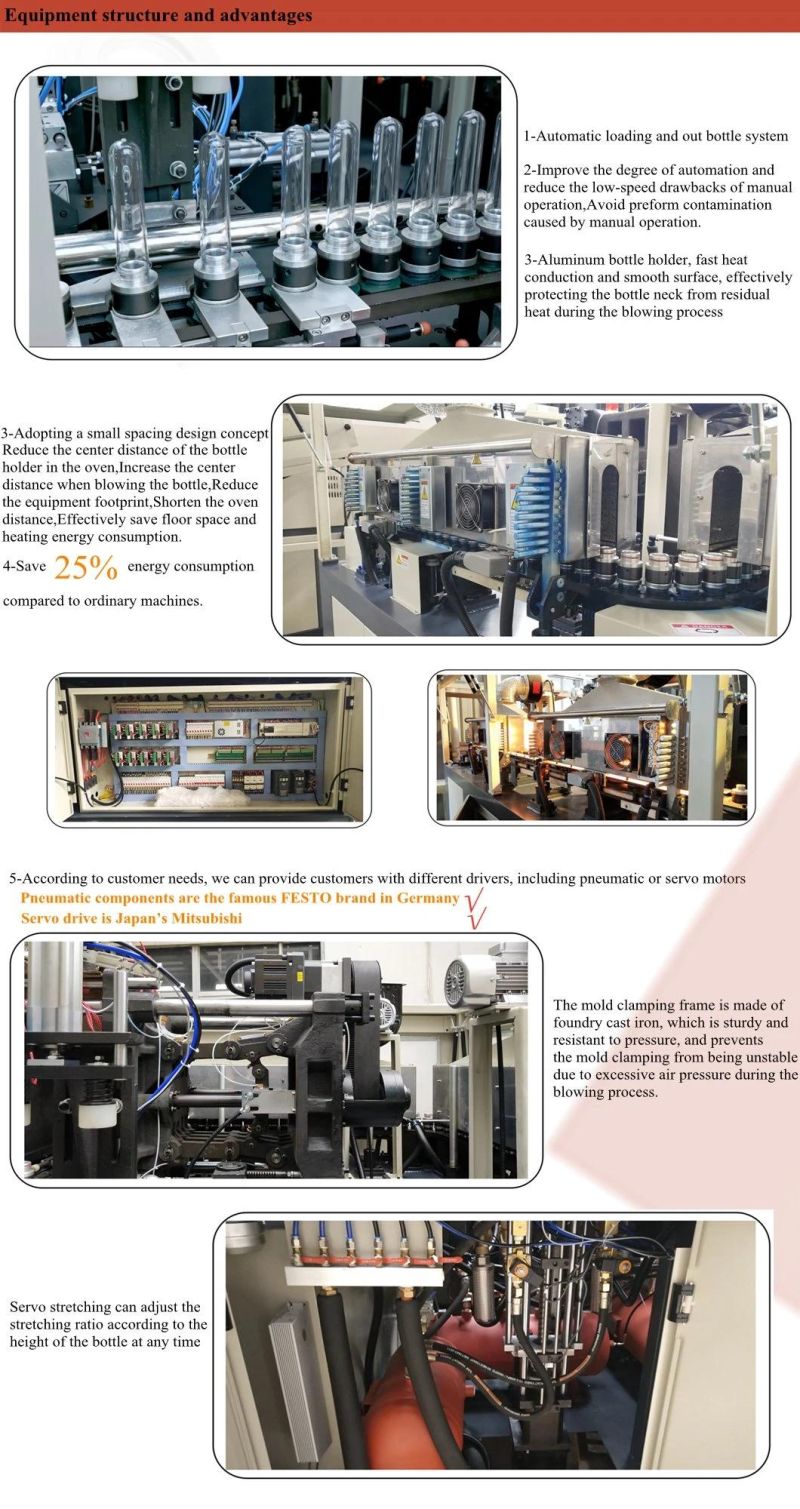

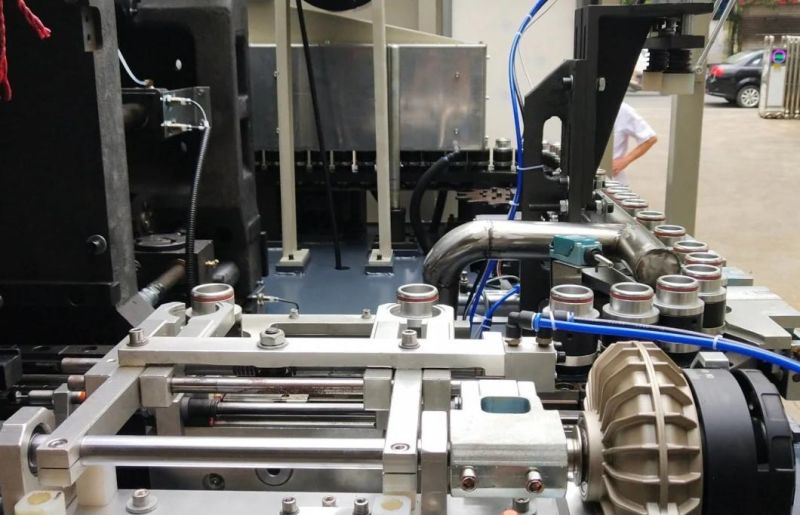

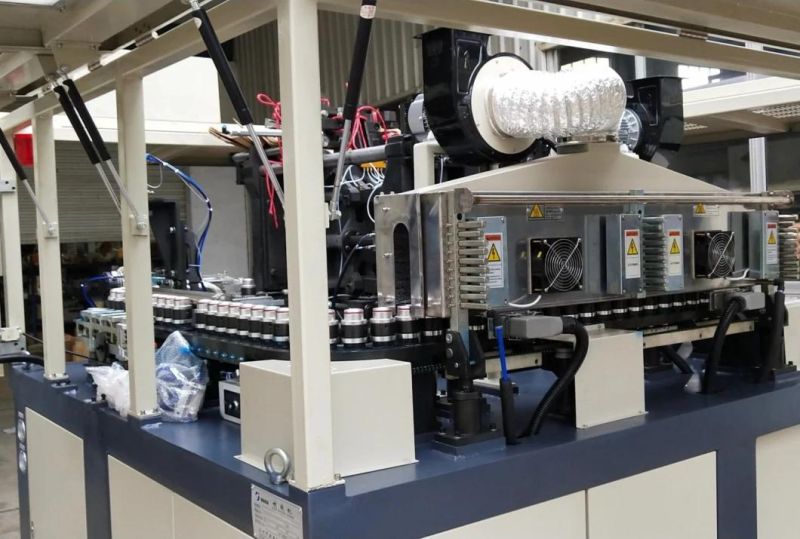

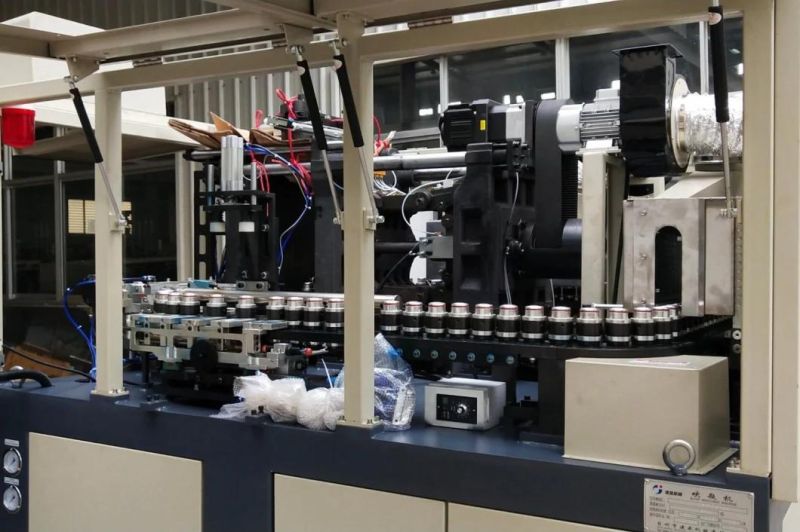

Internal details of the Machine0.1-5L 2 Cavities Automatic Pet Bottle Making Machine/Blow Moulding Machine0.1-5L 2 Cavities Automatic Pet Bottle Making Machine/Blow Moulding Machine0.1-5L 2 Cavities Automatic Pet Bottle Making Machine/Blow Moulding Machine
