• Model NO.：PVC 20, 63, 110, 315, 630, 1000
• Customized：Customized
• Condition：New
• After-sales Service：24 Hours on Line
• Controller：Siemens PLC
• Output Pipe Size：50~250mm
• Motor Brand：Siemens, Weg, Sew
• Gearbox：Vertical Type Sew,Falk Brand
• Inverter：ABB,Schneider,Siemens
• Bearing：SKF, NSK
• Barrel & Screw Material：Bimetallic Barrel & Screw
• Output Capacity：700kg,H
• Raw Material：UPVC,CPVC,PVC Powder
• Transport Package：Wooden Pallets
• Specification：PVC pipe extrusion machine cost
• Trademark：KITECH
• Origin：China
• HS Code：8477209000
• Production Capacity：50sets,Year

Basic Info.

Model NO. PVC 20, 63, 110, 315, 630, 1000 Customized Customized Condition New After-sales Service 24 Hours on Line Controller Siemens PLC Output Pipe Size 50~250mm Motor Brand Siemens, Weg, Sew Gearbox Vertical Type Sew/Falk Brand Inverter ABB/Schneider/Siemens Bearing SKF, NSK Barrel & Screw Material Bimetallic Barrel & Screw Output Capacity 700kg/H Raw Material UPVC/CPVC/PVC Powder Transport Package Wooden Pallets Specification PVC pipe extrusion machine cost Trademark KITECH Origin China HS Code 8477209000 Production Capacity 50sets/Year

Product Description

U-pvc Pipe Making 110mm Pvc Pipe Extruding Machines.

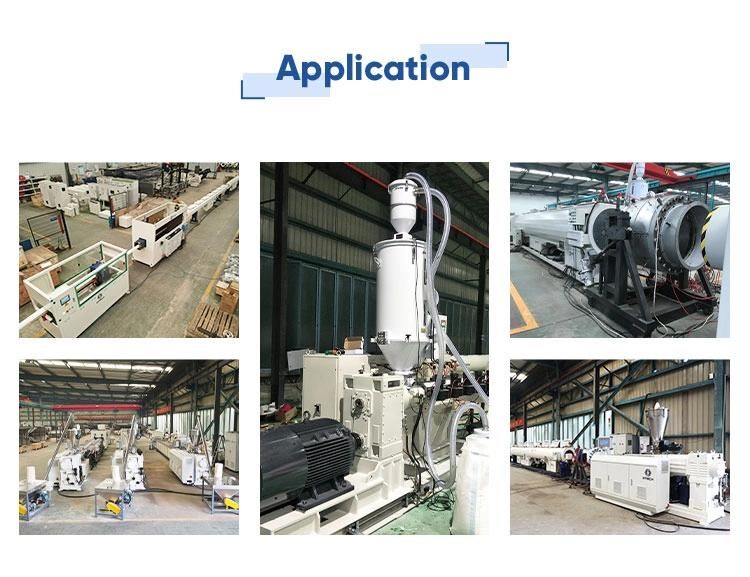

Application:
PVC Plastic pipe making machine is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.

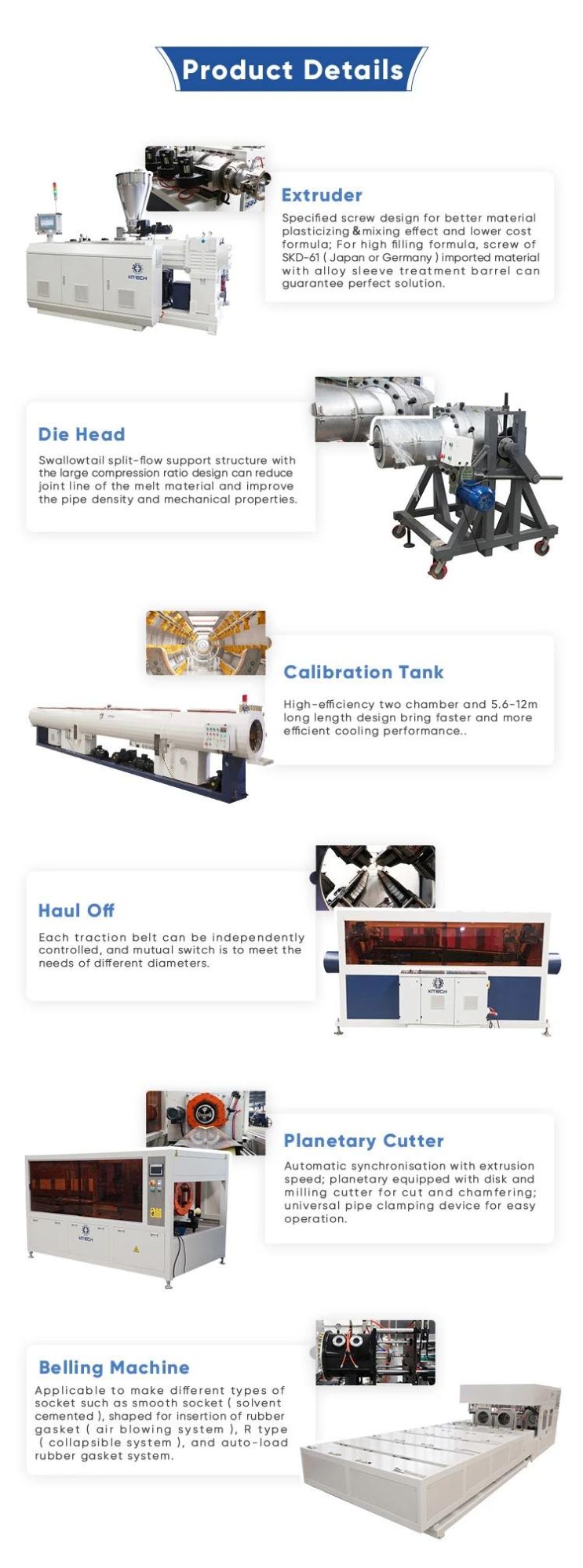

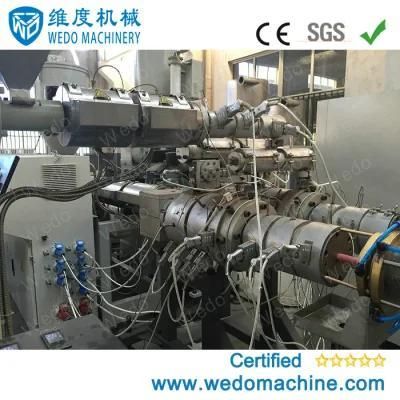

The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.
Producing pipe diameter range: Φ16mm-Φ630mm.
And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
110mm pvc water supply pipe extrusion tube extruding hose extruder machine

Advantages:
1. Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;
2. Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design;
3. Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;
4. Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more efficient cooling;

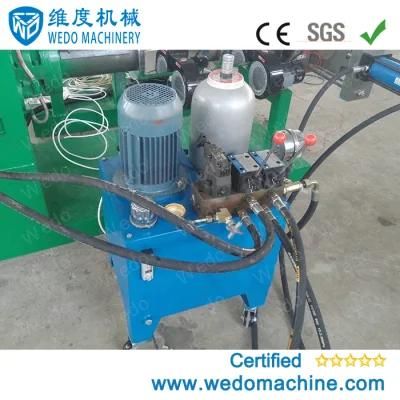

5. Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;
6. U type, R type and Air blow type socket can be provided according to applications;
7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.
110mm pvc water supply pipe extrusion tube extruding hose extruder machine



Technical Parameter:

Diameter ranges(mm)	Extruder model	Max. Capacity(kg/h)	Max. lineal speed(m/min)	Extruder motor power(kw)
16-32 (4-cavities)	ACE65/132	300	10*4	37
20-63 (Dual)	ACE65/132	300	15*2	37
50-160	ACE65/132	300	8	37
75-250	ACE80/156	500	6	55
110-315	ACE80/156	500	4	55
75-160 (Dual)	ACE92/188	850	6	110
315-630	ACE92/188	850	1.2	110


Technical Parameter of Main extruder:

Model	Power (kw)	Screw Diameter (mm)	Screw Qty.	Designed Output (kg/h)	Dimension(L*W*H) (mm)
ACE-45/90	15	Φ45/90	2	70	3360x1290x2127
ACE-51/105	18.5	Φ51/105	2	100	3360x1290x2127
ACE-55/110	22	Φ55/110	2	150	3620x1050x2157
ACE-65/132	37	Φ65/132	2	300	3715x1520x2450
ACE-80/156	55	Φ80/156	2	400	4750x1550x2460
ACE-92/188	110	Φ92/188	2	750	6725x1550x2814


 Main components:
- Motor: Siemens, WEG, SEW
- Gear reducer: SEW, FALK
- Bearing: SKF, FAG, NSK
- Air cylinder: Festo, SMC, AirTac
- PLC interface and module: Siemens, Schneider, Beckhoff
- Frequency inverter: ABB, Schneider, Siemens
- Servo motor: Lenze, Delta
- Pressure sensor: Dynisco, Gefran
- Low voltage component: Siemens, Schneider, Omron, LS
- Temperature controller: Omron, RKC
- Solid state relay: Crydom, Celduc


About  KITECH:
Kitech is a creative company, focusing on R & D of plastic extrusion system, and providing the equipments and solutions for plastic pipe, profile, tile, sheet and board.
Kitech products fulfill the needs of users in a very direct way due to over 25 years of knowledge and experience in plastic extrusion field, which also helps us to contribute actively to the success of customers by offering sustainable solutions that meet industry needs.
Kitech offers a complete portfolio of support and consulting services all the time, from project engineering to custom financing solutions, after sales service at its best, ongoing production optimization, training and advisory services, even end product development.

Why KITECH:
- Specialized R & D team involved in plastic extrusion industries over 25years.
- Ability to provide the customized plastic extrusion solutions.
- Complete sales system covering the pre-sales, sales and after-sales service jobs.
- Professional sales team with local language speaking ability for English, Portuguese, Spanish, Turkish and Russian markets.
