• Model NO.：FT-1000
• HS Code：8477800000
• Production Capacity：20set,Mont

Basic Info.

Model NO. FT-1000 HS Code 8477800000 Production Capacity 20set/Mont

Product Description

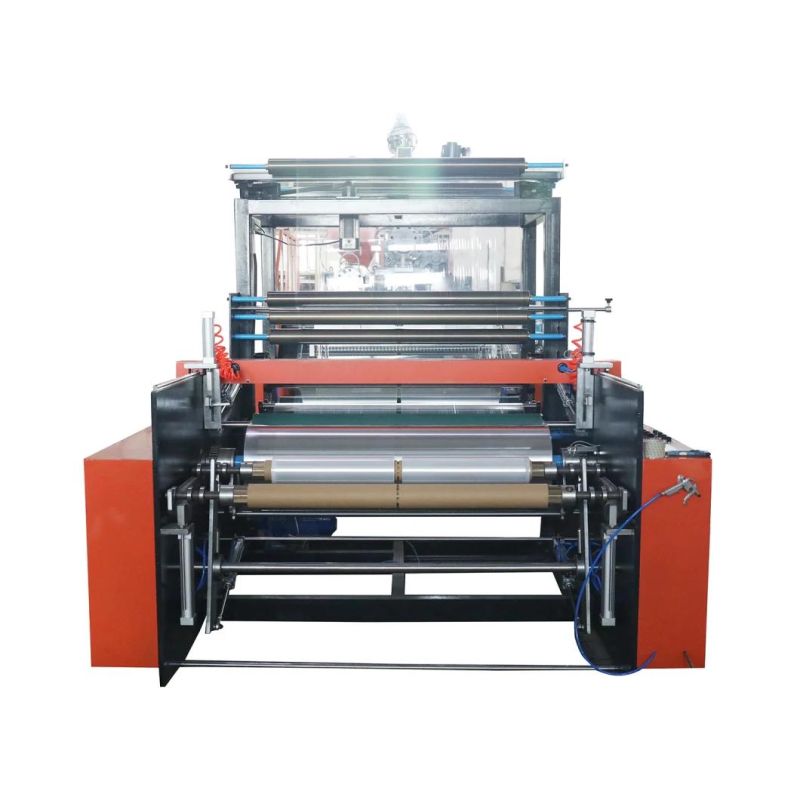

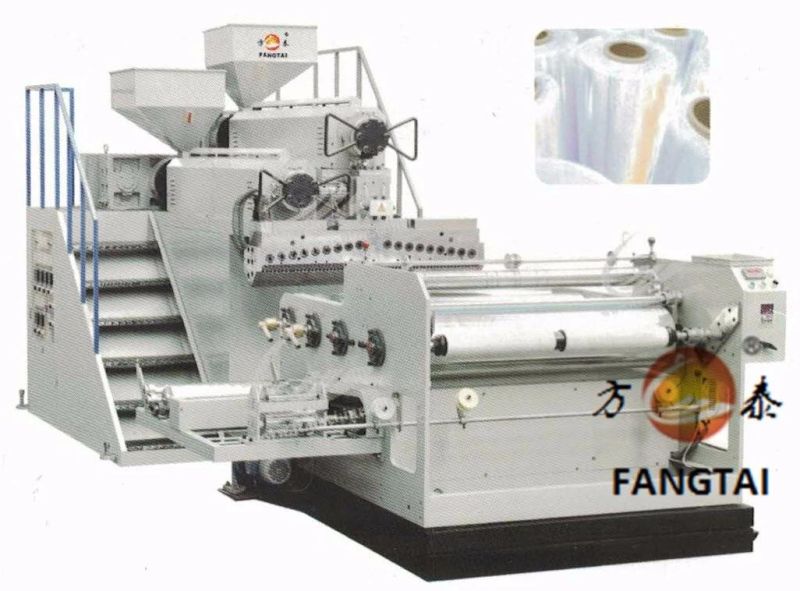

Fangtai Single/Double layer Co-extrusion Stretch Film Making Machine




Use
This unit uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky wrapping film.The film has good tensile strength,anti-pricking ability and impact strength.Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust.The transparency and tensile strength of this product can make the packaging beautiful,economical and practical.The film can be widely used in wrapping or palletized goods.It is a good substitute for hot shrinking packaging film during transportation.

Main Technical Variables

Model	FT-1000(Double-layer)	FT-1000(Single-layer)
Diameter of Screw	Φ65*2	Φ70
L/D Ratio of Screw	28:1	28:1
Linear Speed of Machinery(m/min)	50-100	50-100
Width of Die Head(mm)	1250	1250
Width of Finished Products(mm)	1000(500*2)	1000(500*2)
Thickness of Finished Products(mm)	0.015-0.05	0.015-0.05
Structure of Film Layers	A/B	---
Max.Output(kg/h)	80	80
Main Motor Power(kw)	22*2	30
Total Power(kw)	140	120
Overall Dimensions(L*W*H)(m)	7.5*4.5*3.2	7.5*4*3.2
Weight(kg)	5.5T	4.5T
