• Model NO.：SJSZ 65,132
• Condition：New
• Machine Name：PVC Twin Pipe Extrusion Line
• Diameter Range：16-50mm
• Capacity：80-150kg,Hr
• Line Speed：2-12m,Min
• Extruder Power：37kw
• Inverter：ABB
• Control System：PLC Control System
• Dimension：25* 2.5* 3 M
• Operator：2-3person ,Shift
• Warranty：12monthes
• Transport Package：PE Elastic Film or Wooden Case
• Specification：CE, ISO9001: 2008, SGS
• Trademark：WEIER
• Origin：Qingdao China
• HS Code：84772090
• Production Capacity：60sets,Year

Basic Info.

Model NO. SJSZ 65/132 Condition New Machine Name PVC Twin Pipe Extrusion Line Diameter Range 16-50mm Capacity 80-150kg/Hr Line Speed 2-12m/Min Extruder Power 37kw Inverter ABB Control System PLC Control System Dimension 25* 2.5* 3 M Operator 2-3person /Shift Warranty 12monthes Transport Package PE Elastic Film or Wooden Case Specification CE, ISO9001: 2008, SGS Trademark WEIER Origin Qingdao China HS Code 84772090 Production Capacity 60sets/Year

Product Description

16mm-50mmPVC Double Pipe Extrusion LineFor Pipe extruding:
The production line is mainly used in production PVC double-pipe,raw material is PVC resin+ other ingredients;final Products is PVC water/sewage pipe.

The produced pipes are suitable for wall bushing and others. It adopts two-pipe extruding to improve production efficiency and to make the products be used in convenience and safety

U-PVC Twin-pipe Machine Unit
Main extruder SJSZ-65*132 conical twin screw extruder
Double pipe diameters(mm) φ 16-φ 50
Production capacity(kg/h) 80-150
Hauling off speed(m/min) 2-12
Power of haul off(kw) 1.5*2
Power of cutting(kw) 0.75*2
Rotation speed of cutting machine(r/min): 2820
Cooling mode spray water cooling
Pneumatic circuit pressure(Mpa) 0.4-0.6
Length of stacker(mm) 6000



Process flow:
PVC powder + additive --- mixing---spring feeder---twin screw extruder---mould and calibrator---vacuum forming machine---haul-off machine---cutting machine---discharge rack

Equipment list as follows:

NO.	Equipment	Qty.

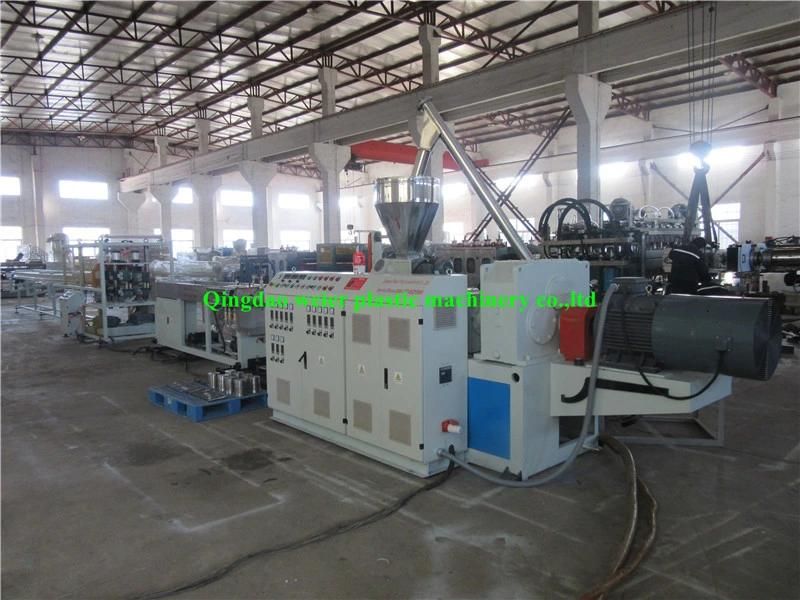

1	SJSZ65/132 twin screw extruder with screw loader	1set
2	Mould(including die , mandrel , sizing sleeve , heating ring)	2sets

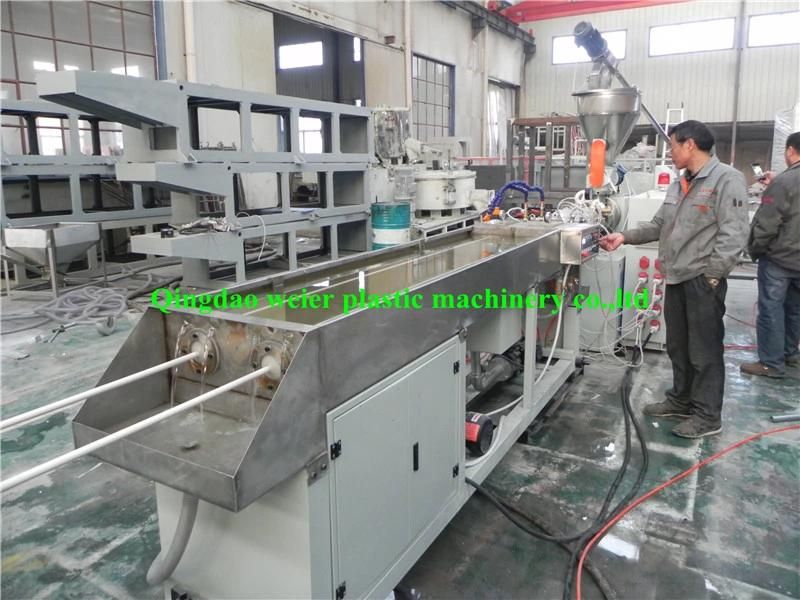

3	Twin pipe vacuum calibration tank	1set
4	Twin pipe haul-off unit	1set
5	Twin pipe cutter	1set
6	Stacker	1set

Welcome to visit our factory for ready running PVC twin pipe making line !!!
-------------------------------------------------------------
