16 20 25 32 40 50 63 75 90mm Plastic Corrugated Pipe Machine

Qingdao Tongsan Plastic Machinery Co., Ltd.
  • Type:Pipe Extruder
  • Plastic Processed:PE
  • Product Type:Pipe Extrusion
  • Feeding Mode:One Feed
  • Assembly Structure:Integral Type Extruder
  • Screw:Single-Screw

Base Info

  • Model NO.:SJ65
  • Engagement System:Full Intermeshing
  • Screw Channel Structure:Deep Screw
  • Exhaust:Don′t Exhaust
  • Automation:Automatic
  • Computerized:Computerized
  • Pipe Diameter:16-50mm
  • Speed:20m,Min
  • Material:PP PE PVC PA EVA
  • Motor:Siemens
  • Inverter:ABB
  • Temperature Control:Omron
  • Transport Package:Shipping Packing
  • Specification:SJ65,30
  • Trademark:TS
  • Origin:China
  • HS Code:8477209000
  • Production Capacity:100sets,Year

Description

granule:
PP PE PA
EVA PVC
SJ65B9-5020-3072SJ6516-634-1072/52SJ509-324-1052SJ455-1320-3063PVC powderSJ51/10516-5020-3072
16 20 25 32 40 50 63 75 90mm Plastic Corrugated Pipe Machine

5. details of plastic corrugated pipe machine

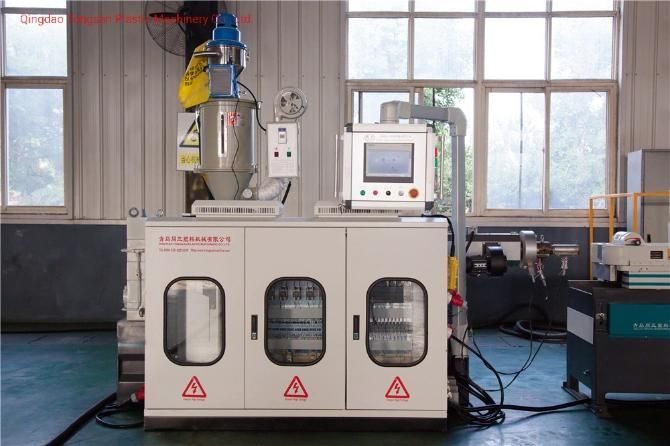

a.  extruder SJ65/30 single screw 1) with auto feeding device2) with drying hopper3) 22/30kw motor 4) with 4 zones aluminum heater and blowing cooling5) electricity control system: ABB inverter, Siemens Motor, Omron temperature control
16 20 25 32 40 50 63 75 90mm Plastic Corrugated Pipe Machine

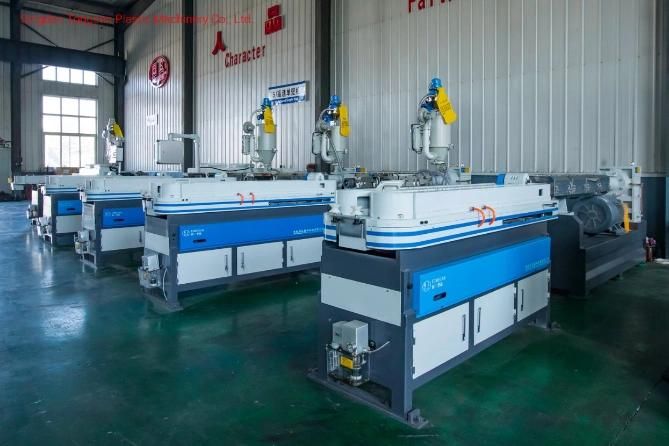

b. high speed forming machine  1) mold material: 40 Cr mold steel with nitrating treatment2) quantity of molds: 72 pairs/ set, or customized molds3) cooling method: by water4) production speed: 20-30m/minut
16 20 25 32 40 50 63 75 90mm Plastic Corrugated Pipe Machine

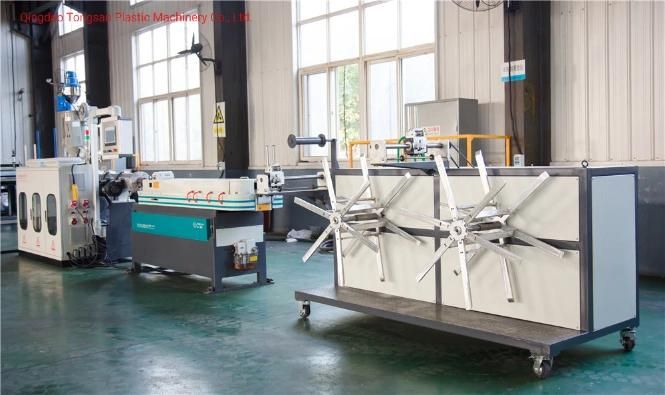

c. coiler: double postion 1) winding station: double station
2) winding method: automatic winding
3) meter counting: automatic counting
4) winding meters: customized

16 20 25 32 40 50 63 75 90mm Plastic Corrugated Pipe Machine

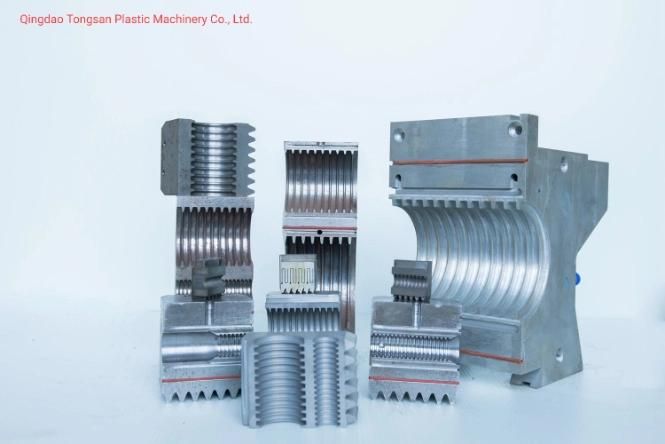

d. mold
1) material: 40Cr
2) mold type: two sizes designed on same mold to reduce mold changing time3) vacuum channel: optional4) mold cooling: circulating water5) mold lubricant: oil automatically 6) transmission: gear
16 20 25 32 40 50 63 75 90mm Plastic Corrugated Pipe Machine

6. Certification of plastic corrugated pipe machine

16 20 25 32 40 50 63 75 90mm Plastic Corrugated Pipe Machine


6. exhibition in domestic and abroad for plastic corrugated pipe machine
many exhibitions are attended every year, such as Korea,Vietnam,Myanmar,Thailand,Malaysia, Bangladesh, India, Sri Lanka, Kazakhstan,Uzbekistan, Iran, Pakistan, Turkey, Algeria,Egypt,Ethiopia,South Africa,Mexico, America,Brazil, Columbia,Russia, Ukraine, Poland, Germany...

16 20 25 32 40 50 63 75 90mm Plastic Corrugated Pipe Machine



7. Abroad customer for plastic corrugated pipe machine
we have 23 years experience for the corrugated pipe machine,our machine has been installed sucessfully all over the world: Turkey,Yemen,Malaysia,Ecuador,Benin,Mauritania,Uganda,Ukraine,Uzbekistan,Brazil,Bahrain,Pakistan,Qatar,Rwanda,Belarus,India,Indonesia,Congo,Dominican,Jordan,Sudan,Liberia,Saudi Arabia, Algeria,Argentina,Oman,Afganistan,Latvia,Kenya,Romania,Venezuela,Poland,Bangladesh,Bolivia,South Africa,Kazakhstan,Kuwait,Great Britain,Zambia, Morocoo,Mexico,Chile,Cote Dlvoire,Russia,Syria,America,Tunisia,Egypt,Thailand,Colombia,Peru,Philippines,Vietnam,Cameroon,Chile......

16 20 25 32 40 50 63 75 90mm Plastic Corrugated Pipe Machine

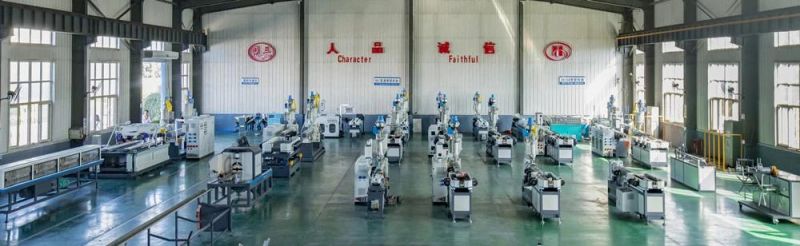

8. Company profile for plastic corrugated pipe machine
a. Estabilished in 1997 year with 23 years experience.
b. more than 30 lines in stock now
c. make mould by our own CNC machine to control the whole line quality
d. experienced team to make designer for customer at the same time, improve ourself by learn from Europ.
e. professional technician is availale at any time to do installation in customer factory
