40-110mm PVC HDPE Double Wall Pipe Machine

Qingdao Tongsan Plastic Machinery Co., Ltd.
  • Product Type：PE Pipe
  • Screw No.：Single-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE
  • Customized：Customized

Base Info

  • Condition：New
  • Pipe Diameter：40-110 110-250
  • Pipe Material：HDPE
  • Mold Material：Aluminum
  • Mold Quantity：48 Paris
  • Extruder Model：Sj90,30+ Sj75,30
  • Forming Machine：Vacuum Type
  • Transport Package：Shipping Packing
  • Specification：SJ90,30 + SJ75,30
  • Trademark：TS
  • Origin：China
  • HS Code：8477209000
  • Production Capacity：100sets,Year

Description

machine modelSBG250SBG110SBG160PVC-SBG250pipe diameter mm75-25040-11050-16075-250extruder screwsingle single single doubleextruder modelSJ90/30+SJ75/30SJ65/33+SJ65/30SJ75/30+SJ65/30SJ65/132mold block pairs48727248mold block materialAluminumironironaluminum
40-110mm PVC HDPE Double Wall Pipe Machine

3. details of double wall pipe machine

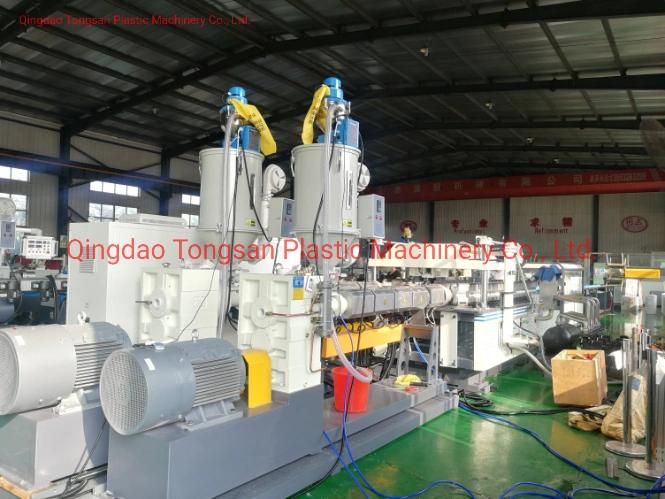

a. SJ90/30+SJ75/30 extruder
siemens motor
ABB inverter
Omron temperature controller
Siemens low voltage appliance
PLC optional

40-110mm PVC HDPE Double Wall Pipe Machine

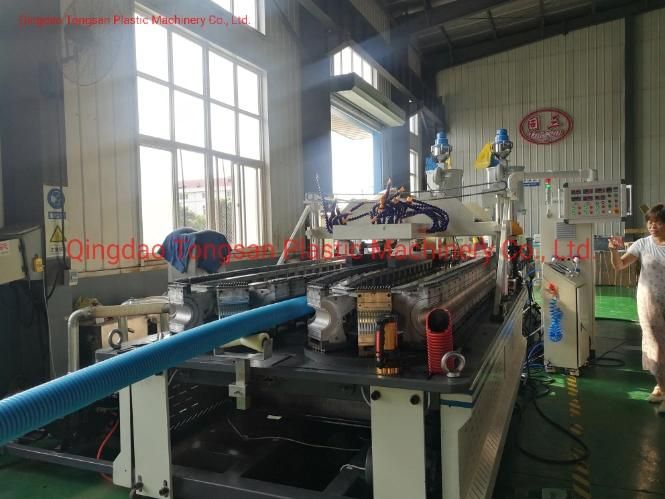

b.vacuum forming machinecooling by water lubricant by oil automaticallyelectrical protection system automaticallymotor 5.5kwvacuum pump 5.5kw x 3sets
 40-110mm PVC HDPE Double Wall Pipe Machine
  c. mold of double wall corrugated pipe machine cast aluminum material 48 pairsvaccum channel on mold

40-110mm PVC HDPE Double Wall Pipe Machine

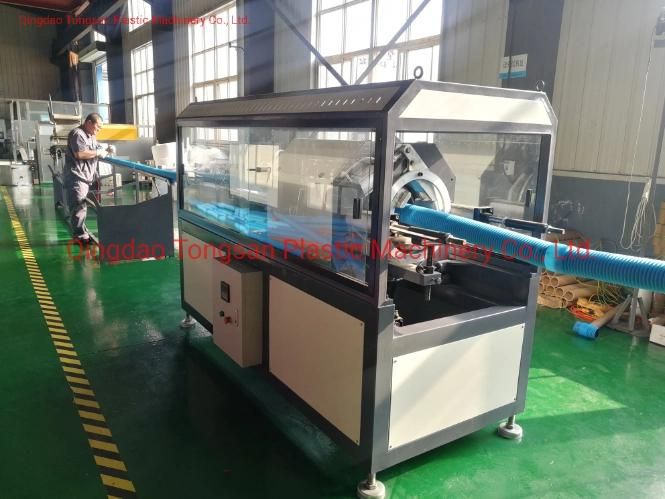

d. cutting machine
blade material: alloy steel
pnumatic cutting

40-110mm PVC HDPE Double Wall Pipe Machine

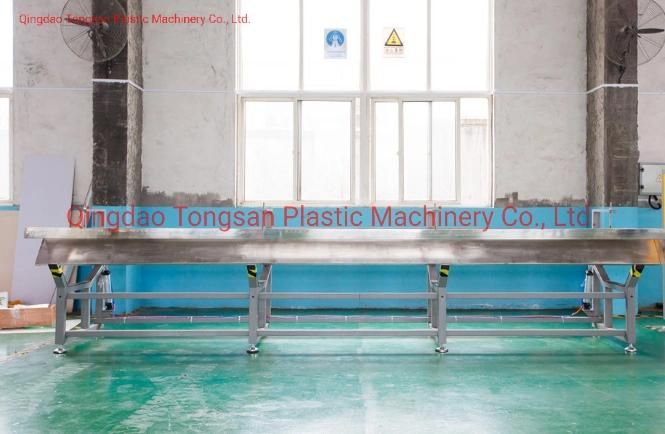

e. stacking machine
6000mm length
automatic reversal

40-110mm PVC HDPE Double Wall Pipe Machine

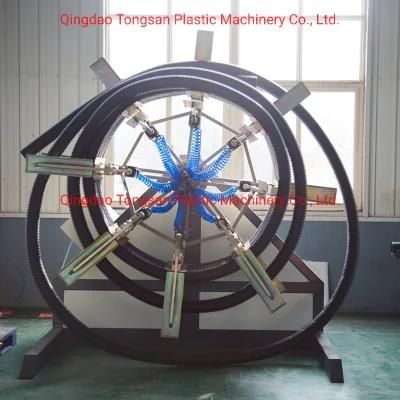

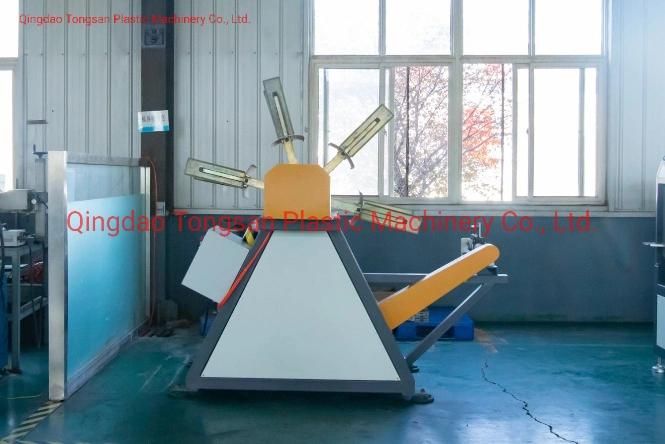

f. automatic winding machine
single position winder

40-110mm PVC HDPE Double Wall Pipe Machine

4. Certification of double wall pipe machine
40-110mm PVC HDPE Double Wall Pipe Machine

5. exhibition in domestic and abroad for double wall pipe machine
many exhibitions are attended every year, such as Korea,Vietnam,Myanmar,Thailand,Malaysia, Bangladesh, India, Sri Lanka, Kazakhstan,Uzbekistan, Iran, Pakistan, Turkey, Algeria,Egypt,Ethiopia,South Africa,Mexico, America,Brazil, Columbia,Russia, Ukraine, Poland, Germany...

40-110mm PVC HDPE Double Wall Pipe Machine


6. Abroad customer for double wall pipe machine
we have 23 years experience for the corrugated pipe machine,our machine has been installed sucessfully all over the world: Turkey,Yemen,Malaysia,Ecuador,Benin,Mauritania,Uganda,Ukraine,Uzbekistan,Brazil,Bahrain,Pakistan,Qatar,Rwanda,Belarus,India,Indonesia,Congo,Dominican,Jordan,Sudan,Liberia,Saudi Arabia, Algeria,Argentina,Oman,Afganistan,Latvia,Kenya,Romania,Venezuela,Poland,Bangladesh,Bolivia,South Africa,Kazakhstan,Kuwait,Great Britain,Zambia, Morocoo,Mexico,Chile,Cote Dlvoire,Russia,Syria,America,Tunisia,Egypt,Thailand,Colombia,Peru,Philippines,Vietnam,Cameroon,Chile......
40-110mm PVC HDPE Double Wall Pipe Machine

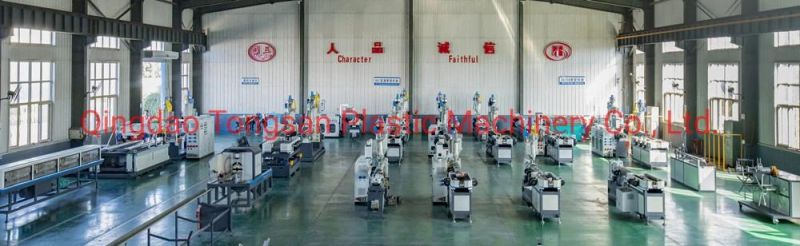

7. Company profile for double wall pipe machine
a. Estabilished in 1997 year with 23 years experience.
b. more than 30 lines in stock now
c. make mould by our own CNC machine to control the whole line quality
d. experienced team to make designer for customer at the same time, improve ourself by learn from Europ.
e. professional technician is availale at any time to do installation in customer factory
