• Model NO.：FB-G-1000
• Automation：Automatic
• Computerized：Computerized
• Machine Weight：4500kgs
• Certification：CE, ISO9001:2008
• Suitable Material：PP
• Output：55kg,H
• Die Size：400mm
• Main Motor：22kw
• Rotary Die Head：Included It
• Water Rings：According to Your Requirement
• Transport Package：Wooden Package
• Specification：6200*2850*5200mm
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：8477309000
• Production Capacity：200 Sets,One Year

Basic Info.

Model NO. FB-G-1000 Automation Automatic Computerized Computerized Machine Weight 4500kgs Certification CE, ISO9001:2008 Suitable Material PP Output 55kg/H Die Size 400mm Main Motor 22kw Rotary Die Head Included It Water Rings According to Your Requirement Transport Package Wooden Package Specification 6200*2850*5200mm Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477309000 Production Capacity 200 Sets/One Year

Product Description

FB-G-1000 Rotary Die Head PP Film Blowing Machine



1.Main technical variables:

The cylinder and screw rods of extruder of this type are all made from high-quality

alloy steel through nitriding and precision machining, so as to ensure optimal hardness

and corrosion resistance. The extruder is lifted to 3 meters according to the

technological requirements, and the machine unit adopts a lower blowing method.

The winding device adopts the torque motor, and can keep suitable tension, orderly

 winding and convenient roll replacement. The polypropylene film blowing machine
unit

with rotary machine head is used to blow polypropylene (PP) films as well as low-density

and high-density polyethylene (LDPE, HDPE) films. The films can be widely applied in

 packages of food, apparel, textiles, commodities, industrial products and the like.

Model	FB-G-1000
Diameter of screw	φ75
Tube film width (mm)	1000
Single-face Thickness of felm(mm)	0.015-0.08
Max.output(kg/h)	55
L/D	28:1
Power of main motor(kw)	22KW
Power of Traction motor(kw)	1.5
Length of Traction roller(mm)	1100
DIE HEAD	400MM
AIR RING	Single lip
Outline diameter (L×W×H)(mm)	6200*2850*5200mm
Weight(T)	4.5T

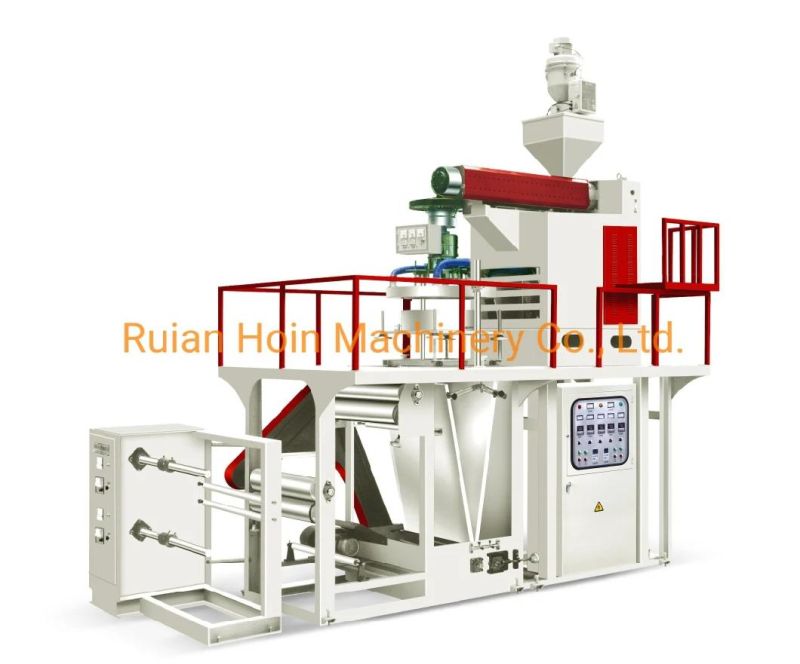

1. Detail picture of machine:

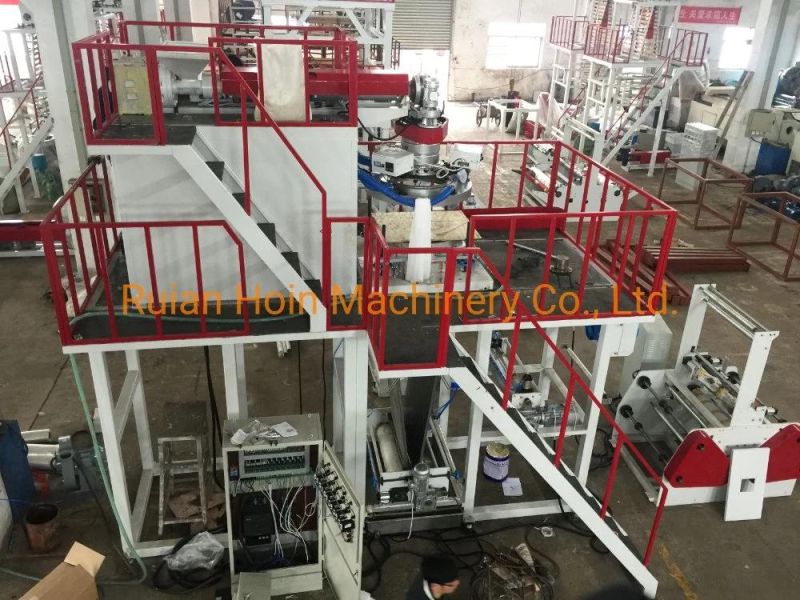

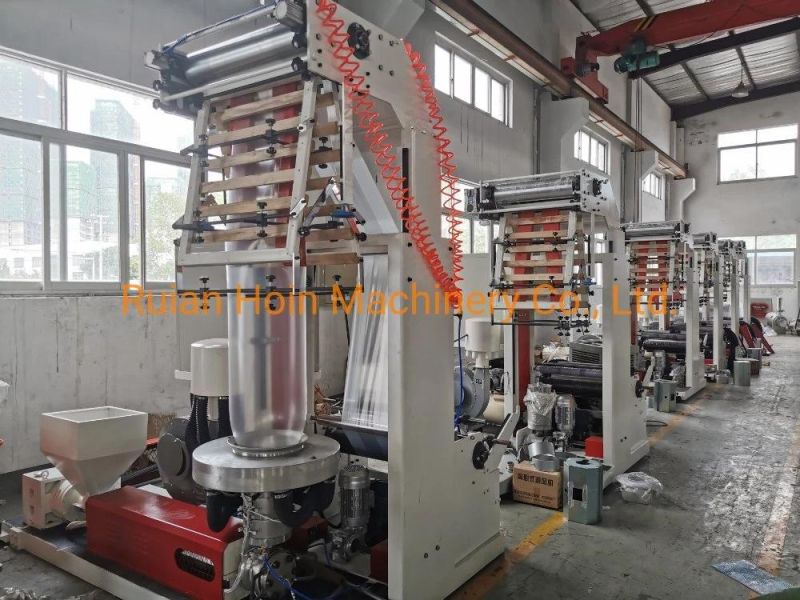

Machine Pictures for Reference:

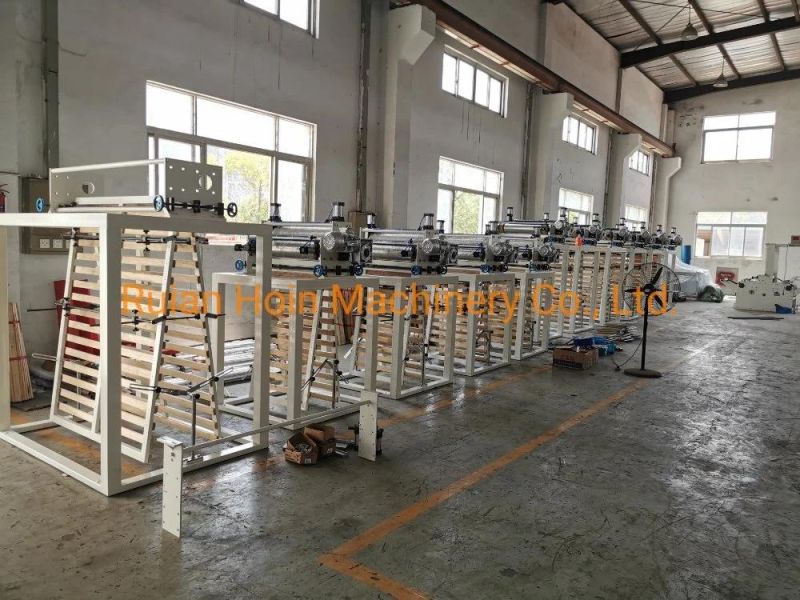

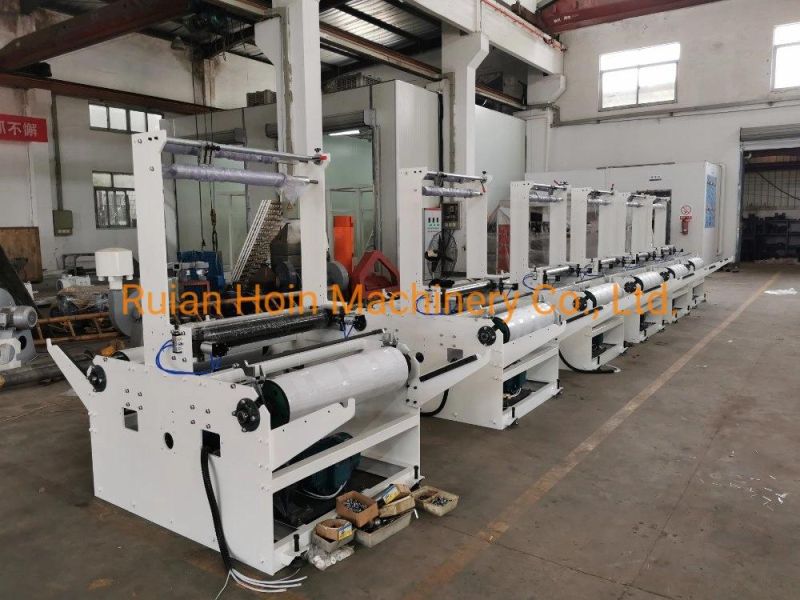

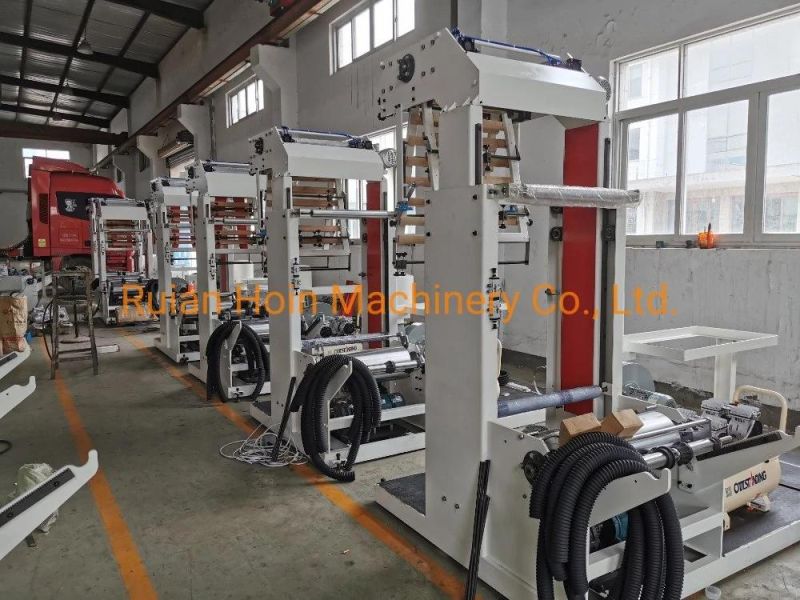

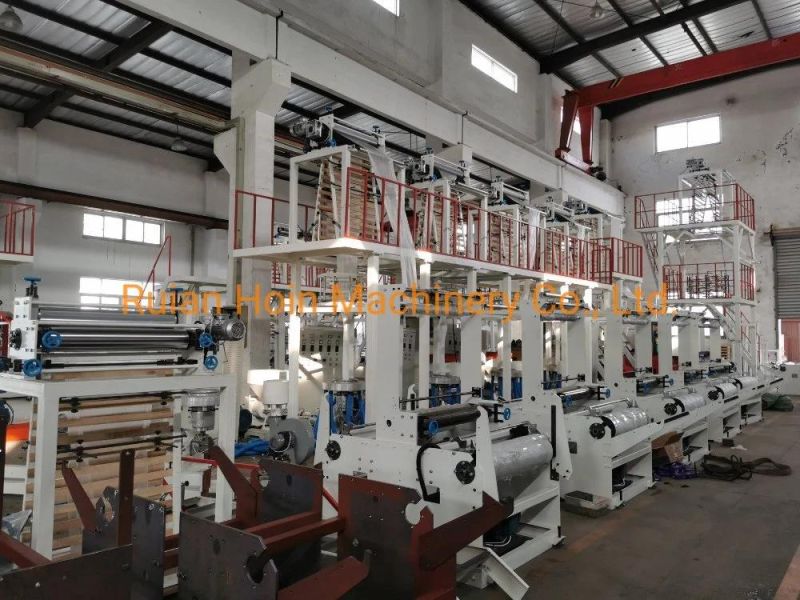

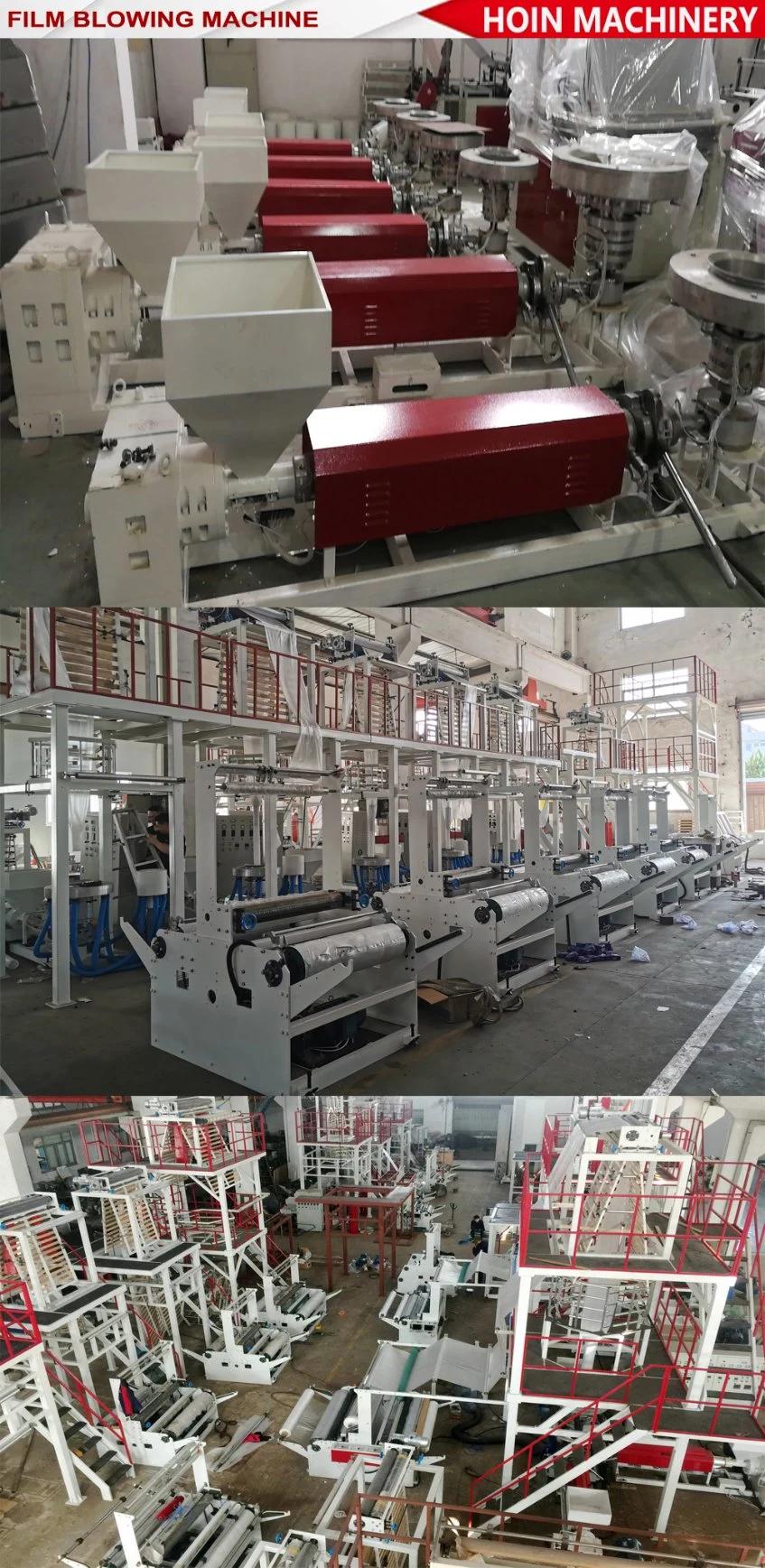

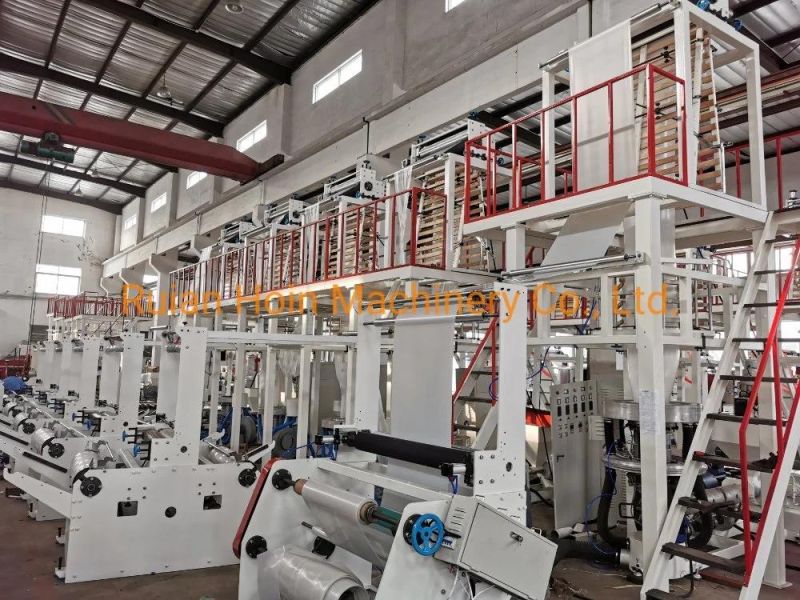

Workshop of HOIN

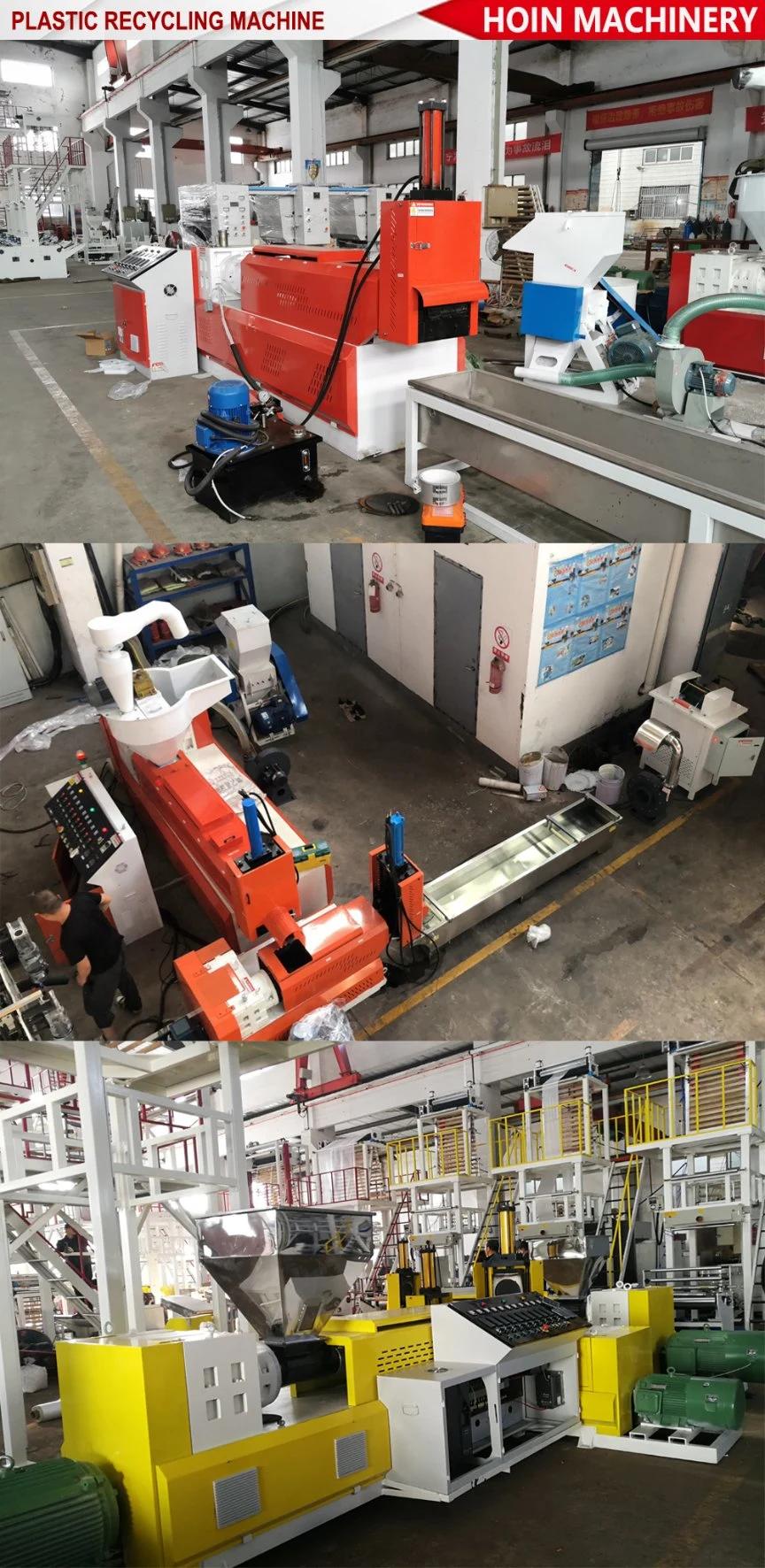

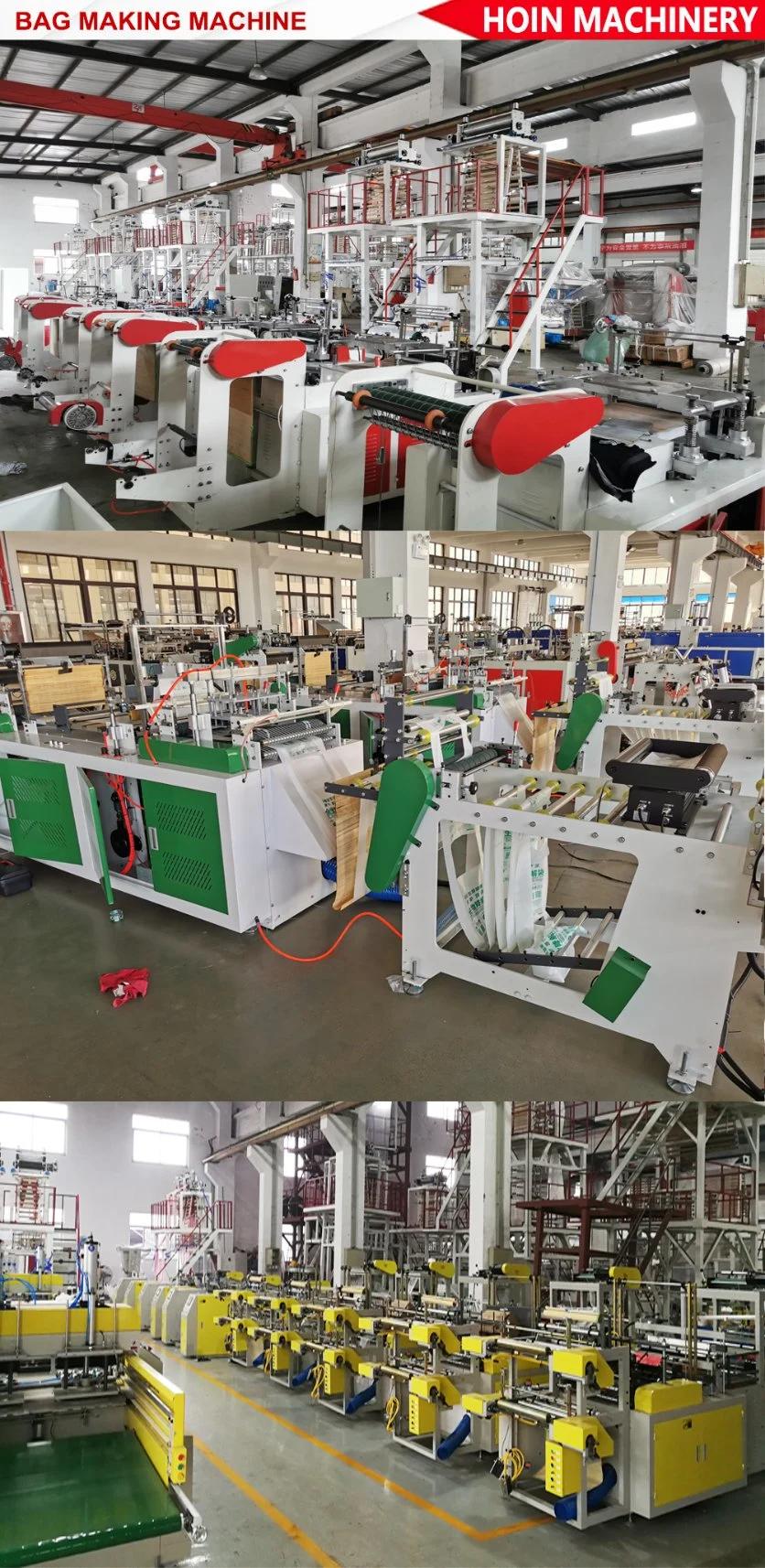

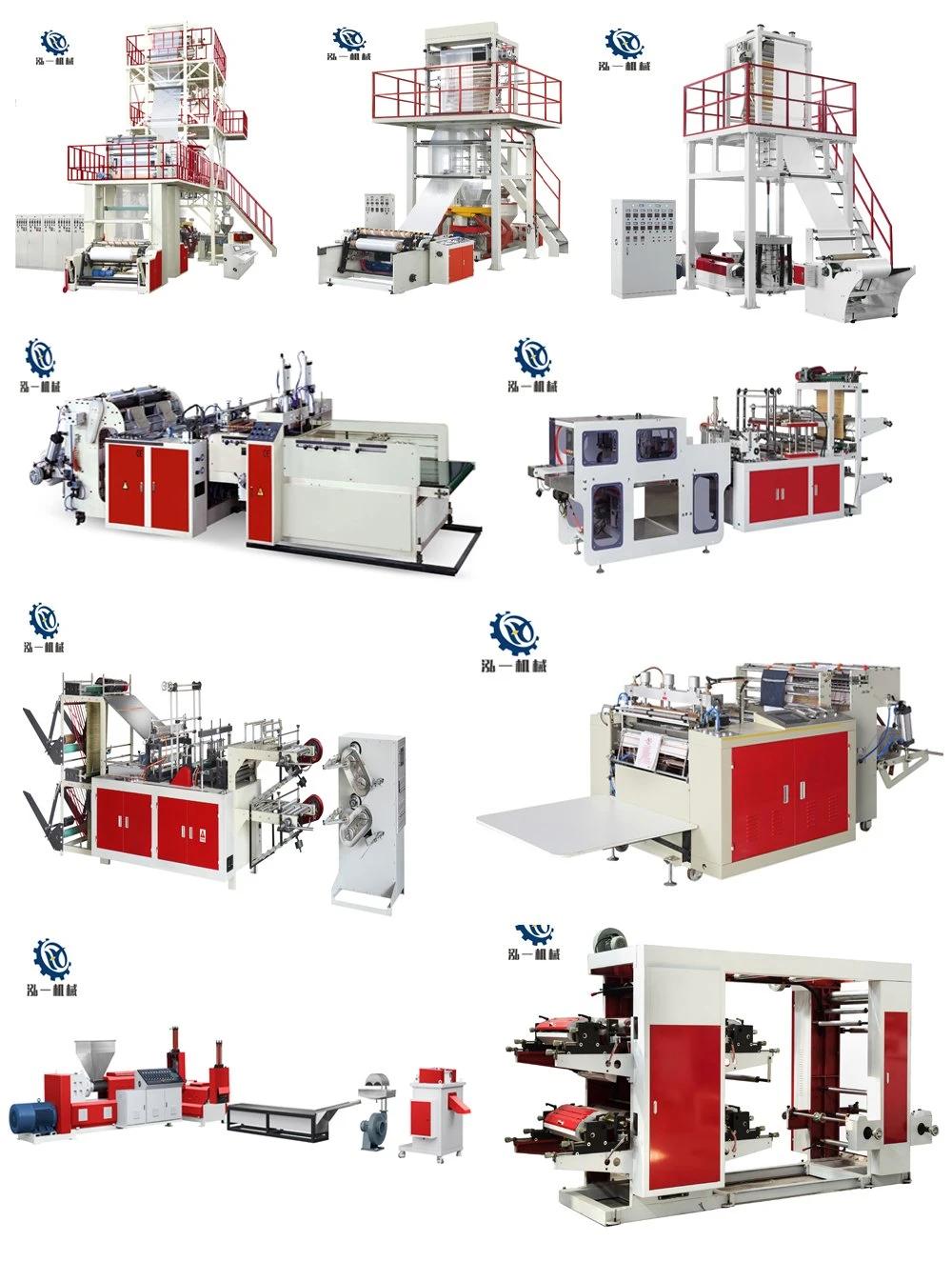

More Products Optional:
After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
