• Model NO.：FR-210
• Production Capacity：100sets,Year

Basic Info.

Model NO. FR-210 Production Capacity 100sets/Year

Product Description

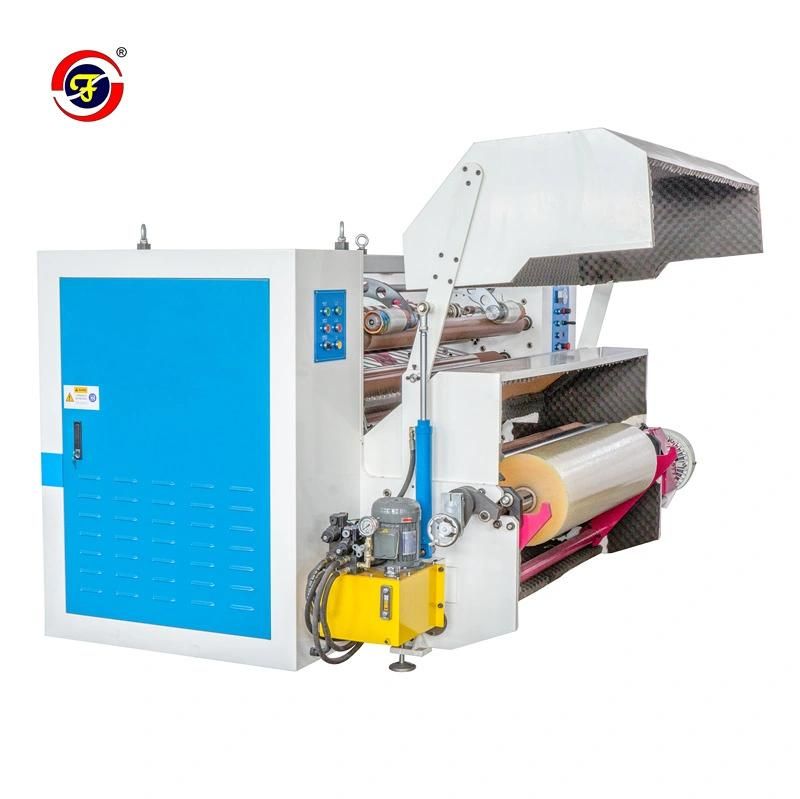

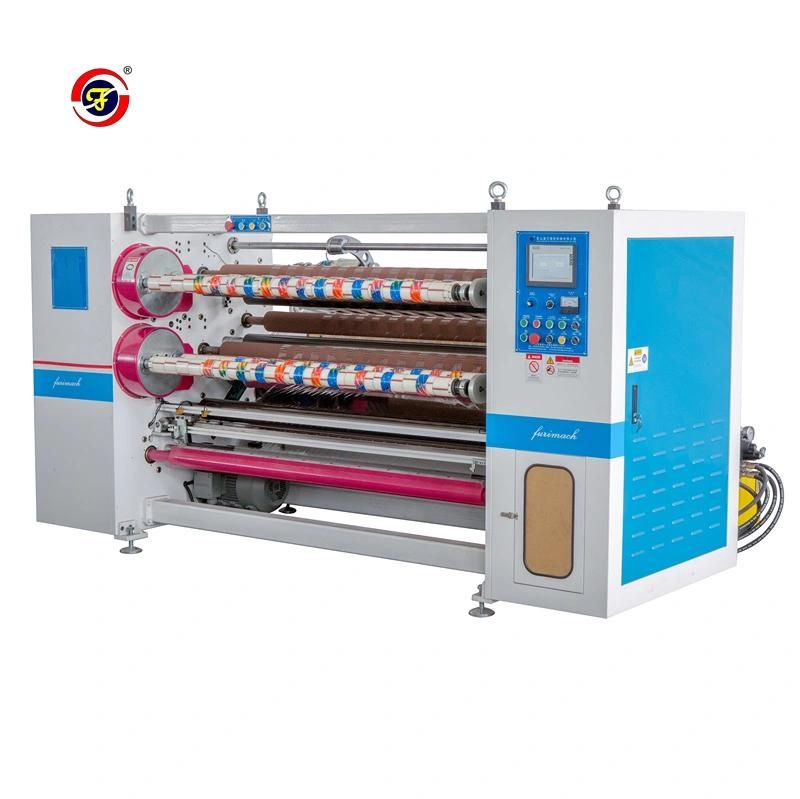

FR-210BS Super Clear BOPP Tape Slitting Machine018

Application
Suitable for slitting super clear BOPP adhesive tape.


Feature

1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.

2. PLC control system with touch panel operation.

3. The unwinding tension is adopted with powder braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.

4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding.

5. Two sets of rewinding super clear systems.

6. (Optional) Auto labeling and slitting stationery tape functions.

Main Technical Parameters

Model	FR210BS-1300	FR210BS-1600
Effective width	1300 mm	1600 mm
Max. unwind diameter	800mm	800mm
Min. slitting width	24mm	24mm
Max. rewind diameter(shaft3") exchange 4 shafts	150mm	150mm
Machine speed	0-180m/min	0-180m/min
slitting blade	0.2×22×60mm	0.2×22×60mm
Main power	4KW	4KW
