Home > Product > Film Blowing Machine

Biodegradable PLA Pbat Corn Starch CaCO3 Mono Layer HDPE LDPE Plastic Film Extruder Film ...

RUIAN YUNBANG MACHINE CO., LTD.
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：600mm
  • Screw Diameter：45mm
  • Automation：Automatic

Base Info

  • Model NO.：SJ
  • Computerized：Computerized
  • Machine Weight：1.5t
  • Certification：CE, ISO9001:2008
  • Main Motor Power：11kw
  • Screw L/D Ratio of Screw：28:1
  • Speed of Screw：150 Rpm
  • Max.Layflat Width：600mm
  • Transport Package：Film Package or Wooden Case
  • Specification：SGS
  • Trademark：YUNBANG
  • Origin：China
  • HS Code：84773090
  • Production Capacity：20 Sets,Month

Description

Type4550556070808590110110-2Diameter of Screw(mm)Φ45Φ50Φ55Φ60Φ70Φ80Φ85Φ90Φ110Φ110L/D ration of screw30:1Specification of Die HeadΦ40 -100Φ60 -130Φ70 -160Φ90 -200Φ110 -250Φ200 -300 350Φ200 -350Φ400 -500Φ400 -600Φ400 -900Thickness of Products(mm)0.004-0.08/0.025-0.15Folding width of Products(mm)100 -600100- 800100- 1100100- 1200200- 1500200- 1600200- 1800200- 2000200- 2500200- 4000Main power(kw)121822222230-3737-4537-4555-7575× 2Max. Output(kg/h)303550608070-100100-130180280450Weight(T)≈1.6≈1.8≈2.0≈2.2≈4≈4.5≈5≈6≈6.5≈8Overall Dimensions(L× W×H) )(m )3.6× 1.5 × 3.54×1.9×3.84.1×2×4.34.2×2.2×4.55× 2.7× 5.55.3× 2.9× 66× 3.1 × 77× 3.3× 7.58× 3.8 × 99× 3.5× 15

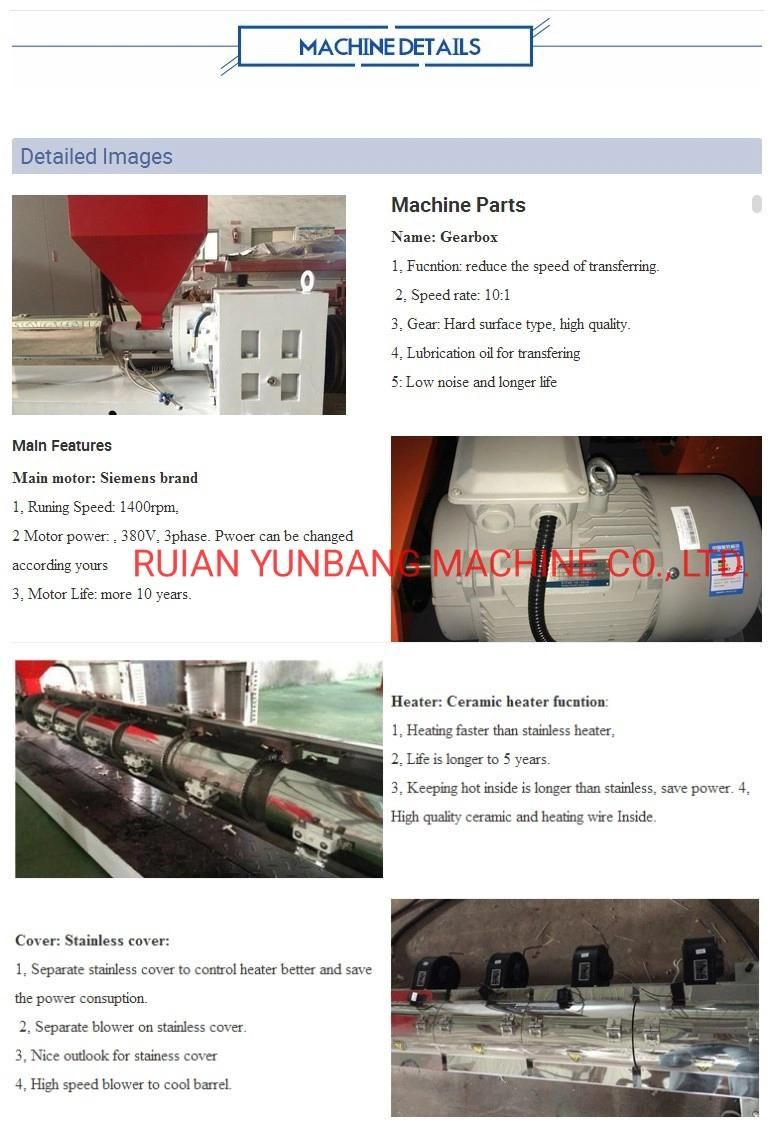

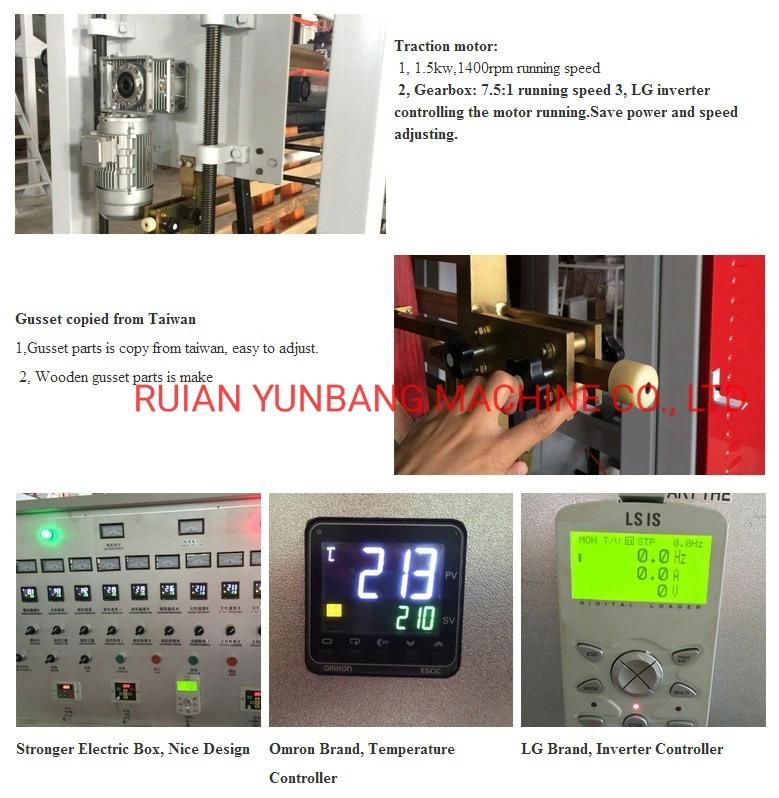

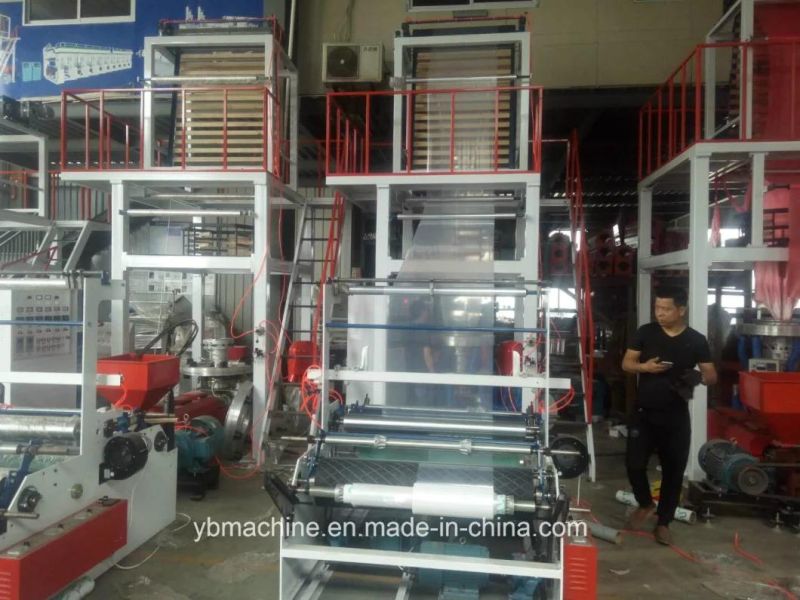

Detailed Picture of Machine



Biodegradable PLA Pbat Corn Starch CaCO3 Mono Layer HDPE LDPE Plastic Film Extruder Film Blown Blowing Machinery MachineBiodegradable PLA Pbat Corn Starch CaCO3 Mono Layer HDPE LDPE Plastic Film Extruder Film Blown Blowing Machinery MachineBiodegradable PLA Pbat Corn Starch CaCO3 Mono Layer HDPE LDPE Plastic Film Extruder Film Blown Blowing Machinery Machine
