Automatic Pet Bottle Blowing / Plastic Stretch Blow Molding / Bottle Making Machine
Zhangjiagang Reliable Machinery Co., Ltd.- Type：Stretch Blow Molding Machine
- Automatic Grade：Automatic
- Name：Automatic Pet Bottle Blowing , Plastic Stretch Blo
- Theoretical Output：2000-12000bph
- Processing：Pet
- Volume：0.2-2L Bottle
Base Info
- Model NO.：RM-2000
- Processing Type：Automatic
- Quality：High Quality
- Technology：Advanced
- Material：SS304
- Diameter：110mm
- Height：380mm
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Transport Package：Standed Export Packing
- Specification：CE, SGS, ISO
- Trademark：Reliable Machinery
- Origin：Zhangjiagang City, Jiangsu Province
- HS Code：8422301090
- Production Capacity：15 Set,Month
Description
RM-2000Output Product specification Bottle diameter 20mm-100mm Bottle height 50mm-350mm Bottle mouth diameter 15mm-38mm Mold Main power Power 380v 3Phase /220v 3Phase 50/60HZ Install power/actual power 49kw/10kw Air source Low pressure air compressor 1.2m3/min 1.0MPa High pressure air compressor 2.0m3/min 3.0MPa Cold dry machine 2.0m3/min 3.0MPa 1set cooling water Cooling water quantity 15L/min Main machine size Length width height/weight 2308*2058*1920mm/3600kg Feed embryo machine size Length width height/weight 2000*950*2480mm/250kg

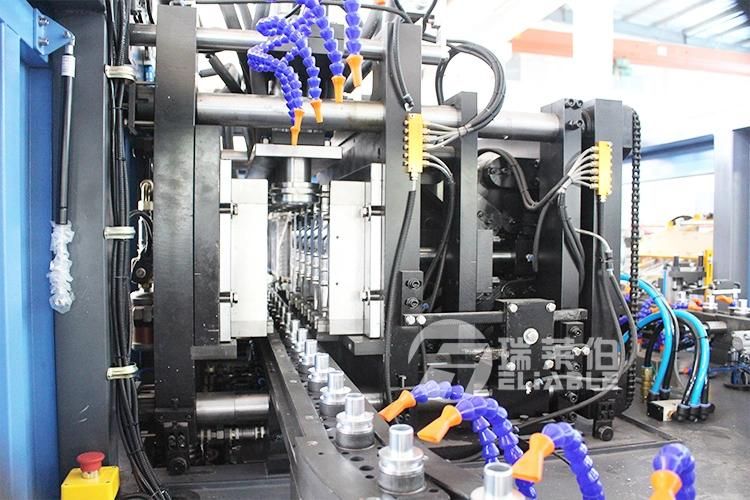

Character A .This type bottle molding machine adopts advanced microcomputer control system, stable performance, the conveyor automatically send embryo;

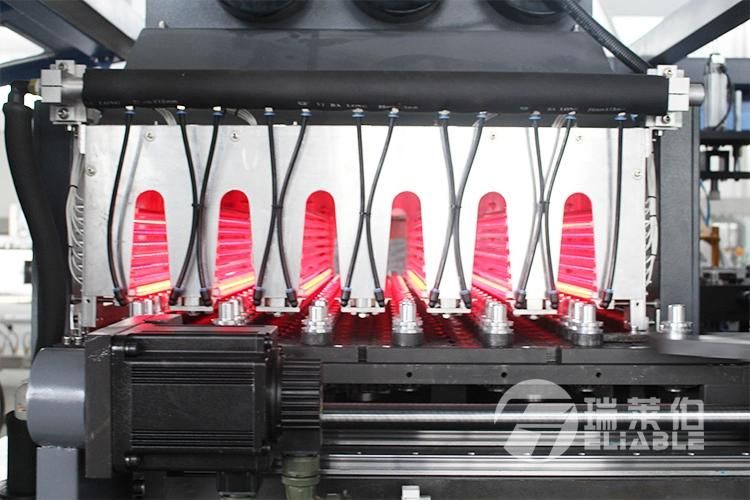

B .The bottle molding machine uses infrared heating lamps, penetrating power strong, embryo heated while rotation, orbital revolution, heating uniformity, rapid and reliable;
C.Light tube in heating area, reflector width and height can be adjusted to suit the different structure preform heating, and automatic exhaust temperature device in order to ensure constant temperature of the drying tunnel;
D.The bottle molding machine has a safety self-locking device, when a processes have problem, the program will automatically switch to a safe state;
E.All the action drive by the cylinder,do not use pumps,with no pollution, low noise;
F.Gas way design divide action and air blowing into three parts, action to meet the needs of the different pressure of the blowing, action;
G.Cooling system to achieve the desired cooling effect;
H.The bottle scrap rate less than 0.2%. Service We have 13 months warranty, and lifetime maintenance. Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1. Within one month, if the machine is of any big fails, we will send you a new machine.
2. Within 13 month,if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3. After 13months, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4. No responsibility for man-made destroy.
5. If the buyer has any questions from our technical department, we can supply on-line service or we can send professional engineers to help you debug them.
ZHANGJIAGANG RELIABLE MACHINERY CO.,LTD
B .The bottle molding machine uses infrared heating lamps, penetrating power strong, embryo heated while rotation, orbital revolution, heating uniformity, rapid and reliable;
C.Light tube in heating area, reflector width and height can be adjusted to suit the different structure preform heating, and automatic exhaust temperature device in order to ensure constant temperature of the drying tunnel;
D.The bottle molding machine has a safety self-locking device, when a processes have problem, the program will automatically switch to a safe state;
E.All the action drive by the cylinder,do not use pumps,with no pollution, low noise;
F.Gas way design divide action and air blowing into three parts, action to meet the needs of the different pressure of the blowing, action;
G.Cooling system to achieve the desired cooling effect;
H.The bottle scrap rate less than 0.2%.
1. Within one month, if the machine is of any big fails, we will send you a new machine.
2. Within 13 month,if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3. After 13months, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4. No responsibility for man-made destroy.
5. If the buyer has any questions from our technical department, we can supply on-line service or we can send professional engineers to help you debug them.
