Plastic Machinery

PP/Pet Strap Extrusion Machine with Years Experience

Zhangjiagang Sevenstars Machinery Co., Ltd.
  • Type:Strap Extruder
  • Plastic Processed:Pet
  • Product Type:Extrusion Molding Machine
  • Feeding Mode:One Feed
  • Assembly Structure:Separate Type Extruder
  • Screw:Twin-Screw

Base Info

  • Model NO.:Sevenstars
  • Engagement System:Full Intermeshing
  • Screw Channel Structure:Deep Screw
  • Exhaust:Exhaust
  • Automation:Automatic
  • Computerized:Computerized
  • Raw Material:PP , Pet Flake
  • Final Product:Pet , PP Strap
  • Motor of The Machine:Siemens
  • Electric Elements:Siemens or Schneider
  • Color of The Machine:Optional
  • Transport Package:Sea Worthy Packing
  • Specification:CE ISO
  • Trademark:Sevenstars
  • Origin:Zhangjiagang Jiansgu China
  • HS Code:84778000
  • Production Capacity:50 Sets,Year

Description

Basic Info.

Model NO. Sevenstars Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Raw Material PP / Pet Flake Final Product Pet / PP Strap Motor of The Machine Siemens Electric Elements Siemens or Schneider Color of The Machine Optional Transport Package Sea Worthy Packing Specification CE ISO Trademark Sevenstars Origin Zhangjiagang Jiansgu China HS Code 84778000 Production Capacity 50 Sets/Year

Product Description

PP/Pet Strap Extrusion Machine with Years Experience
The features of line are as follows: Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps; Stainless steel cooling trough with four thermo treatment processes displaces the traditional one; Haul off rollers with bigger size ensure the quality of products; New rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; Laser embossing roller makes clear and even patterns.

PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.

Characteristic of our PET packing strap machine:
1. The raw material treatment is by our CSG serious dehumidify and dryness system, it ensures the humidity in raw material less than 80PPM.
2. Closed circulation feeding system prevent the material from exposure on air to keep the dryness of raw material.
3. The screw is specially designed for PET application, it consists of separate and mixing part to keep the even plastication, also by fixed material feeding system, the extrusion is stable, which ensures the good dimension of PET strap.
4. The machine can produce 1/2/4 strap at the same time.
5. The mould is specially designed, equipped with two-stage filter.
6. Constant temperature heating device provide even cooling environment for PET strap to raise the tensile strength performance.
7. Anneal treatment for finished PET strap to remove the part remaining stress to keep good shape
8. The winder is double disk type with easy operation and coil changing.

Main Technical Parameter
Extruder Strap Width Strip Qua Speed Capacity
ZJS90 6-32mm 4-9mm 10-50m/minx2 250KG/H
ZJS120 6-32mm 4-9mm 10-80m/minx2 400KG/H
Width of strap5--- 32mm
Production speed120 m/min
Stretch ratio4 -- 9
Max capacity60-200kg/h
PP/Pet Strap Extrusion Machine with Years Experience

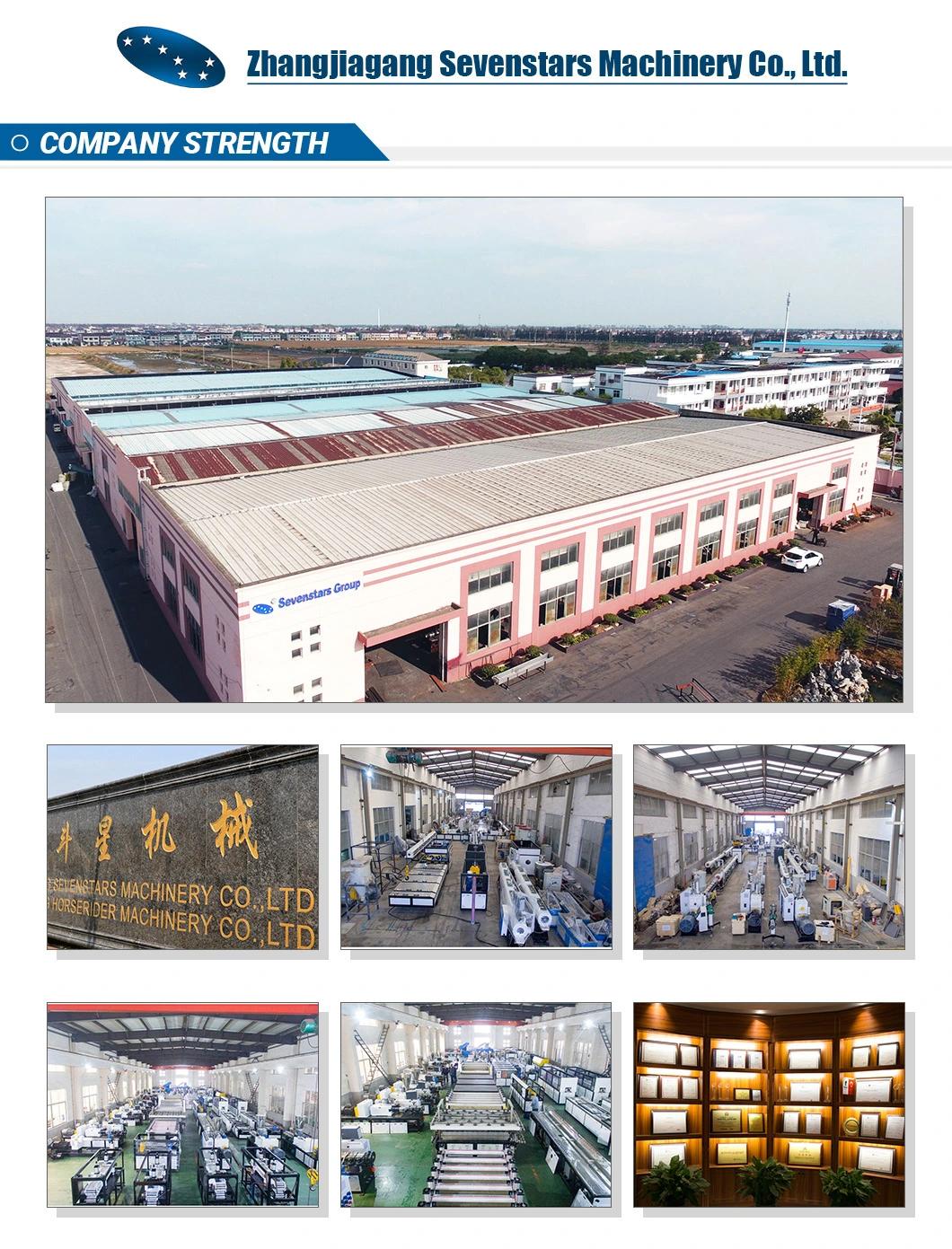

Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.

We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.

As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.

Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.

Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.
