Plastic Machinery

Plastic Film and Jumbo Bag Shredder with Double Shaft

Zhangjiagang Sevenstars Machinery Co., Ltd.
  • Material Processed:Film
  • Plastic Type:All Kinds of Plastic Film, Jumbo Bag,Woven Bg
  • Screw:Double-Screw
  • Automation:Automation
  • Computerized:Computerized
  • Certification:ISO9001:2008, CE

Base Info

  • Model NO.:Sevenstars
  • Blade Material:SKD-11
  • Raw Material:Film, Woven Bag, Jumbo Bag
  • Color of The Machine:Blue White or According to Customer Needs
  • Capacity:300kg-2500kg,H
  • Size of The Output Film:60mm
  • Transport Package:Sea Worthy Packing
  • Specification:CE ISO
  • Trademark:Sevenstars
  • Origin:Zhangjiagang Jiansgu China
  • HS Code:84778000
  • Production Capacity:200 Sets,Year

Description

Basic Info.

Model NO. Sevenstars Blade Material SKD-11 Raw Material Film, Woven Bag, Jumbo Bag Color of The Machine Blue White or According to Customer Needs Capacity 300kg-2500kg/H Size of The Output Film 60mm Transport Package Sea Worthy Packing Specification CE ISO Trademark Sevenstars Origin Zhangjiagang Jiansgu China HS Code 84778000 Production Capacity 200 Sets/Year

Product Description

Plastic Film and Jumbo Bag Shredder with Double Shaft
Double-shaft shredder for shredding all kinds of soft plastics and rubers just like, plastic film, greenhouse film, fishing net, plastic bag, ton bag/ jumbo bag, woven bag, nonwoven bag, nonwoven fabric, tires, etc.

HS Code: 84778000

Features:

1. Low rotation rate
2. Low noise and high torque
3. Electrical overloading protective
4: Blade hardness at 60-65 by SKD11
5. Hydraulic system, an independent power system, the structure solid, smooth running, feed material easily, high output.
6. PLC program control system, automatically rotating, stop and realize fully automatic operation of equipment, safe and reliable running of the machine

Our GL series double shaft shredding machine adopts the advanced technology introduced from Europe, and passed the CE Certification of Quality System. Low speed, high torque, low noise. over-load protector , the machines is specially used for PP woven bag and jumbo bags ,and other plastic sheet or film and plastic lump and block and PP/PE film.

The machine is controlled by PLC system, the blade can be rotated in opposite direction, and also will close automatically if something unexpected happen, with very high safety service

We have many model of double shaft shrdder for film,jumbo bags and carton paper:
GL400,GL600,GL800,GL1000,GL1200,GL1400 and GL1600 with high capacity.


Modle
GL600GL800GL1000GL1200GL1600GL2000
Number of Rotary blades607896114156192
Shaft rotary speed(r/min)65r/min65r/min60r/min60r/min60r/min60r/min
NO. of Fixed blades448888
Shaft diameter(mm)255255300300350500
Size of hopper opening(mm)1600*14001600*14001600*15001600*15001800*16002300*2100
Motor power (kw)22*230*237*245*255*275*2
Shredder Capacity (kg/h)600-800800-10001000-12001200-14001600-18002000-2200
Machine size(m)3.30*1.40*2.23.4*1.4*2.253.6*1.50*2.353.8*1.50*2.454.8*1.6*2.455.2*2.1*2.45
Machine weight(kg)450052006000640075008600
Plastic Film and Jumbo Bag Shredder with Double Shaft
Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.

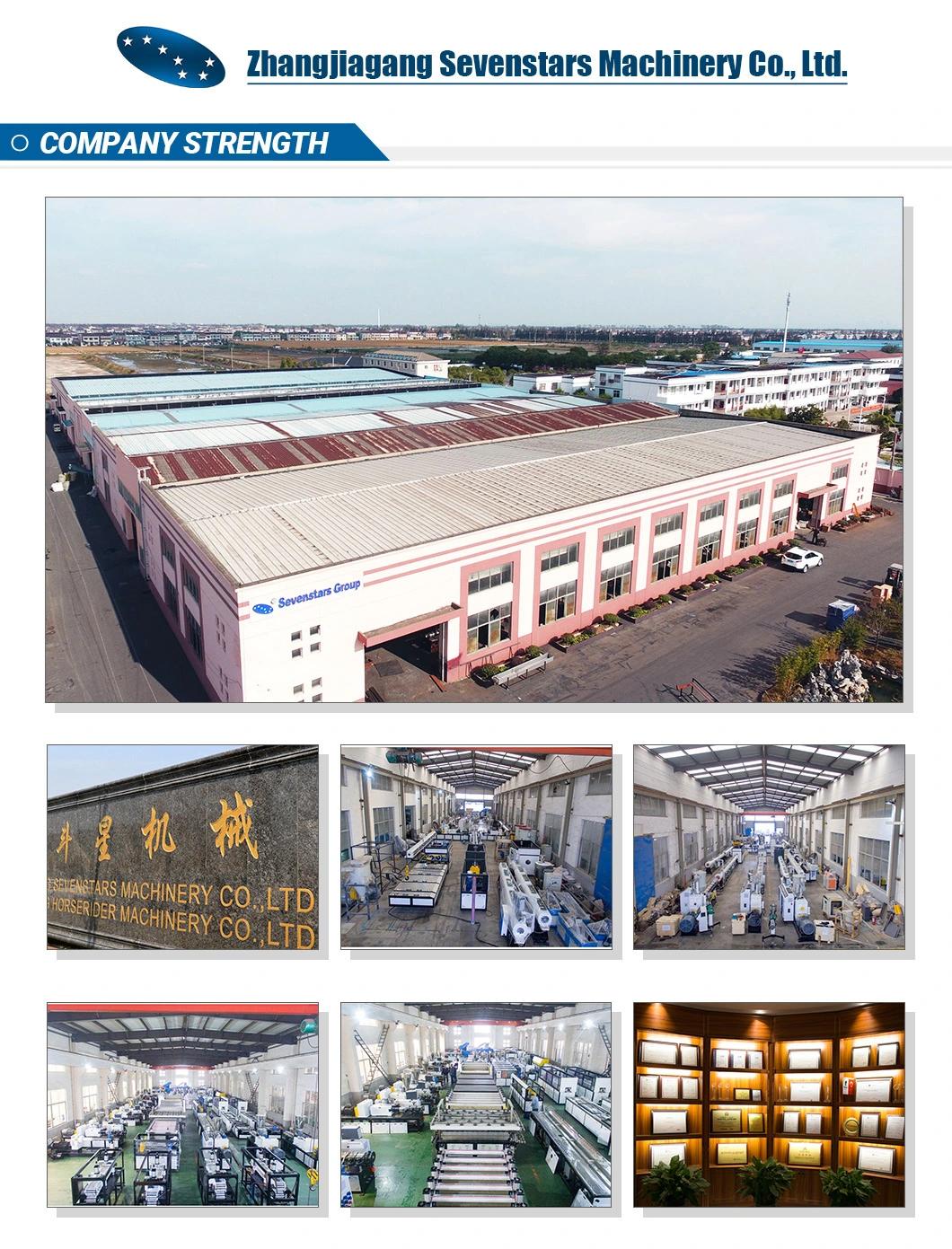

We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.

As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.

Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.

Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.
