• Model NO.：Min. Dim 16mm Max. 1680mm
• Condition：New
• Application：for Producing Pre-Insulated Pipe Jacket
• Pipe Diameter：From 360-1680mm
• Raw Material：PE
• Calibration Method：Vacuum and Water Spraying Cooling
• Cutting Method：Planetary Cutting
• Transport Package：Standard Package
• Specification：PE-365,760 PE-500,960 PE-855,1380 PE960,1680
• Trademark：HSD
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：1000unit,Year

Basic Info.

Model NO. Min. Dim 16mm Max. 1680mm Condition New Application for Producing Pre-Insulated Pipe Jacket Pipe Diameter From 360-1680mm Raw Material PE Calibration Method Vacuum and Water Spraying Cooling Cutting Method Planetary Cutting Transport Package Standard Package Specification PE-365/760 PE-500/960 PE-855/1380 PE960/1680 Trademark HSD Origin Qingdao China HS Code 8477209000 Production Capacity 1000unit/Year

Product Description

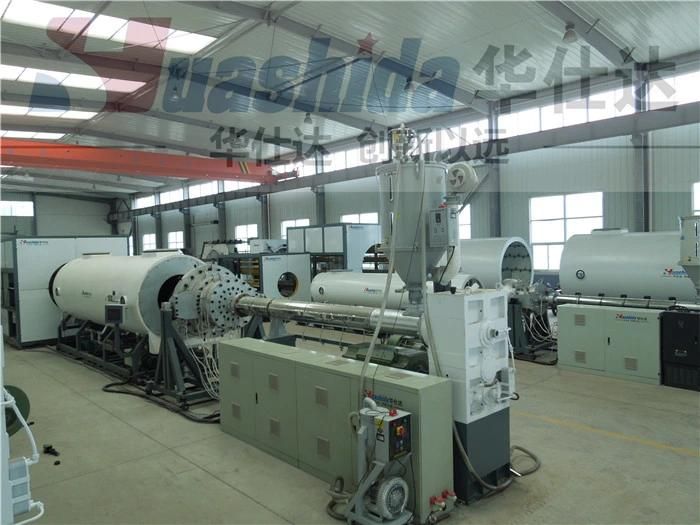

HDPE Pipe Extrusion Line

---Pipe diameter range: 365-760mm 500-960mm 855-1380mm 960-1680mm
---The extrusion line comprise equipments and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-effeciency single screw extruder
1set 25/25 single screw extruder for mark line
1set Vacuum calibration table
1set Water spraying tank
1set Hauling machine

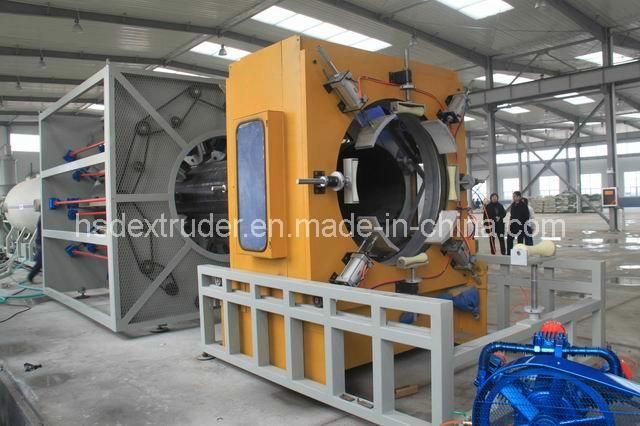

1set Cutting machine
1set Stacker
I. Pipe Usage

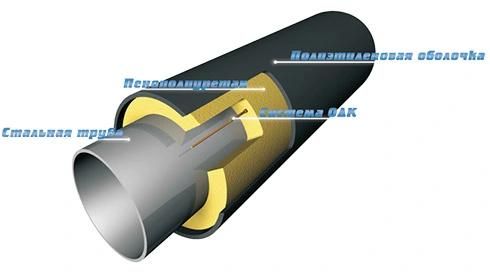

---HDPE jacket pipe is out case of thermal insulating pipe, which is widely used in central heating, oil, nature gas and other industrial area.


II. Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
For example
SJ90/33---600-700kg/h
SJ120/33---800-900kg/h
SJ150/33---1000-1200kg/h
---Compared with inflating method (internal pressure method)
1. For 24 hours working, it reduces 2-3 workers for each shift.
2. There is much waste pipe and material, no need workers to crush waste material.
3. High-effeciency. Take Dimater 960mm as an example, Output is approximately 60 pcs of 11.6meters pipe, it is much higher output than that of inflating method.
4. Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
5. No need trim edge, once forming.
III. Main machine- High-effeciency single screw extruder
---Single screw is with barreir & mixing head; Barrel is new model with slotting (channel), Both make security of good jellification, large output and stable performance.

IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer; S requirement, to be with PLC, or without.
V. Electrical system
---ABB frequency converter or EUROTHERM speed controller
---Japan RKC temperature controller
--- SIEMENS AC contactors






Style	PE-365/760	PE-420/960	PE-850/1372	PE-960/1680
Main extruder	SJ-90/33	SJ-90/33	SJ-120/33	SJ-150/33
Pipe diameter	Φ365-960mm	Φ 420-Φ 960 mm	Φ 850-Φ 1372 mm	Φ 960-Φ 1680mm
Capacity	550-700kg/h	550~700 kg/h	700~900 kg/h	800-1200kg/h
Installed power	360kw	380 kw	440 kw	580kw
Length	35m	36 m	40 m	48m
