• Model NO.：HTSII-2L
• Material Application：PP,PE,LDPE,HDPE,LLDPE,ABS,PS
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Shipping：by Sea or by Train
• Color：Blue,Yellow,White,Orange
• Delivery Time：Within 60 Working Days
• MOQ：1set
• Transport Package：PE Film, Wooden Box, Wooden,Steel Base
• Specification：CE& ISO9001& Bundersrepublik deutschland patents
• Trademark：TONGDA
• Origin：Zhangjiagang City, Jiangsu Province
• HS Code：847740100
• Production Capacity：500sets,Year

Model No.HTSII-2LMax. Product Volume(L)2LMax. Die of Diameter(mm)90Dry cycle(pc/h)900Die heat capacity(KW)1.8Screw Diameter(mm)60No. of heating zone3Screw L/D ratio (L/D)25Central distance of bi-head(mm)130Screw drive power(KW)15Max. Die Diameter(bi-head)(mm)50Screw heating capacity(3ΦKW)5.04~6.7No. of heating zone5No. of heating zone3Heating capacity(KW)2.3Output of HDPE(kg/h)60Blowing pressure(Mpa)0.6Oil pump drive power(KW)5.5Air volume(M3/min)0.4Clamping force (KN)40Cooling water pressure(Mpa)0.2~0.3Mold Stroke(mm)370Water consumption(L/min)35Max. Size of Mold(W*H) (mm)300*320Size of machine(L*W*H) (m)3.2*2.12*2.55Capacity(L) Weight of machine(TON)6
Supplier of main parts:
a) Hydraulic Part
Oil Pump--------------------------------------------------YUKEN, Japan
Valve-------------------------------------------------------YUKEN, Japan
Hose, Joint------------------------------------------------PARKER SIR, America
Sealer------------------------------------------------------Top DZ, Europe
b) Electrical Parts
Microcomputer Control System------------------------MITSUBISHI PLC, Japan
Touch Screen  ---------------------------------------------HITECH color screen, Taiwan
Temperature Controller---------------------------------MITSUBISHI, Japan
Conductor-------------------------------------------------SCHNEIDER, France
Air Switch-------------------------------------------------SCHNEIDER, France
Motor------------------------------------------------------SIMENS BEIDE Asynchronous Motor, Japan
Power Resource------------------------------------------MEAN WELL, Taiwan
Inverter---------------------------------------------------MITSUBISHI, Japan
c) Pneumatic Parts
Solenoid Valve--------------------------------------------FESTO, Germany
Cylinder---------------------------------------------------FESTO, Germany
d) Parison wall thickness controller
Parison controller 100 point----------------------------MOOG, Japan

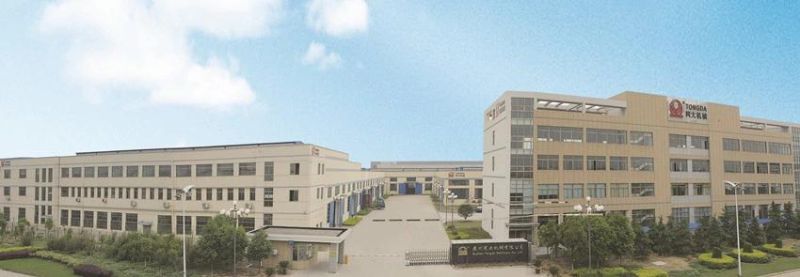

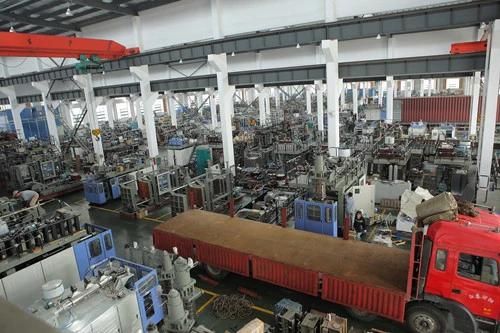

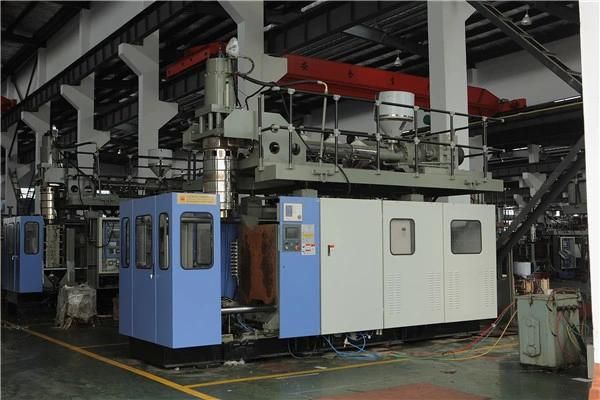

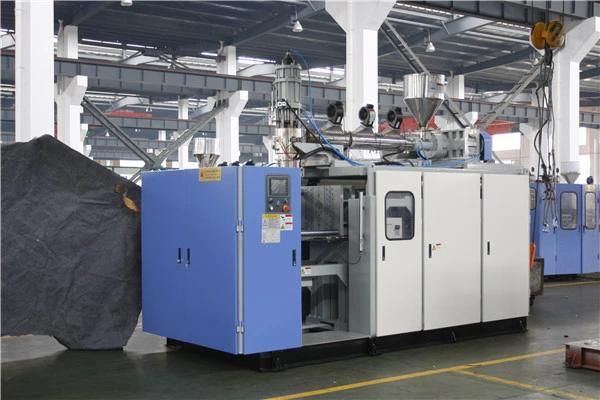

Workshop pictures:



Technical Parameters:

The electronic control system: Japan's Mitsubishi PLC computer and human-machine interface (English or Chinese) control, color touch-screen operation. All the process set to change, retrieval, monitoring, troubleshooting and other functions are implemented on the touch screen, no point of contact with the working principle, components and durable.

The hydraulic system: proportional pressure control, with imported brands Yuken hydraulic components, stable and reliable.

The plasticizing system: efficient plastics mixing screw, to ensure plasticizing full uniform.

The speed control system: VVVF + alloy steel and hard gear reducer, speed stable, low noise, durable.

The opening and closing mold, mold transfer system: beam arm, three position, center locking clamping mechanism, to ensure long-term use. Clamping force balance, no deformation, the use of body translation mode (ball linear guide), high precision, low resistance, fast.

Blowing the needle holder: blow the whole Square-type needle holder, a solid does not shift to ensure a smooth incision product.

Extrusion blow molding machine installation, commissioning and training:
If the buyer needs seller to send technicians to workshop for supervising the erection and start-up, seller must support and send sufficient number of technicians and keep duration of stay in workshop. Usually it's about 3~5 days in this duration. The first day is that when our technician is at the airport to factory of buyer. And from the first day, the buyer has to pay US$50 per day. And all accommodation, visa application & air ticket will be born by the buyer.
