Plastic 28mm Screw Water Cap Injection Mould/Molding Machine 50ton
Taizhou Doria Plastic Equipments Co., Ltd.- Type:Preform Injection
- Structure:Horizontal
- Plastic Type:Thermoplastic
- Plasticizing Way:Screw Type
- Clamping Way:Hydraulic & Mechanical
- Automation:Automatic
Base Info
- Model NO.:injection machine 50
- Computerized:Computerized
- Certification:CE
- Product Capacity:50ton
- Injection Weight:53G
- Motor:Servo
- Payment:T,T;LC
- Delivery:35-45days
- Application:Commodity
- Transport Package:Plastic Film
- Specification:metal
- Trademark:D-R
- Origin:Taizhouhuangyan
- HS Code:8477101090
- Production Capacity:Clamping Stroke 50tons
Description
Basic Info.
Model NO. injection machine 50 Computerized Computerized Certification CE Product Capacity 50ton Injection Weight 53G Motor Servo Payment T/T;LC Delivery 35-45days Application Commodity Transport Package Plastic Film Specification metal Trademark D-R Origin Taizhouhuangyan HS Code 8477101090 Production Capacity Clamping Stroke 50tonsProduct Description

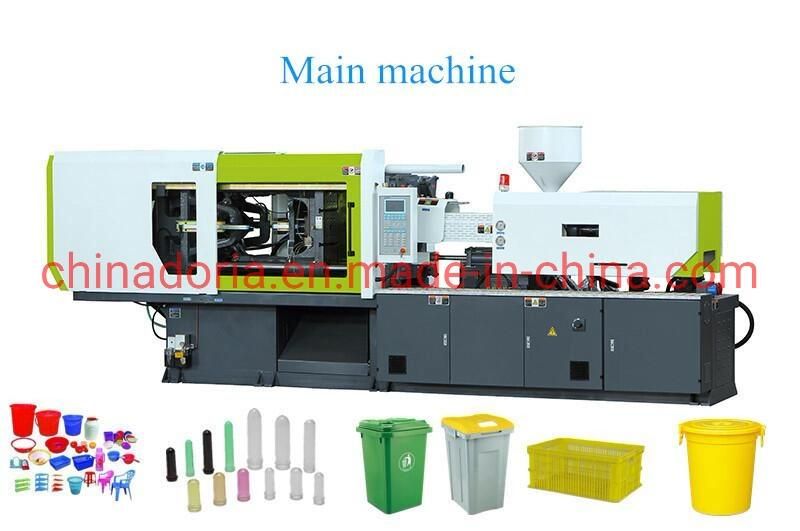

Plastic cap injection moulding machine D-RI501. Product details:
2. Technical data of D-RI50
Model Item | D-RI50 |
Screw diameter(mm) | 28 |
Injection pressure(Mpa) | 168 |
Shot weight(PS) (g) | 53 |
Screw L/D ratio | 20:1 |
Screw stroke (mm) | 102 |
Screw speed(r.p.m) | 0-320 |
Injection rate (cm3/s) | 32.4 |
Plasticizing capacity(g/s) | 4.5 |
Clamping stroke(tons) | 50 |
Mould clamping stroke (mm) | 255 |
Max. daylight opening (mm) | 605 |
Mould thickness (Min.-Max.) (mm) | 150-350 |
Space between tie-bars (mm) | 280*260 |
Hydraulic ejection force (tons) | 2.2 |
Hydraulic ejector stroke (mm) | 65 |
Max. pump pressure(Mpa) | 14 |
Motor power(KW) | 5.5 |
Heater power(KW) | 2.3 |
Temperature control zones | 3+1 |
Tank capacity (L) | 160 |
Machine dimension(L*W*H) | 3600mm*1100mm*1700mm |
Machine weight(ton) | 2.8 |
3. Specifications
Injection molding machine
1.Big tie bar space and shot weight capacity
2.Most famous component parts
3.Perfect after-service
4. FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

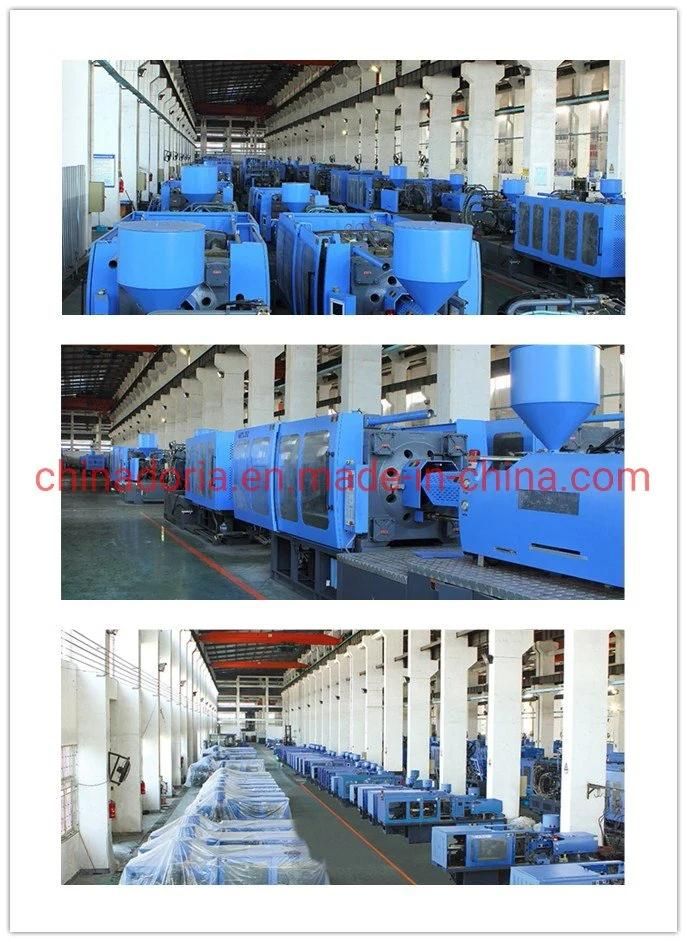

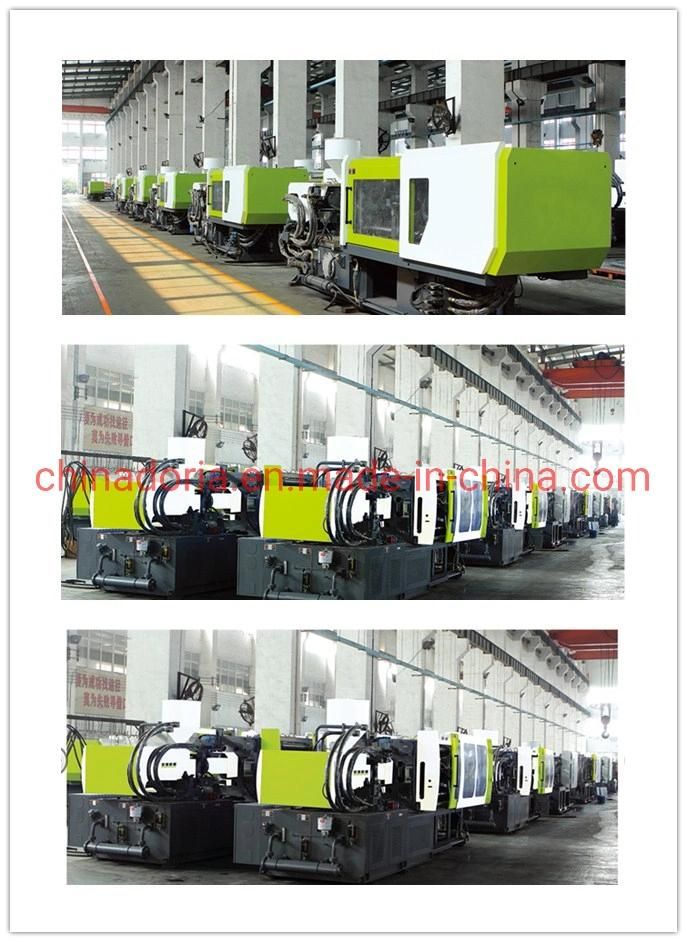

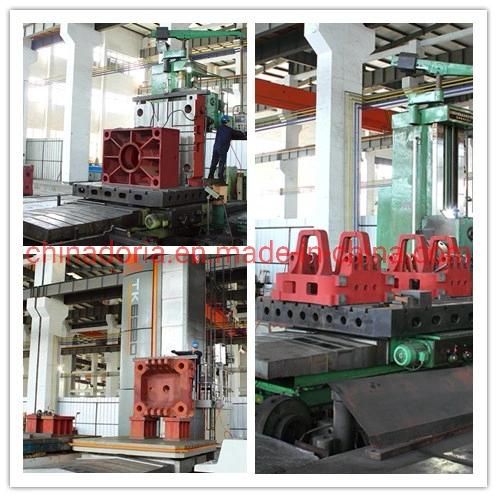

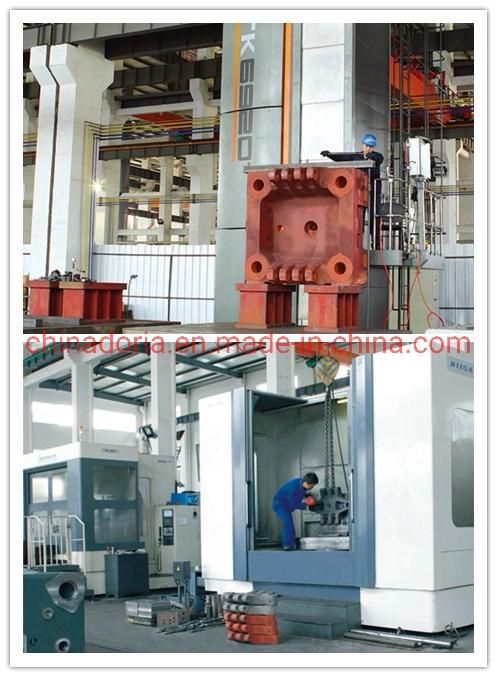

5. Pictures worshop of machine:

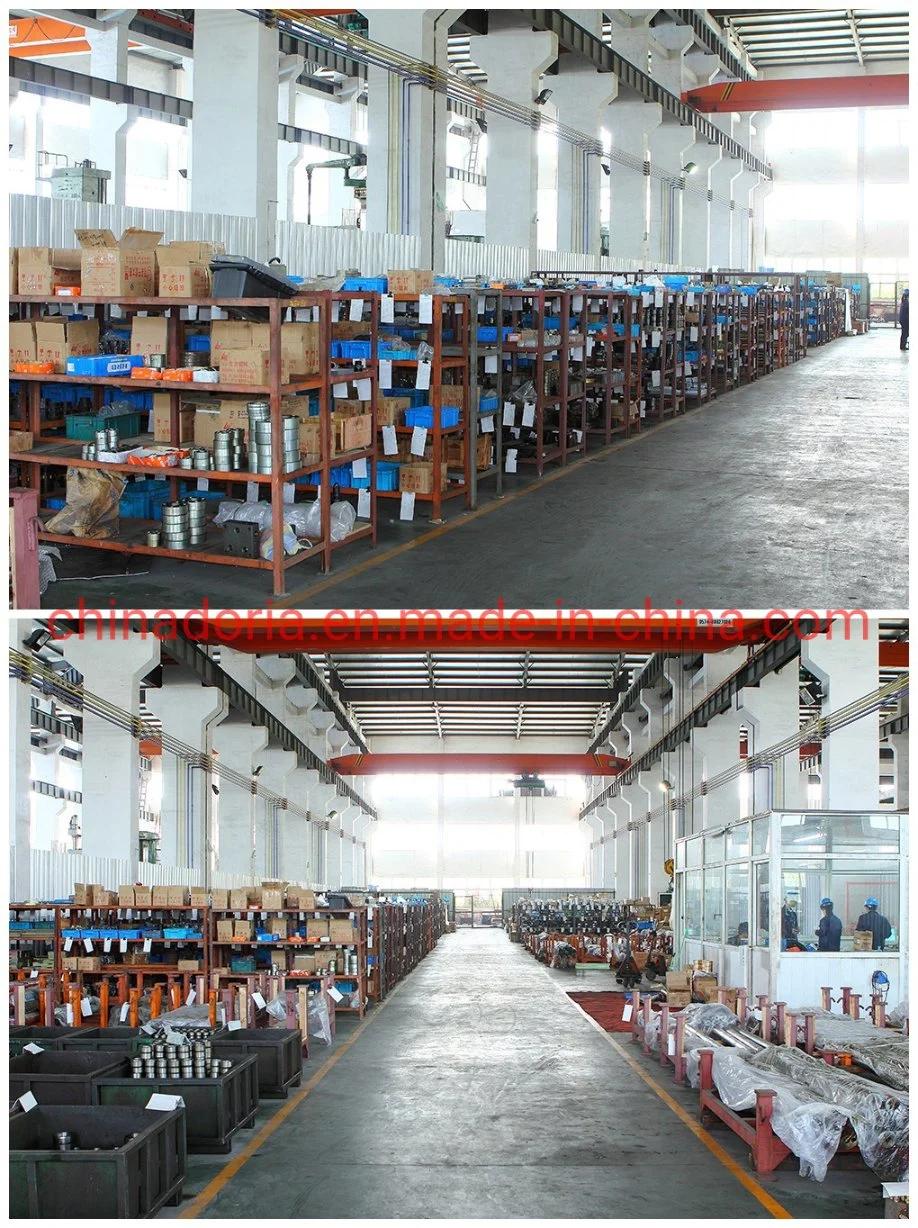

6. Warehouse of machine:

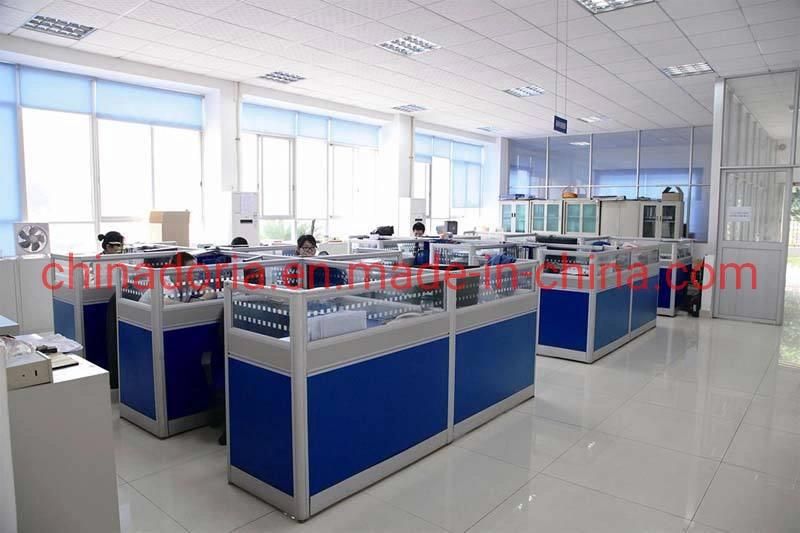

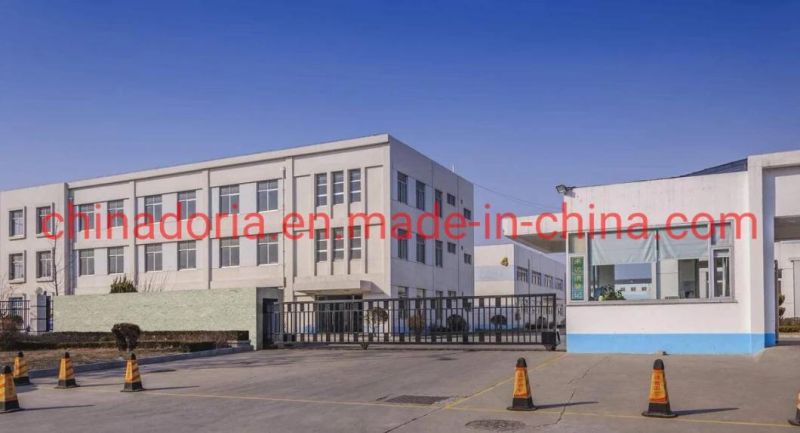

8. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.

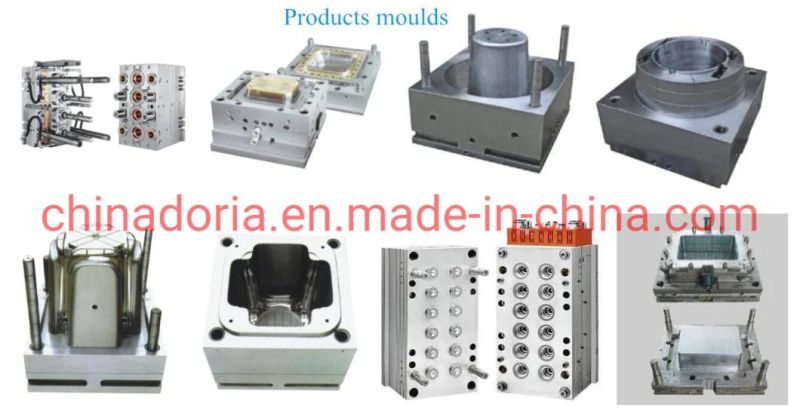

The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us; we hope we will have good chance to cooperate!
