• Model NO.：FB-F-600
• Automation：Non-Automatic
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008
• Certificate：CE, ISO9001
• Feature 1：Double Color
• Transport Package：Stretch Film or Wooden Case
• Specification：CE, ISO9001
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：8477201000
• Production Capacity：30 Set,Month

Basic Info.

Model NO. FB-F-600 Automation Non-Automatic Computerized Non-Computerized Certification CE, ISO9001:2008 Certificate CE, ISO9001 Feature 1 Double Color Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477201000 Production Capacity 30 Set/Month

Product Description

Double Colour Film Blowing Machine

It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for food,garment,textile, clothing, rubbish bag and vest ones.
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.

We guarantee fix for the equipment for 1 Year and only change spare parts which belong to the bad quality of equipment in one year(except man-made causation)

Model	FB-F-600
Suitable material	LDPE,HDPE,LLDPE
Layflat width of film	600mm
Thickness of film	0.01-0.1mm
Max extrusion output	30kg/h
Screw diameter	Φ40*2
Screw L/D	28:1
Screw rotation	10-100r/min
Main motor	11KW
Dia of orifice	Φ80mm
Total power	28kw
Dimension (L*W*H)	4*2*2.8M
Weight	2.2 T

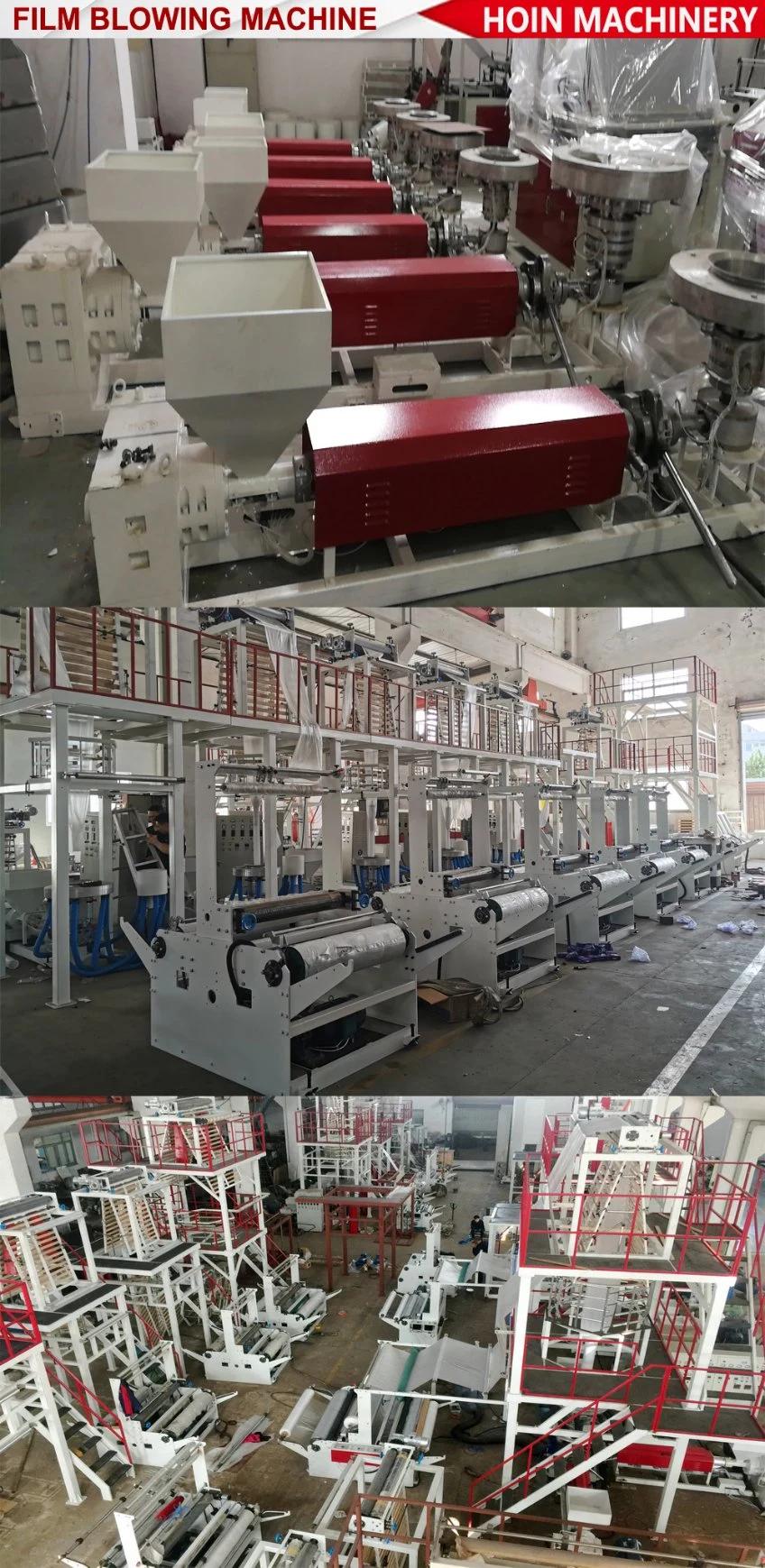

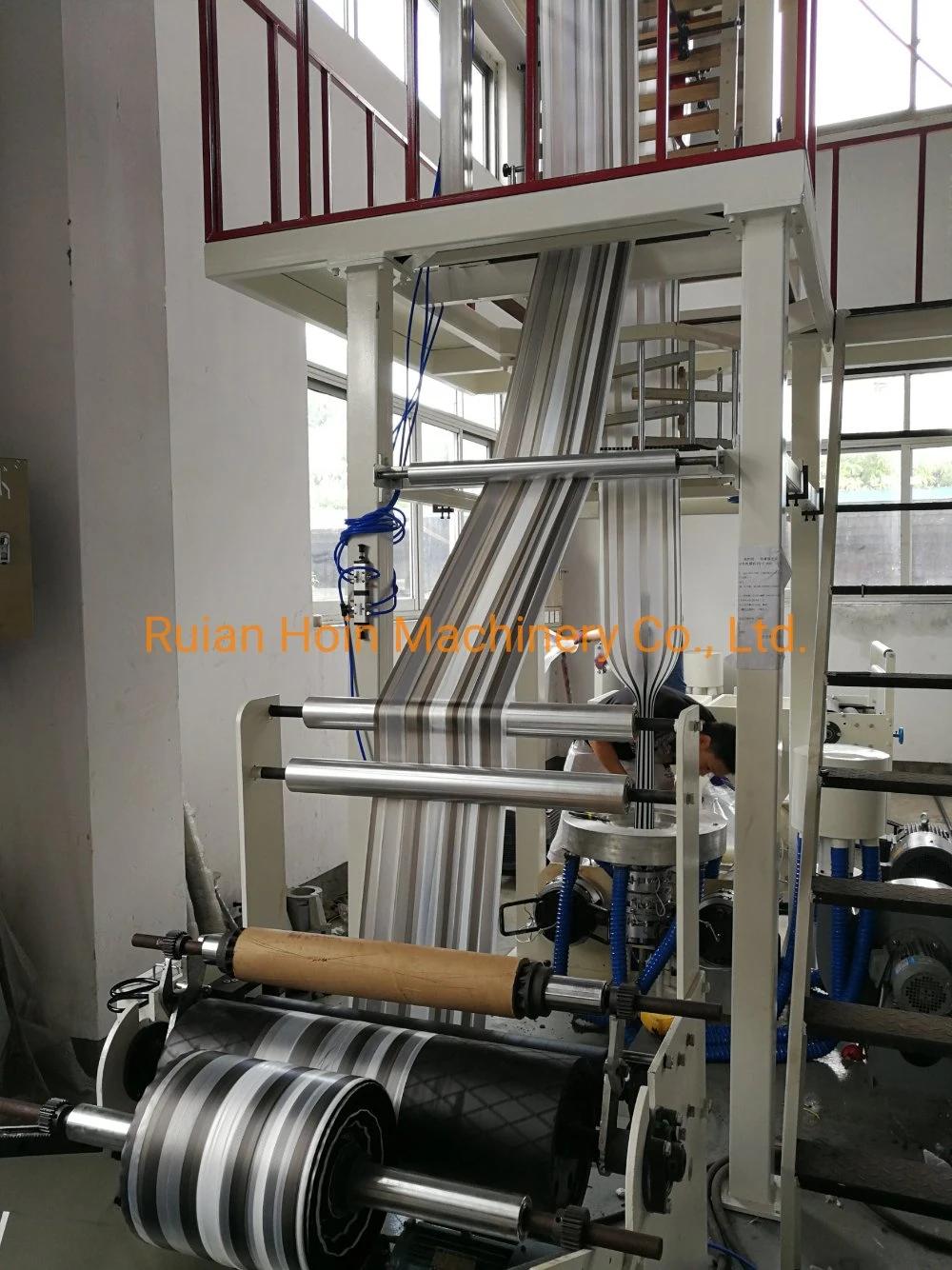

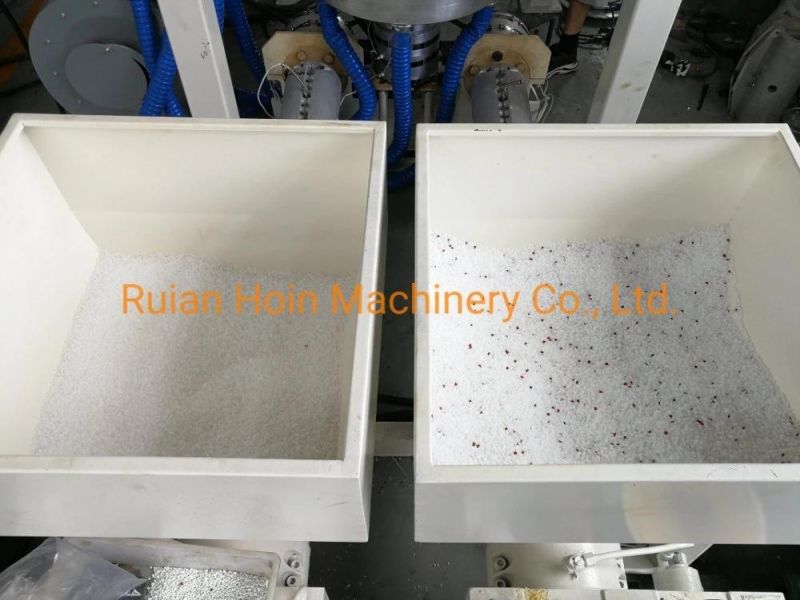

D.Machine Pictures for Reference

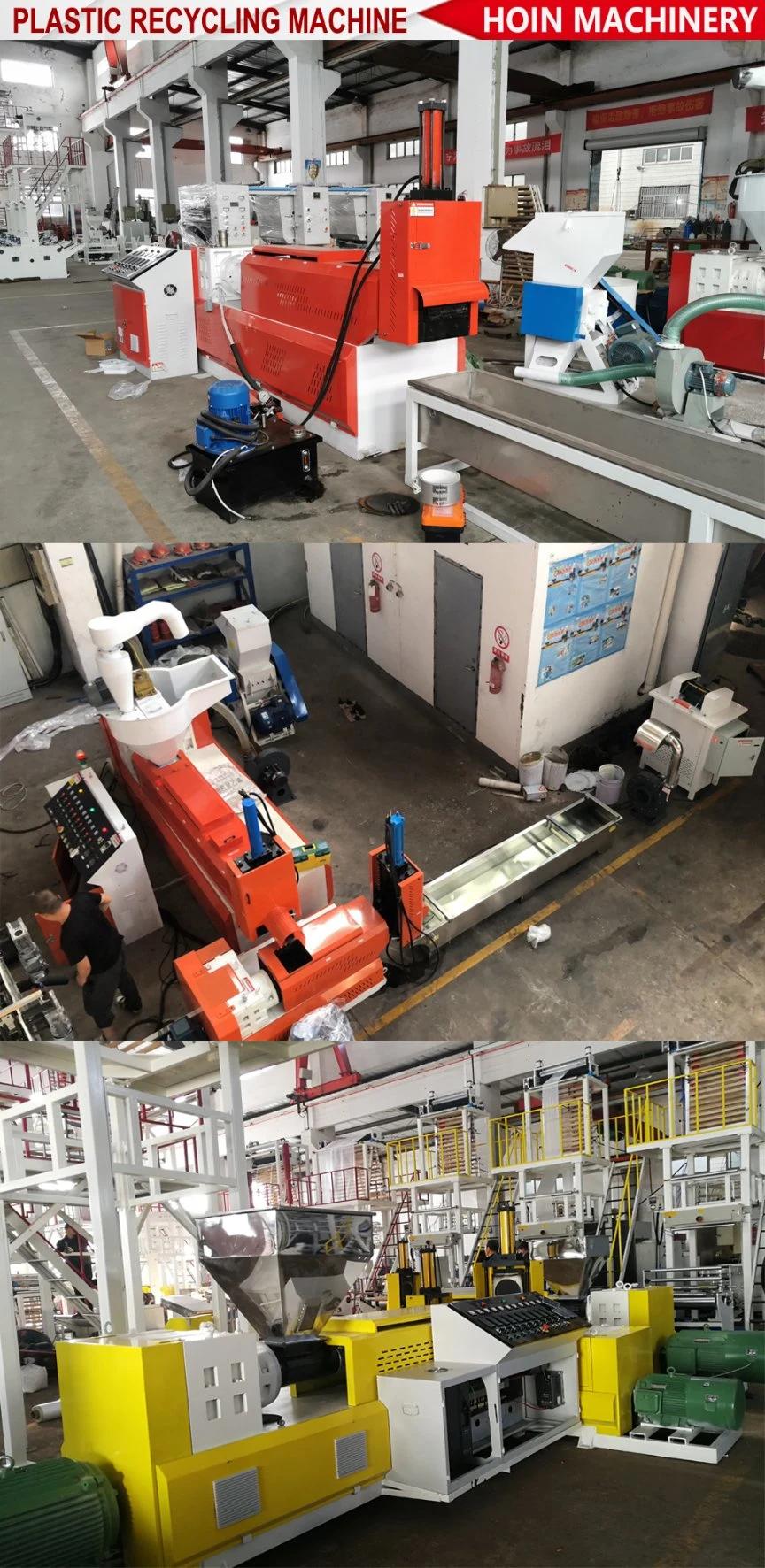

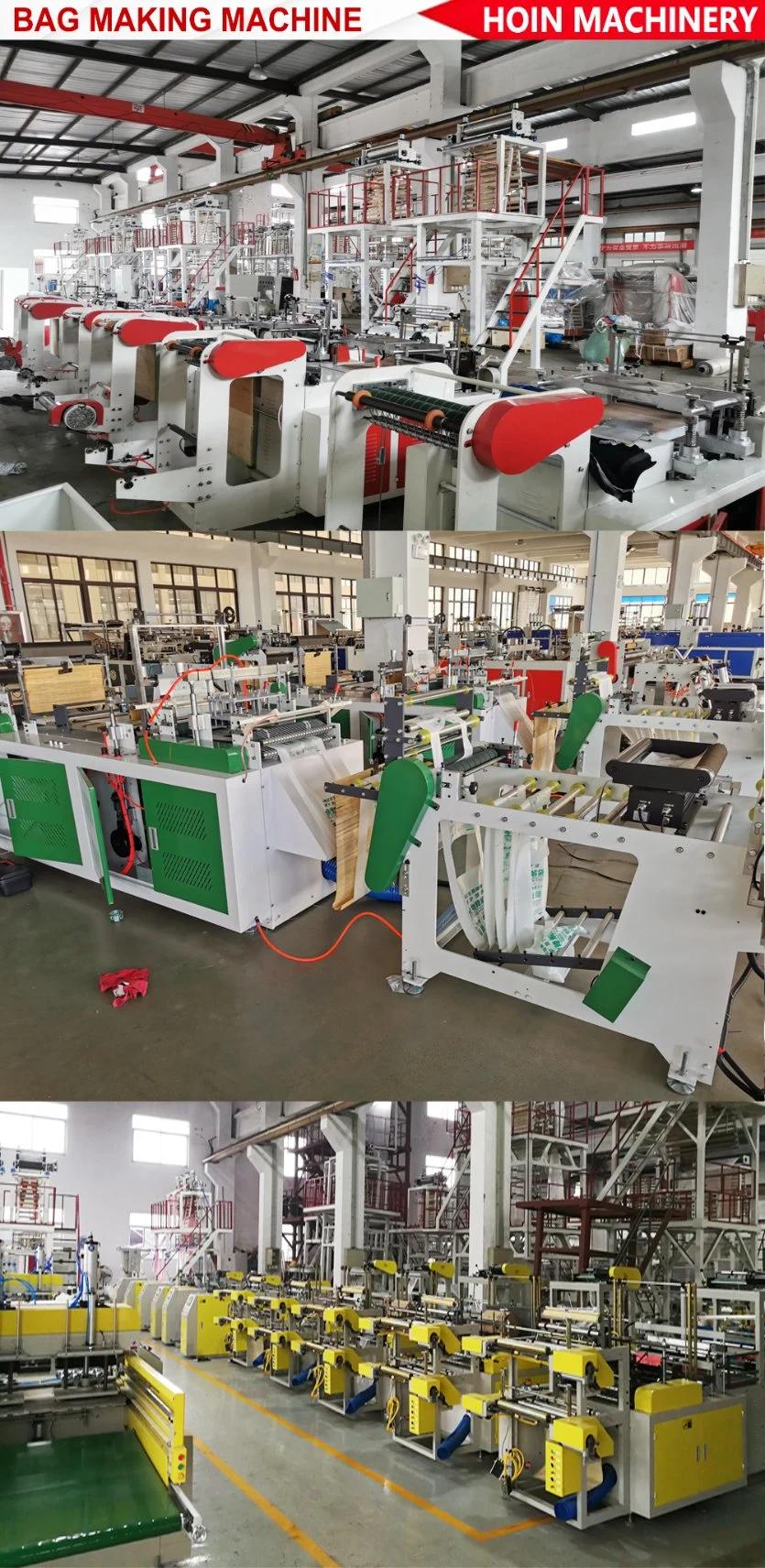

E.Workshop of HOIN

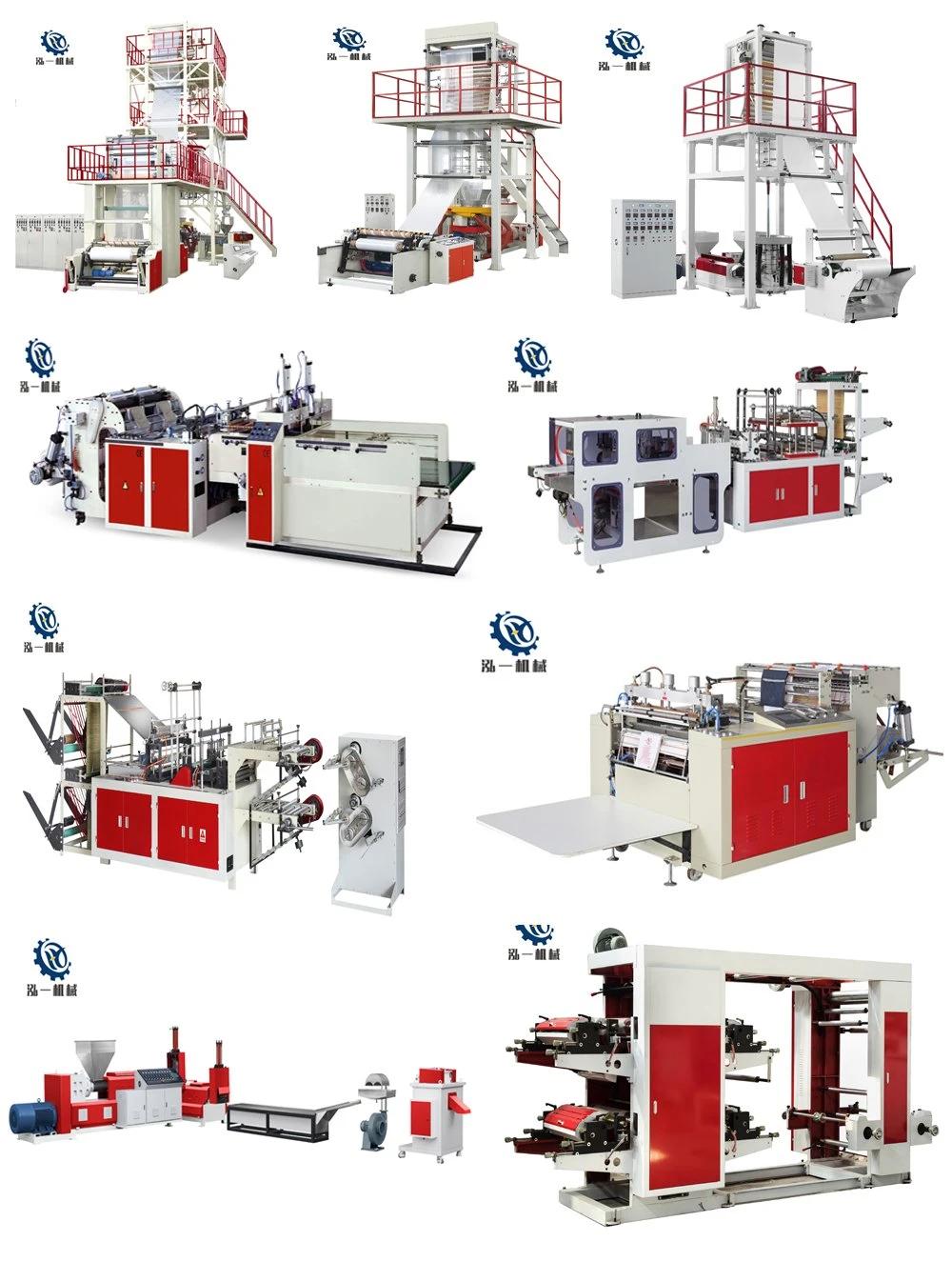

F.More Products Optional
After Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
