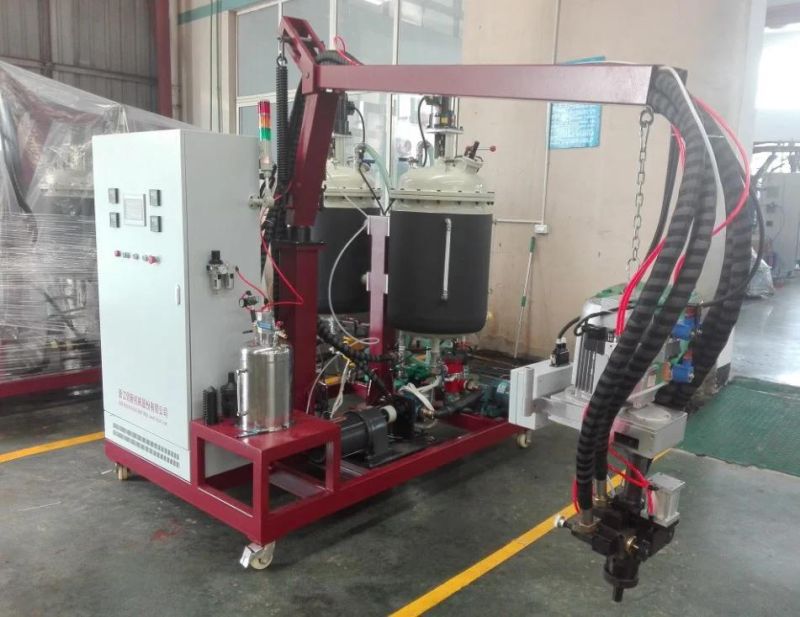

Polyurethane PU Foam Making Machine/Foaming Machine/Foam Machinery
Zhejiang Lingxin Machinery Co., Ltd.- Type：Polyurethane Foam Machine
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Transport Package：Plywood Case
- Specification：3000*1200*2300
- Origin：Mainland China
Base Info
- Model NO.：LXPU
- HS Code：8477409000
- Production Capacity：30sets,Month
Description
Mixing ratio range:100:50~150 for rigid foam making
100: 28~ 48 for flexible foam making Rated power: 8KW-12KW Dimension Micro-scale:1000(L)*1750(W)*1800(H)mm Normal:4100(L)*1250(W)*2300(H)mm Mixing head: 2800-5000rpm, forced dynamic mixing Color( customizable): Cream-colored/orange/deep sea blue Compressed air needed: dry, oil free, P:0.6-0.8MPa
Q:600NL/min(customer-owned) Weight: 600Kg-1200Kg Nitrogen requirement: P:0.05MPa
Q:600NL/min(customer-owned) Raw material viscosity(22ºC): POL ~3000CPS
ISO ~1000MPas
Application:
PU foam machine is used for the production of all kinds of polyurethane rigid foam, polyurethane semi-rigid foam, polyurethane flexible(soft) foam, and polyurethane integral skin products.
Final products Examples:
PU pillows, steering wheels, bumpers, cutification, fast rebound, slow rebound, toys, fitness equipments, thermal insulation materials, bicycle cushions, car cushions, hard foaming, refrigerator materials, medical appliances, elastomer, soles, cup mat, etc.
