High-Speed PE Film Extruder with Rotary Die Head

RUIAN YUNBANG MACHINE CO., LTD.
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：600mm
  • Screw Diameter：45mm
  • Automation：Automatic

Base Info

  • Model NO.：SJ-
  • Computerized：Computerized
  • Machine Weight：1.2 T
  • Certification：CE, ISO9001:2008
  • Capacity：55kg,H
  • Machine Size：5500mm*2800mm*4500mm
  • Film Thickness：0.008-0.12mm
  • Transport Package：Film Package
  • Specification：SGS
  • Trademark：YUNBANG
  • Origin：China
  • HS Code：8477309000
  • Production Capacity：20 Sets,Month

Description

/Model

SJ-45

SJ-50

SJ-55

Features

Raw Material

HDPE, LDPE, LLDPE; Virgin and Recycled

Film Width

400mm

600mm

800mm

Output

25Kgs

35Kgs

45Kgs

Film Thickness

0.008mm-0.15mm

Power supply

380V, 3Phase, 50Hz

Weight

1300kg

1400kg

1600kg

Dimension

Extrusion Unit

Screw&Barrel Diameter

45mm

50mm

55mm

Screw&Barrel L/D ratio

Fixed Die Head

Die Size

50/80

60/100

120/160

Heating

11KW

11KW

13KW

Blower

2.2KW

Film

Rise and Fall

Roller Length

700mm

700mm

900mm

Roller Working Way

Opened and Tightened By Air Cylinders

Take Up Motor

1.5KW

Winding Station

Winder Type

Single winding station

Rollers

700mm

700mm

900mm

Torque Motor

5N/M

Max. Winding Diameter

600mm

Control Panel

Temperature control

5 zone

Electronics

Top China Brand

Inverter Capacity

11KW/1.5KW

11KW/1.5KW

15KW/1.5KW

Optional Equipment

Hopper loader,   Corona

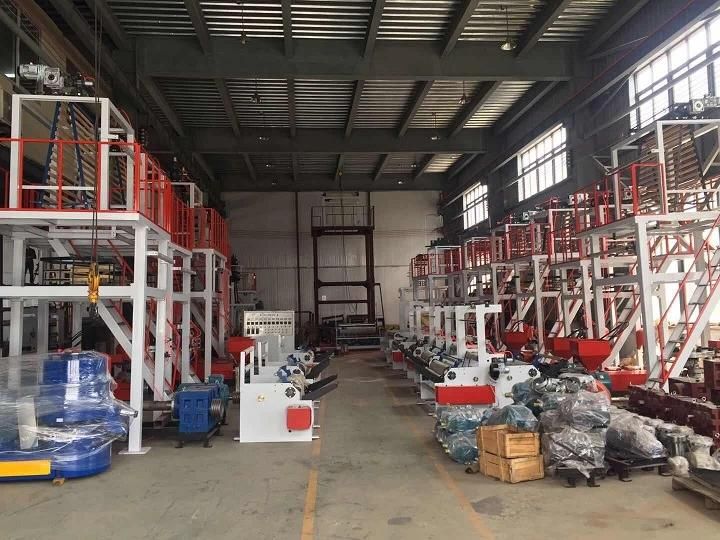

 Warehouse  Pictures:
